Key Features - Compute Intensive Application - HPC, Data Center, Enterprise Server - Hyperscale / Hyperconverged Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following: 1.Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x) 2.2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs (7001 Processors) 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required + 7002 Processors) 3.2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking) Note: must bundle with Network card 4.Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management 5.6 Hot-swap 2.5" NVMe drive bays M.2 Interface: 1 SATA/PCI-E 3.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key 6.Video via Aspeed AST2500 BMC 7.2600W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)

Key Features

– Compute Intensive Application

– HPC, Data Center, Enterprise

Server

– Hyperscale / Hyperconverged

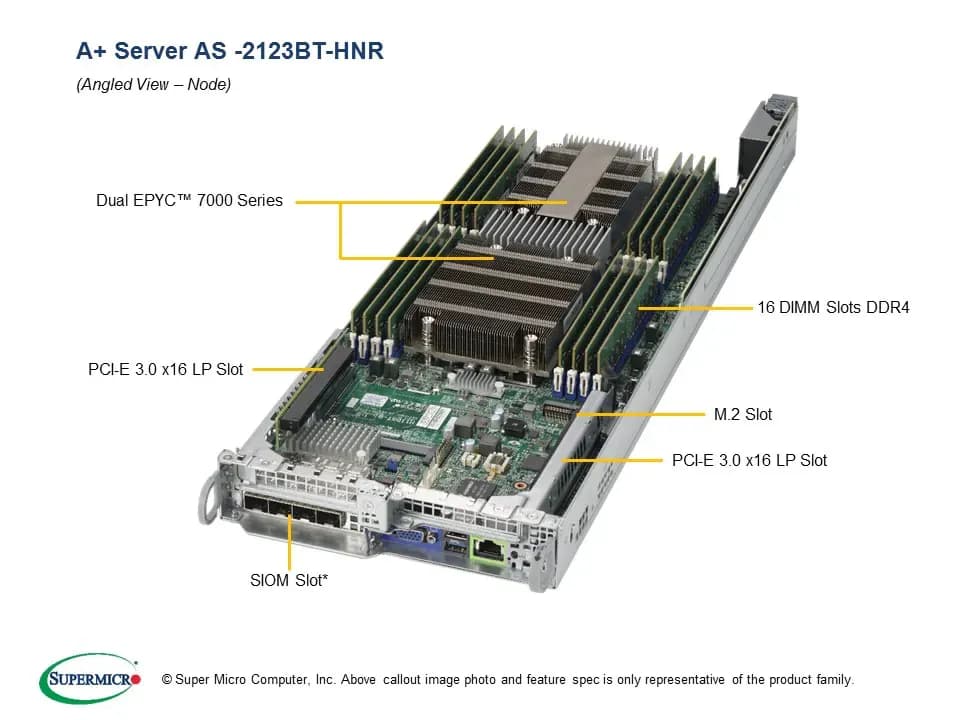

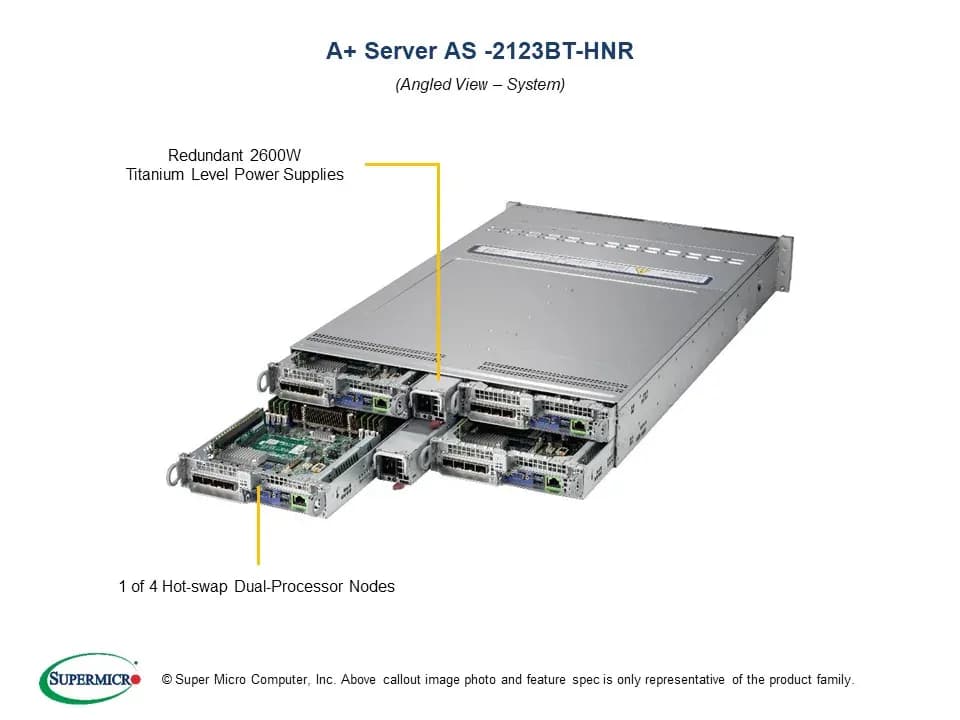

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

1.Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)

2.2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs (7001 Processors)

4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required + 7002 Processors)

3.2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking)

Note: must bundle with Network card

4.Integrated IPMI 2.0 + KVM with dedicated LAN

• Software Out of Band License

key (SFT-OOB-LIC) included

for OOB BIOS management

5.6 Hot-swap 2.5″ NVMe drive bays

M.2 Interface: 1 SATA/PCI-E 3.0 x4

M.2 Form Factor: 2280, 22110

M.2 Key: M-key

6.Video via Aspeed AST2500 BMC

7.2600W Redundant Power Supplies

Titanium Level (96%)

(Full redundancy based on configuration and application load)

Product SKUs – Discontinued SKU (EOL). Please contact sales-rep for alternative options.

AS -2123BT-HNR

A+ Server 2123BT-HNR (Black)

Motherboard (per Node)

Super H11DST-B

Processor/Chipset (per Node)

CPU

Dual AMD EPYC™ 7001/7002* series Processors

(* Board revision 2.x required)

Socket SP3

Supports CPU TDP 200W / cTDP up to 200W**

Cores

Up to 32 Cores (Board revision 1.x + 7001 Processors)

Up to 64 Cores (Board revision 2.x + 7002 Processors)

Note

** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization

System Memory (per Node)

Memory Capacity

16 DIMM slots

Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)

Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)

8-channel memory bus

For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks

Memory Type

DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)

DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)

Memory Sizes

8GB, 16GB, 32GB, 64GB, 128GB, 256GB*

(* Board revision 2.x required + 7002 processors)

Memory Voltage

1.2V

Error Detection

Corrects single-bit errors

Detects double-bit errors (using ECC memory)

On-Board Devices (per Node)

Chipset

System on Chip

Network

Must bundle with at least one SIOM network card

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Video

ASPEED AST2500 BMC

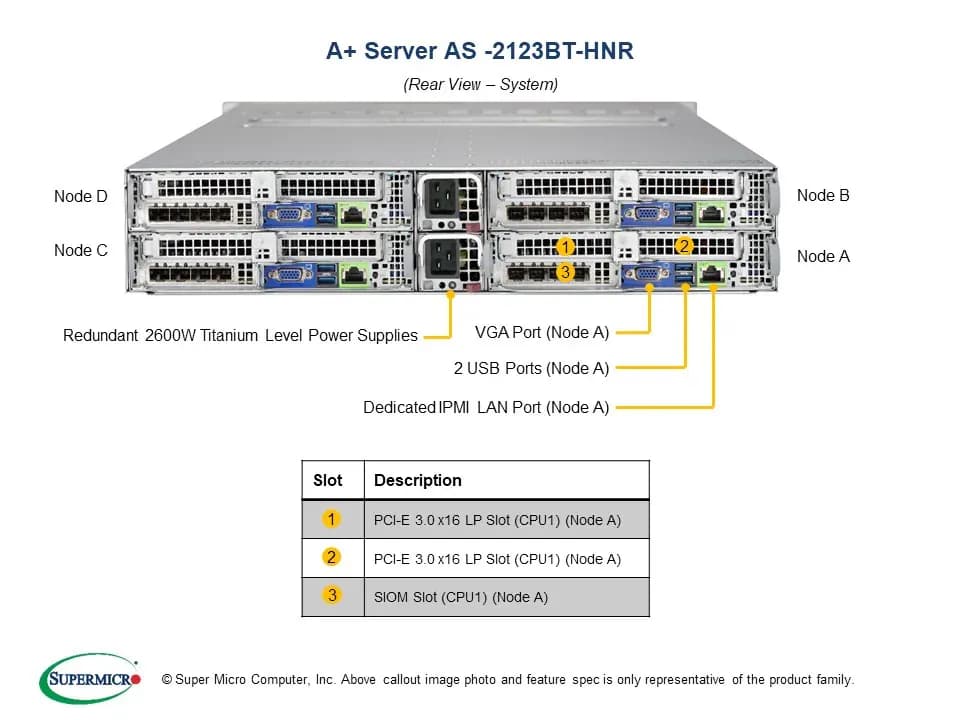

Input / Output (per Node)

LAN

Provided via SIOM (optional)

1 RJ45 Dedicated IPMI LAN port

USB

2 USB 3.0 ports (rear)

Video

1 VGA port

DOM

1 SuperDOM (Disk on Module) port

Others

1 COM port (header)

1 TPM 2.0 header

System BIOS (per Node)

BIOS Type

AMI 128Mb SPI Flash ROM

Management (per Node)

Software

IPMI 2.0

KVM with dedicated LAN

SSM, SUM

SuperDoctor® 5

Watch Dog

Power Configurations

ACPI / APM Power Management

Chassis

Form Factor

2U Rackmount

Model

CSE-217BHQ+-R2K60BP

Dimensions and Weight

Width

17.68″ (449mm)

Height

3.47″ (88mm)

Depth

28.75″ (730mm)

Package

24.33″ (618mm) H x 9.57″ (243mm) W x 45.08″ (1145mm) D

Weight

Gross Weight: 85 lbs (38.6 kg)

Net Weight: 54.5 lbs (24.7 kg)

Available Colors

Black

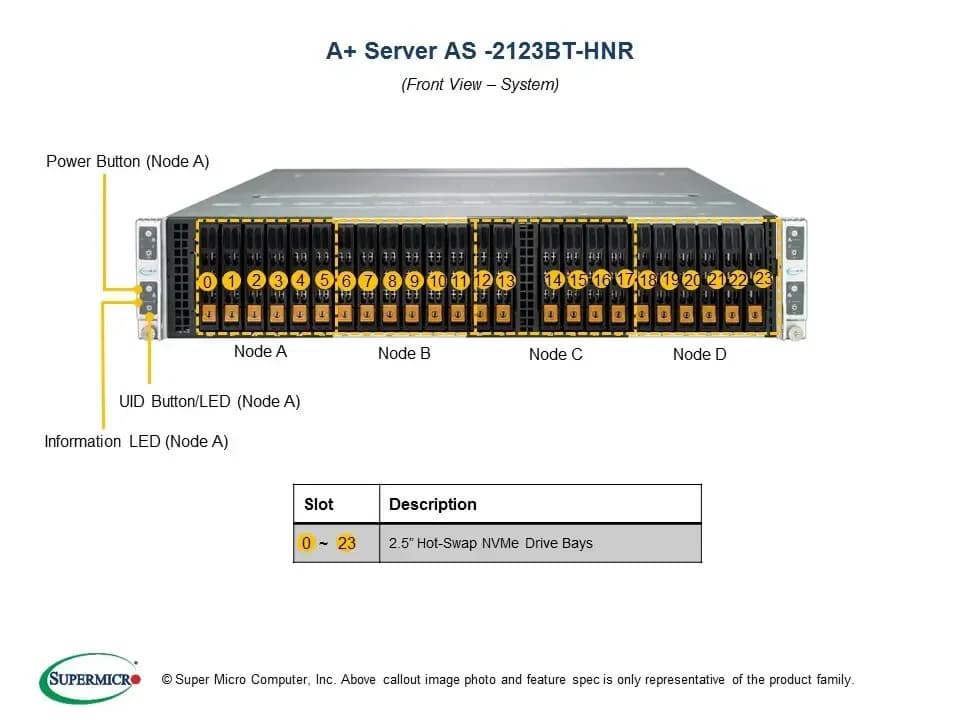

Front Panel (per Node)

Buttons

Power On/Off button

UID button

LEDs

Power status LED

HDD activity LED

Network activity LEDs

Universal Information (UID) LED

Expansion Slots (per Node)

PCI-Express

2 PCI-E 3.0 (x16) Low-profile slots

1 SIOM card support

(must bundle with network card)

M.2

Interface: 1 SATA/PCI-E 3.0 x4

Form Factor: 2280, 22110

Key: M-key

Drive Bays (per Node)

Hot-swap

6 Hot-swap 2.5″ NVMe drive bays

Note: NVMe Gen4 drives may only operate at Gen3 speed

System Cooling

Fans

4 Heavy duty 8cm PWM fans

AC/DC240V Input Redundant Power Supply

2600W Redundant Power Supplies with PMBus

Total Output Power

2600W

Dimension

(W x H x L)

45 x 40 x 480 mm

Input

208-240Vac/15-12.5A / 50-60Hz

220-240Vdc/13.5-12.5A (CQC only)

+12V

Max: 216.6A / Min: 0A

12Vsb

Max: 4.5A / Min: 0A

Output Type

Gold Finger (4HP+2LP-20S output connector)

Certification

Titanium Level

[ Cert. in progress ]

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:

10°C ~ 30°C (50°F ~ 86°F)

* Support for operating above 30°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details.

Non-operating Temperature:

-40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity:

8% to 90% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)
