Key Applications

– High Performance Computing

– AI / Deep Learning

Key Features

1.Supports AMD Instinct™ MI200 Series Accelerators with AMD Infinity™ Fabric™ GPU-GPU Interconnect, 1:1 GPU-to-NIC ratio

2.Supports MI250 OAM Accelerator with 128GB (HBM2e) and Infinity Interconnect

3.Dual AMD EPYC™ 7003 Series Processors

4.8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs

5.8 PCI-E 4.0 x16 via PLX

2 PCI-E 4.0 x16 LP via CPUs (for 5U SKU)

6.10 hot-swap 2.5″ U.2 NVMe/SATA/SAS hybrid drive bays

7.1 dedicated IPMI LAN Port

8.5 hot-swap heavy-duty cooling fans

Product SKUs

AS -4124GQ-TNMI

A+ Server 4124GQ-TNMI

Motherboard

Super H12DGQ-NT6

Processor

CPU

Dual AMD EPYC™ 7003 Series Processors

Socket SP3

Supports CPU TDP up to 280W*

Cores

Up to 128 Cores (64 cores, 128 threads per CPU)

Note

* Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization

GPU

Supported GPUs

AMD Instinct™ MI250 OAM Accelerator

CPU-GPU Interconnect

PCI-E 4.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect

AMD Infinity Fabric™

System Memory

Memory Capacity

32 DIMM slots

Up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM

Memory Type

3200MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset

System on Chip (SoC)

SATA

SATA3 (6Gbps)

Network Controllers

Provided via IO Board

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

ASPEED AST2600 BMC

Input / Output

SATA

12 SATA3 (6Gbps) ports

NVMe

10 NVMe

LAN

Via IO Board

1 RJ45 Dedicated IPMI LAN port

USB

2 USB 3.1 Gen1 ports (front)

Video

1 VGA Connector (front)

COM Port

1 COM port (header)

System BIOS

BIOS Type

AMI 256Mb SPI Flash ROM

Management

Software

IPMI 2.0

KVM with dedicated LAN

SSM, SPM, SUM

SuperDoctor® 5

Watchdog

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

4U Rackmount

Model

CSE-458GTS-R3K06P

Note

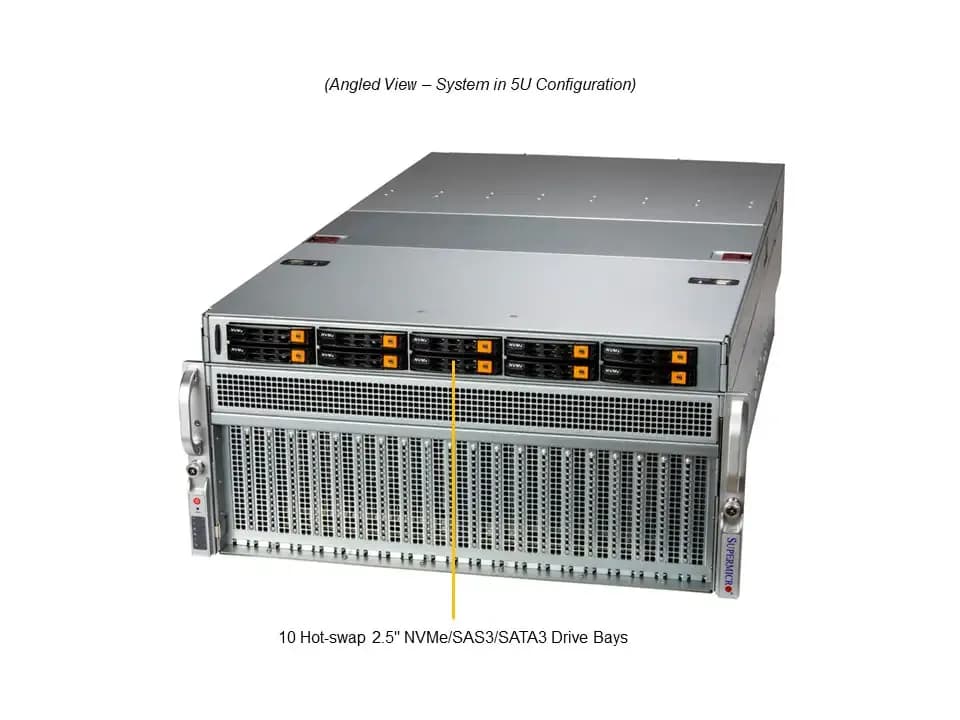

*5U with 1U height module kit.

Dimensions

Height

6.91″ (175.6mm)

Width

17.67″ (449mm)

Depth

32.79″ (833mm)

Package

14.57″ (370mm) H x 27.55″ (700mm) W x 49.60″ (1260mm) D

Weight

Net Weight: 166.0 lbs (75.3 kg)

Gross Weight: 225.0 lbs (102.1 kg)

Drive Bays / Storage

Hot-swap

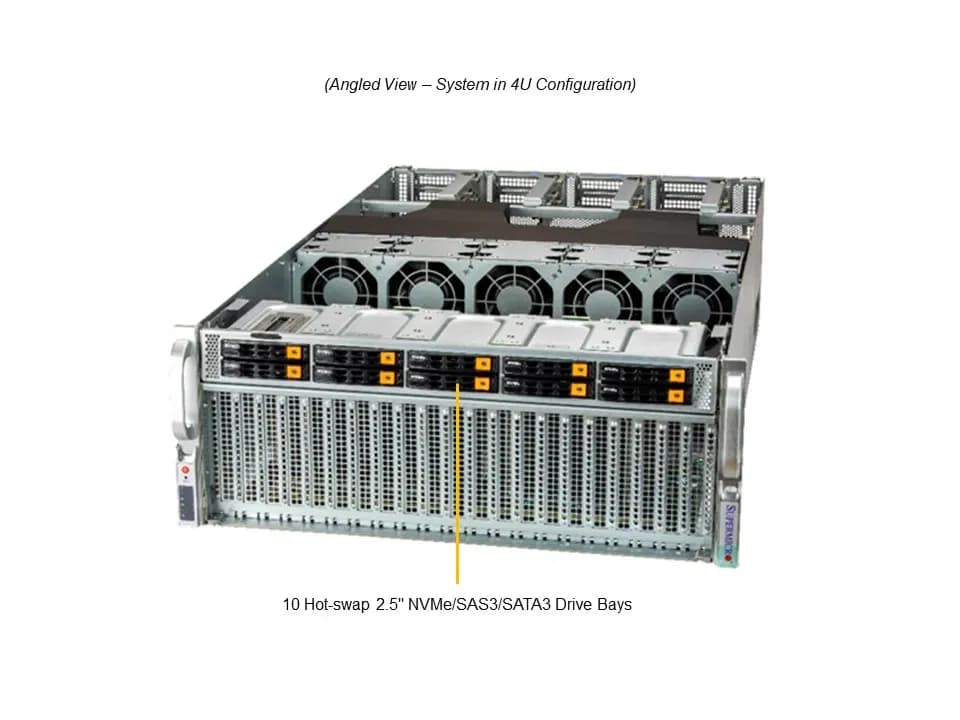

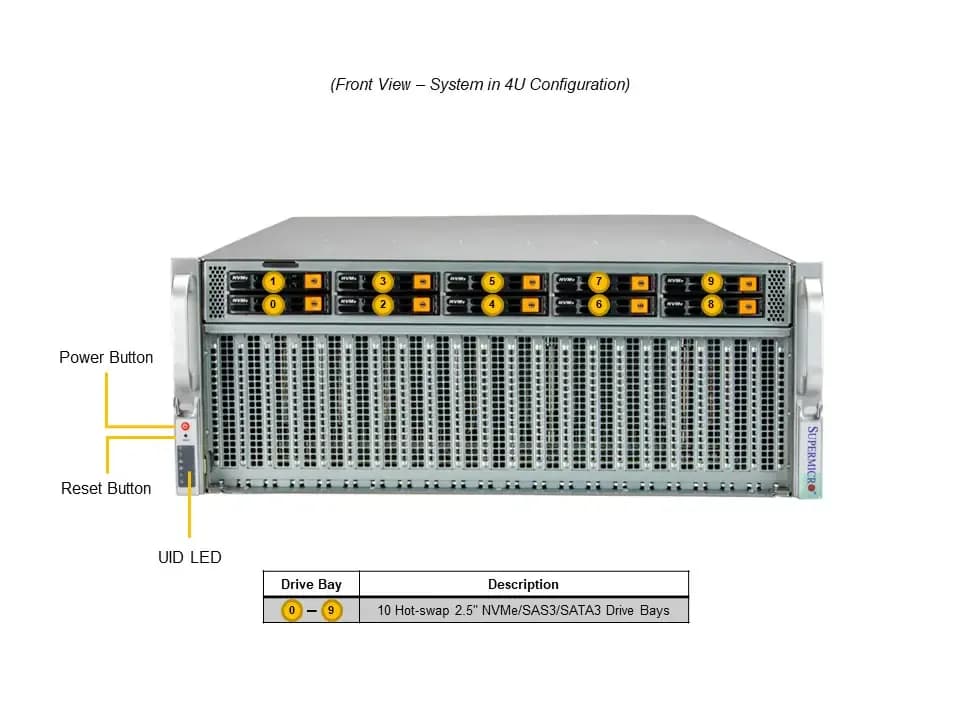

10 hot-swap 2.5″ U.2 NVMe/SATA/SAS hybrid drive bays

Expansion Slots

PCI-Express

8 PCI-E 4.0 x16 via PLX

2 PCI-E 4.0 x16 LP via CPUs (for 5U SKU)

Note

*8 PCI-E 4.0 slots in 4U. 2 additional PCI-E 4.0 slots in 5U with 1U height module kit supporting 2 AIOM cards or 2 PCI-E cards.

System Cooling

Fans

5 x hot-swap 11.5K RPM heavy duty fans

Power Supply

4x 3000W Redundant Titanium Level Power Supplies

Dimension

(W x H x L)

106.5 x 82.4 x 203.5 mm

Certification

Titanium Level

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:

10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:

-40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity:

8% to 90% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)
