Key Features Advanced I/O Module (AIOM) Form Factor Port: 2 QSFP28 ports Speed: 100Gbps Controller: Broadcom® BCM57508

Key Features

Advanced I/O Module (AIOM) Form Factor

Port: 2 QSFP28 ports

Speed: 100Gbps

Controller: Broadcom® BCM57508

Add-on Card

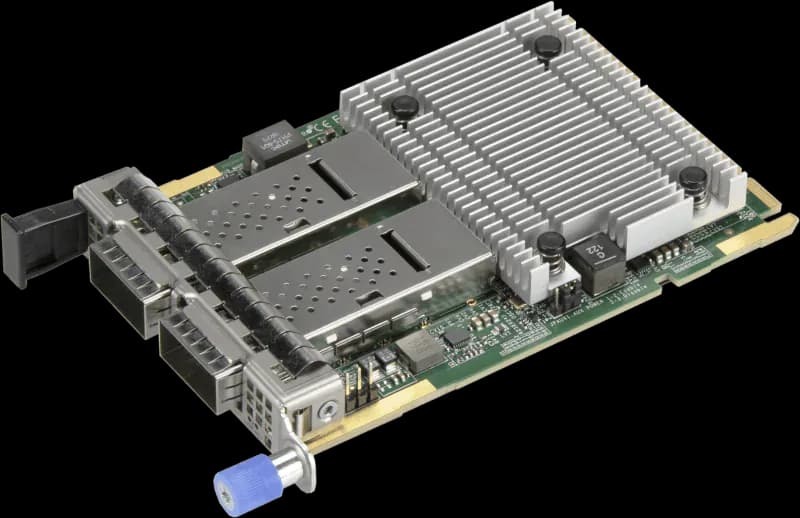

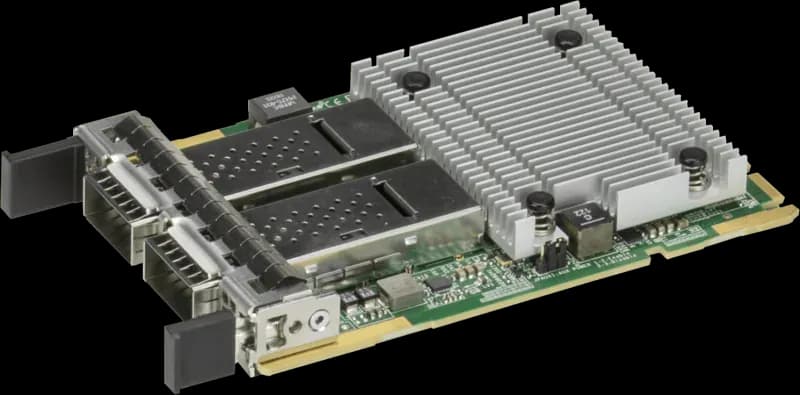

Advanced 100Gb Ethernet controller in Supermicro Advanced I/O Module (AIOM)Supermicro® Advanced I/O Modules (AIOM) are the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The AOC-A100G-b2CM/G is one of the most feature-rich and low power consumption 100GbE controllers in the market. Based on the Broadcom® BCM57508 with features such as VXLAN, NVGRE, and RoCE, it provides unparalleled density, performance, and functionality. The Supermicro® AOC-A100G-b2CM/G is the most versatile 100GbE controller in the market and an excellent choice to enhance network connectivity in Data Centers and Enterprise environments.

To order, contact your distributor. This product is only available through Supermicro.

Key Features

Advanced I/O Module (AIOM) Form Factor

Broadcom® BCM57508 100GbE controller

Support for 100GbE, 50GbE and 40GbE Speed

Dual QSFP28 connectors

RDMA over Converged Ethernet (RoCE)

VXLAN, NVGRE and Geneve

Broadcom® TruFlow™ flow processing engine

Asset Management Features with thermal sensor

NC-SI for Remote Management

Compliance

RoHS

RoHS Compliant 6/6

Downloads

User’s Guide

[ Download ]

Datasheet

[ Download ]

Driver

Choose the latest CDR-NIC folder, and then click on Broadcom folder for driver [ Download ]

Driver CD

Click on the latest CDR-NIC ISO file to download [ Download ]

Specifications

General

Advanced I/O Module (AIOM) Form Factor

Broadcom® BCM57508 100GbE controller

Dual QSFP28 ports

Networking Features

Jumbo frames (up to 9.6 KB)

IEEE 802.3x flow control

IEEE 802.3ad Link Aggregation

Virtual LANs- 802.1q VLAN tagging

Configurable Flow Acceleration

UEFI and iSCSI boot

Stateless Offload Features

TCP, UDP and IP checksum offloads

IPv4 and IPv6 offloads

Large Send Offload

Receive Segment Coalescing

TCP Segmentation Offload

Large Receive Offload

Receive Side Scaling (RSS)

Transmit Side Scaling (TSS)

Virtualization Features

NetQueue, VMQueue, and Multiqueue

SR-IOV with up to 128 Virtual Functions (VFs)

VXLAN, NVGRE, and Geneve

Edge Virtual Bridging (EVB)

RDM over Converged Ethenet (RoCE)

RoCEv1 and RoCEv2

Data Center Bridging with RoCE

Flow Processing

Exact/Wildcard Match Flow Lookup

VLAN insertion/deletion

NAT/NAPT/Mirroring

Data Center Bridging

Priority-based flow control (PFC; IEEE 802.1Qbb)

Enhanced transmission selection (ETS; IEEE 802.1Qau)

Quantized Congestion Notification (QCN; IEEE 802.1Qau)

Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz)

8 traffic classes per port; fully DCB compliant per 802.1Qbb

Power Savings

ACPI compliant power management

PCI Express Active State Power Management (ASPM)

Ultra-low-power mode

Pass-through Energy Efficient Ethernet (IEEE 802.3az-2010)

Power Consumption

Maximum 20W

Storage Conditions

Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 90% non-condensing relative humidity at 35°C

Physical Dimensions

Card PCB dimensions: 76mm x 115mm (W x D)

Please note that this product is sold only as part of an integrated solution with Supermicro server systems.
