Key Features Advanced I/O Module (AIOM) Form Factor Port: 4 SFP ports Speed: 1Gbps per port Controller: Intel® i350 GbE controller

Key Features

Advanced I/O Module (AIOM) Form Factor

Port: 4 SFP ports

Speed: 1Gbps per port

Controller: Intel® i350 GbE controller

Add-on Card

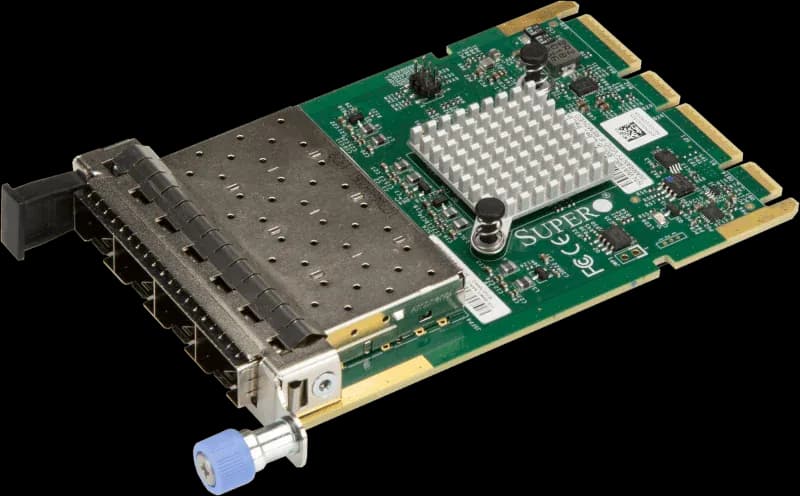

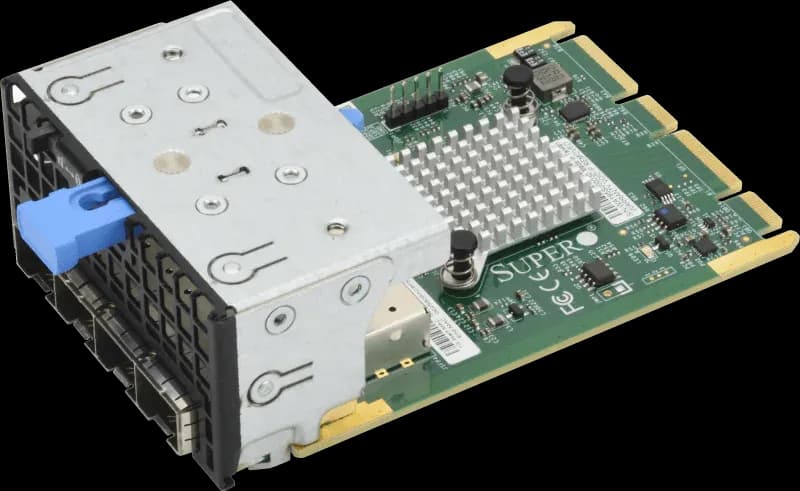

The Supermicro Advanced I/O Module (AIOM) Provides Ultimate Choice In AdaptersThe Supermicro® Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The AOC-AG-i4S is a flexible and scalable GbE controller providing 4 SFP ports. Based on Intel GbE network controller i350, the AOC-AG-i4S is designed with performance enhancing features and power management technologies.

To order, contact your distributor. This product is only available through Supermicro.

Key Features

Advanced I/O Module (AIOM) Form Factor

Intel® i350 GbE controller

4 SFP Connectors

Energy Efficient Ethernet (EEE)

Reliable and proven Gigabit Ethernet technology

Asset Management Features with

NC-SI for Remote Management

Compliance

RoHS

RoHS Compliant 6/6

Downloads

User’s Guide

[ Download ]

Datasheet

[ Download ]

Driver

Choose the latest CDR-NIC folder, and then click on Intel & folder for driver [ Download ]

Driver CD

Click on the latest CDR-NIC ISO file to download [ Download ]

Specifications

General:

Advanced I/O Module (AIOM) Form Factor

Intel® i350 GbE controller

4 SFP ports

Ethernet Features:

IEEE 802.3 auto-negotiation for speed, duplex, and flow control

IEEE 802.3x and 802.3z compliant flow control support

Automatic cross-over detection function (MDI/MDI-X)

1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant

IEEE 1588 protocol and 802.1AS implementation

Power Management and Efficiency:

Energy Efficient Ethernet (EEE)

DMA Coalescing reduces platform power consumption

Active State Power Management (ASPM) support

LAN disable function

Low Power Link Up – Link Speed Control

Virtualization Features:

PC-SIG SR-IOV support

VM to VM Packet forwarding (Packet Loopback)

Flexible Port Partitioning

IEEE 802.1q VLAN support

IEEE 802.1q advanced packet filtering

Jumbo Frames support

Performance Features:

TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage

Low Latency Interrupts

Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage

Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments

Intelligent interrupt generation

Management Features:

Preboot eXecution Environment (PXE) support

iSCSI Remote Boot Support

Asset Management support on Supermicro® platforms

NC-SI for remote management

OS Support:

Windows

RedHat Linux

SUSE Linux

FreeBSD

UEFI

VMWare

Power Consumption:

Typical 3.7W; Maximum 4.4W

Operating Conditions:

Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 90% non-condensing relative humidity at 35°C

Physical Dimensions:

Card PCB dimensions: 115mm (4.528in) x 76mm (2.992in) (D x W)

Please note that this product is sold only as part of an integrated solution with Supermicro server systems.
