Key Applications Computer Vision Natural Language Processing Recommendation Purpose Built for AI/Deep Learning Training Key Features Dual Intel® Xeon® 3rd Gen Scalable Processors (Ice Lake) TDP up to 270W Intel® C621A Chipset 32x DIMM slots, up to 8TB Registered ECC DDR4 3200MHz SDRAM 2x PCIe 4.0 x16 FHFL slot and 2x PCIe 4.0 x8 FHFL slot 6x 400GbE QSFP-DD for scale-out and 1x 1GbE BaseT (dedicated IPMI port) 4x 2.5”NVMe Hot-Swap Drive Bays Up to 8x 2.5" SATA Hot-Swap Drive Bays Up to 16x 2.5" SATA Hot-Swap Drive Bays (Additional SAOC is required) 12x Removable Heavy-Duty FANs (Includes 2x Dummy PSU FAN) 6x 3000W(54V+12V) Redundant Power Supplies, Titanium Level

Key Applications

Computer Vision

Natural Language Processing

Recommendation

Purpose Built for AI/Deep Learning Training

Key Features

Dual Intel® Xeon® 3rd Gen Scalable Processors (Ice Lake) TDP up to 270W

Intel® C621A Chipset

32x DIMM slots, up to 8TB Registered ECC DDR4 3200MHz SDRAM

2x PCIe 4.0 x16 FHFL slot and 2x PCIe 4.0 x8 FHFL slot

6x 400GbE QSFP-DD for scale-out and 1x 1GbE BaseT (dedicated IPMI port)

4x 2.5”NVMe Hot-Swap Drive Bays

Up to 8x 2.5″ SATA Hot-Swap Drive Bays

Up to 16x 2.5″ SATA Hot-Swap Drive Bays (Additional SAOC is required)

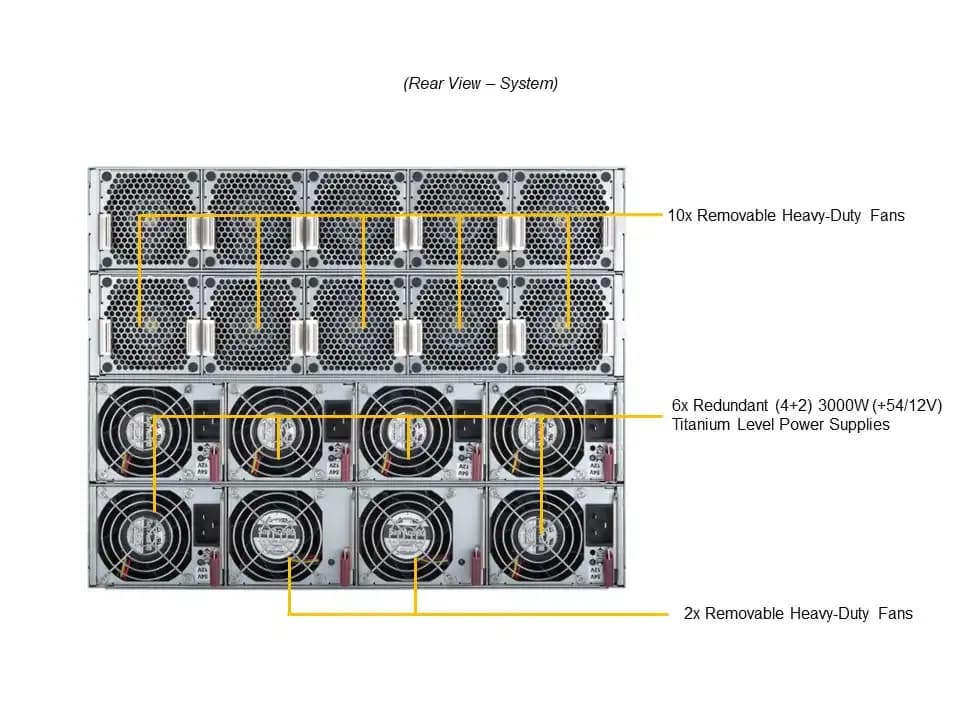

12x Removable Heavy-Duty FANs (Includes 2x Dummy PSU FAN)

6x 3000W(54V+12V) Redundant Power Supplies, Titanium Level

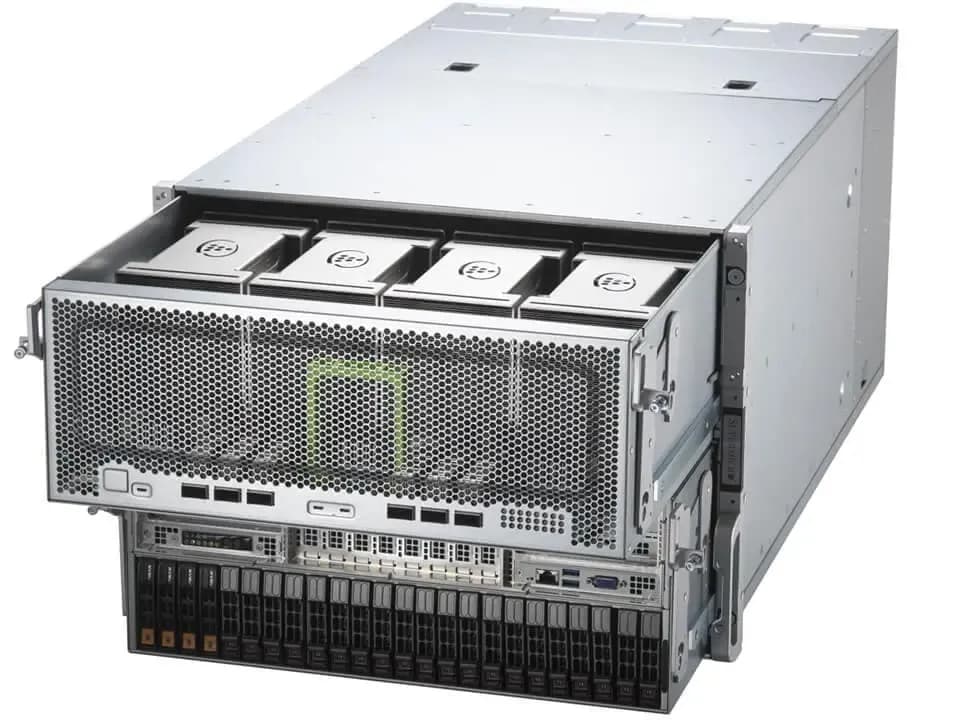

Product SKUs

SuperServer SYS-820GH-TNR2

Motherboard

Super X12DPG-OA6-GD2

Processor

CPU

Dual Socket P+ (LG-4189)

3rd Gen Intel® Xeon® Scalable Processors

Core Count

Up to 40C/80T; Up to 60MB Cache per CPU

Note

Supports up to 270W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 8 double-width GPU(s)

Supported GPU

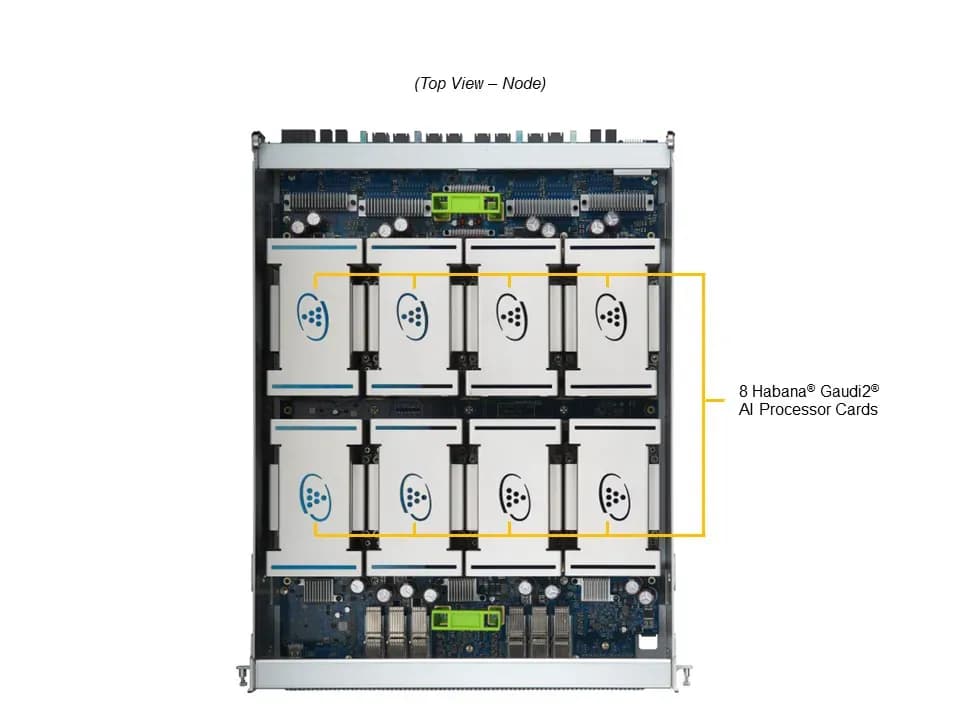

Intel OAM: Gaudi 2

View GPU Options

CPU-GPU Interconnect

PCIe Gen4 x16

GPU-GPU Interconnect

21x 100GbE PAM4 SerDes Links

System Memory

Memory

Slot Count: 32 DIMM slots

Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage

1.2V

On-Board Devices

Chipset

Intel® C621A

Network Connectivity

6 QSFP-DD 400GbE

1 RJ45 1GbE

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE LAN port(s)

USB

2 USB 3.0 port(s)

Video

1 VGA port(s)

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

7+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

8U Rackmount

Model

CSE-GP802TS-R000NP

Dimensions and Weight

Height

14″ (356 mm)

Width

17.6″ (447 mm)

Depth

31.5″ (800 mm)

Package

26.8″ (H) x 40″ (W) x 55.2″ (D)

Weight

Gross Weight: 282 lbs (128 kg)

Available Color

Silver

Front Panel

LED

HDD Information LED

Information LED

Power Failed LED

Power On LED

PSU Failed LED

Buttons

Power On/Off button

Reset button

Expansion Slots

PCI-Express (PCIe) Configuration

Default

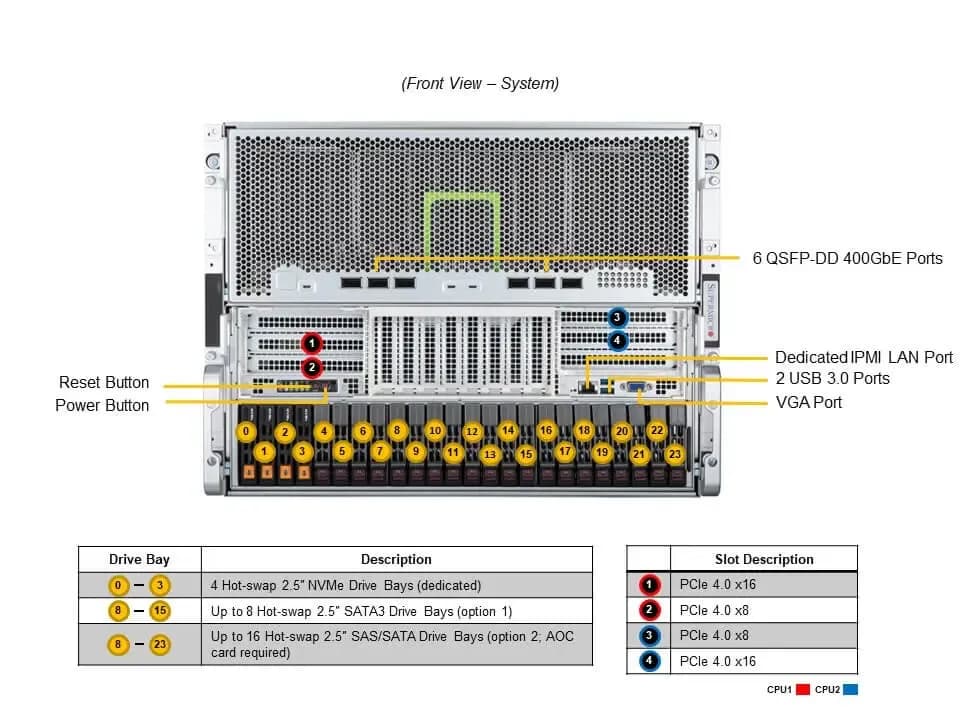

2 PCIe 4.0 x16 FHFL slot(s)

2 PCIe 4.0 x8 FHFL slot(s)

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

Default: Total 12 bay(s)

4 front hot-swap 2.5″ NVMe drive bay(s)

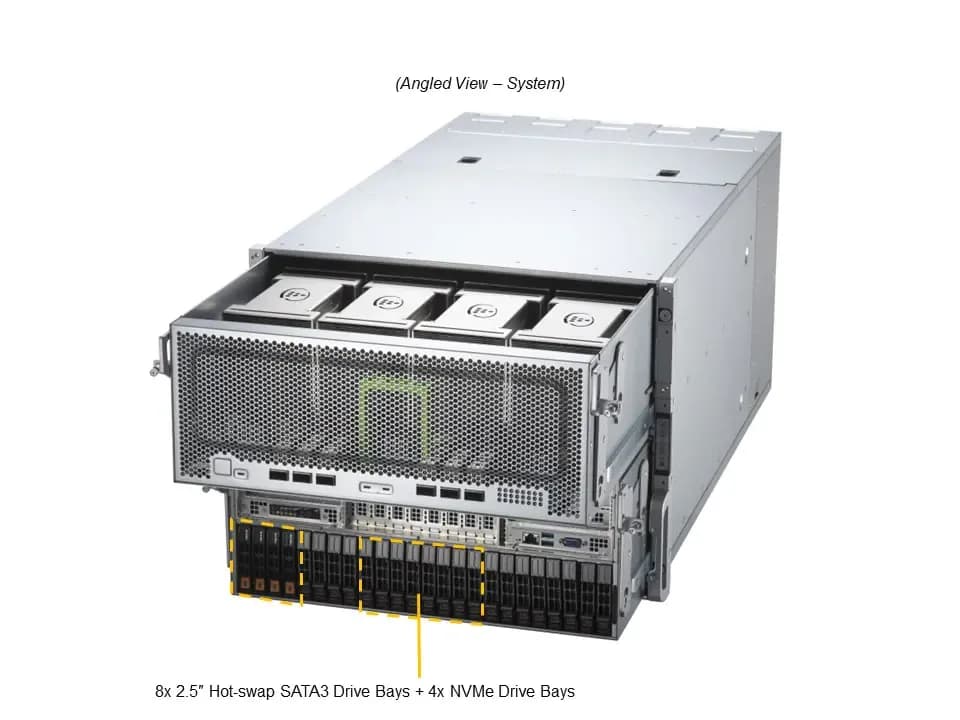

8 front hot-swap 2.5″ SATA drive bay(s)

Option A: Total 20 bay(s)

4 front hot-swap 2.5″ NVMe drive bay(s)

16 front hot-swap 2.5″ SATA* drive bay(s)

(*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

View Drive Options

M.2

2 M.2 NVMe/SATA slot(s) (M-key)

View M.2 Options

System Cooling

Fans

2 Removable Heavy-Duty 106.5 x 203.5 x 82.4mm Fan(s)

10 Removable Heavy-Duty 80 x 80 x 80mm Fan(s)

Power Supply

6x 3000W Redundant Titanium Level (96%) power supplies

Dimension (WxHxL)

106.5 x 82.4 x 203.5 mm

AC Input

2880W: 200-207Vac / 50-60Hz

3000W: 207.1-240Vac / 50-60Hz

3000W: 240Vdc / 50-60Hz

+12V

Max: 91.66A / Min: 0A (200Vac-240Vac)

Max: 91.66A / Min: 0A (Vdc-240Vdc)

12V SB

Max: 4A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)

Operating Relative Humidity: 8% to 80% (non-condensing)

Non-operating Relative Humidity: 8% to 90% (non-condensing)
