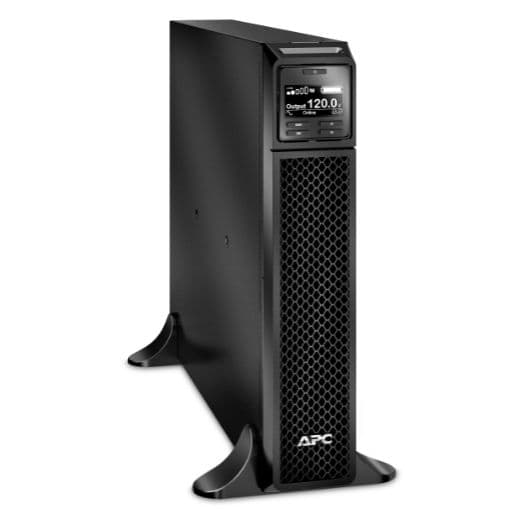

High density, double-conversion on-line power protection with scalable runtime Includes: CD with software, Communication cable, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Communication cable, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card

Output

Max Configurable Power (Watts)

900 Watts / 1.0kVA

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Built-in bypass

Input

Input frequency

40 – 70 Hz Auto-sensing

Input voltage range for main operations

50 – 150 40% load, 80 – 150V

Number of Power Cords

1

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Nominal Battery Voltage

48 V

Replacement Battery

APCRBC155

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

102 Watts

Extendable Run Time

1

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

RJ-45 Serial, Smart-Slot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

432Joules

Physical

Maximum Height

432MM, 43.2CM

Maximum Width

85MM, 8.5CM

Maximum Depth

508MM, 50.8CM

Net Weight

22.0KG

Shipping weight

29.6KG

Shipping Height

246MM, 24.6CM

Shipping Width

594MM, 59.4CM

Shipping Depth

749MM, 74.9CM

Color

Black

Units per Pallet

12.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3048meters

Storage Temperature

-20 – 50 °C

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

50.0dBA

Online thermal dissipation

317.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CSA C22.2 No 107.3-05, ENERGY STAR V2.0 (USA), FCC part 15 class A, UL 1778

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant

Proposition 65 Warning

Available in Documentation tab
