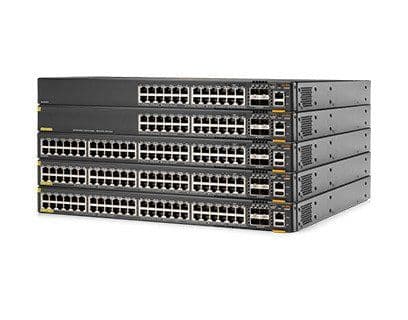

Next-gen access switches for distributed enterprises and SMBs

PERFORMANCE

System Switching Capacity: 176 Gbps

System Throughput Capacity: Up to 130.9 Mpps

Stack Size: 8 member

Max. Stacking Distance: Up to 10 kms with long range transceivers

MODELS

Aruba 6200F 24G 4SFP+ Switch (JL724A)

24x ports 10/100/1000BaseT ports

4x 1/10G SFP+ ports

Internal (fixed) power supply (200W – 80plus Silver), fixed fans

Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)

Weight: 4.36 kg (9.61 lbs)

Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch (JL725A)

24x ports 10/100/1000BaseT ports

4x 1/10G SFP+ ports

Internal (fixed) power supply (500W), fixed fans

Up to 370W of Class 4 PoE

Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)

Weight: 4.90 kg (10.80 lbs)

Aruba 6200F 48G 4SFP+ Switch (JL726A)

8x ports 10/100/1000BaseT ports

4x 1/10G SFP+ ports

Internal (fixed) power supply (200W – 80plus Silver), fixed fans

Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)

Weight: 4.45 kg (9.81 lbs)

Aruba 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A)

48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port

4x 1/10G SFP+ ports

Internal (fixed) power supply (500W), fixed fans

Up to 370W of Class 4 PoE

Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)

Weight: 5.05 kg (11.13 lbs)

Aruba 6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728A)

48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port

4x 1/10G SFP+ ports

Internal (fixed) power supply (950W – 80plus Gold), fixed fans

Up to 740W of Class 4 PoE

Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)

Weight: 5.10 kg (11.24 lbs)

MANAGEMENT PORTS

1x USB-C Console Port

1x OOBM port

1x USB Type-A Host port

1x Bluetooth dongle to be used with Aruba CX Mobile App

POE POWER

740W of Class 4: JL728A

370W of Class 4: JL725A, JL727A

MOUNTING

Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.

ENVIRONMENTAL

Operating temperature: 32°F to 113°F (0°C to 45°C) up to 5,000 ft. Derate -1°C degree C for every 1,000 ft. from 5,000 ft. to 10,000 ft.

Operating Relative Humidity: 15% to 95% @ 104°F (40°C) noncondensing

Non-Operating: -40°F to 158°F (-40°C to 70°C) up to 15,000 ft.

Non-Operating Storage relative humidity: 15% to 90% @ 149°F (65°C) noncondensing

Max. Operating Altitude: 10,000 feet (3.04 km)

Max Non-operating Altitude: 15,000 feet (4.6 km)

Acoustics:

Sound Power (LWAd) range: 4.9 – 5.3 Bel

Sound Pressure (LpAm) (Bystander) range: 32.5 – 37.1 dB

Primary airflow: Front and side to back

ELECTRICAL CHARACTERISTICS

Frequency range: 50-60 Hz

AC Voltage: 100-240 volts

Maximum current range: 1.4A – 11A

SAFETY

EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013; EN 62368-1:2014 +A11:2017

UL 60950-1 2nd Ed.

CAN/CSA 22.2 No 60950-1-07

IEC 60950-1:2005 (w/all know national deviations); IEC 62368-1:2014 2nd Ed.

CNS-14336-1

EMISSIONS

EN 55032:2015 +AC:2016, Class A

EN 55024:2010

EN 55035:2017

EN 61000-3-2:2014

EN 61000-3-3:2013

FCC 47 CFR part 15B Class A

ICES-003 Class A

VCCI Class A

CISPR 32 Ed 2.0: 2015 + COR1:2016, Class A

CISPR 24:2010

CISPR 35:2016

IMMUNITY

Generic: CISPR 35

EN: EN 55035:2017

ESD: IEC 61000-4-2

Radiated Immunity: IEC 61000-4-3

EFT/Burst: IEC 61000-4-4

Surge IEC 61000-4-5

Conducted Immunity: IEC 61000-4-6

Power frequency magnetic field: IEC 61000-4-8

Voltage dips and interruptions: IEC 61000-4-11

Harmonics: IEC/EN 61000-3-2

Flicker: IEC/EN 61000-3-3
