Key Applications

All-Flash NVMe Hyperconverged Infrastructure

Container-as-a-Service; Application Accelerator

High-Performance File System

Diskless HPC Clusters

Key Features

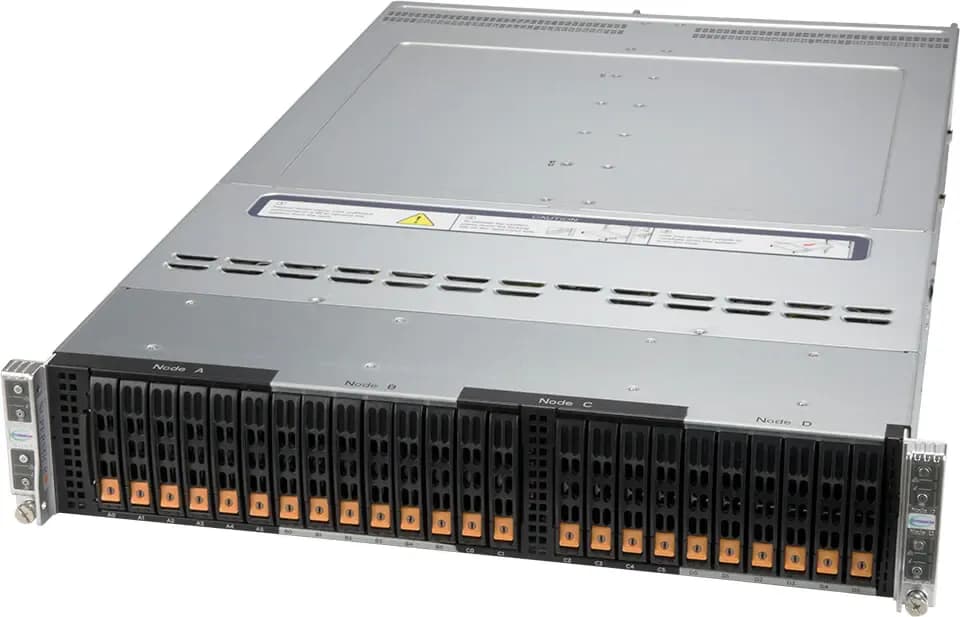

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors

Intel® C621A

20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)

2 PCIe 4.0 x16 (LP) slot;

Tool-less support

Optional HW RAID Boot Controller via AOC-SMG3-2M2-B (NVMe Only)

Internal PCIe 3.0 for 2 x4 M.2 NVMe/SATA support onboard

Network connectivity via AIOM (OCP 3.0 compliant)

6 Hot-swap 2.5″ drive bays; 6 PCIe 4.0 NVMe/SATA 2.5″ drives

4 cooling fans per 2U enclosure, 16.5K RPM; Shared Cooling Design

2600W Redundant Power Supplies Titanium Level (96%+); Shared Power Design

Product SKUs

SuperServer SYS-220BT-HNTR

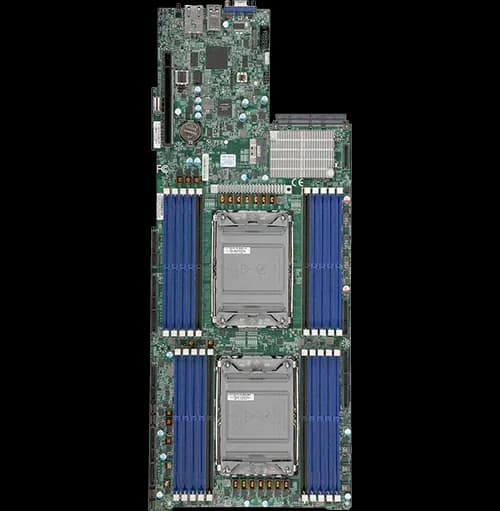

Motherboard

Super X12DPT-B6

Processor (per Node)

CPU

Dual Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Core Count

Up to 36C/72T; Up to 54MB Cache per CPU

Note

Supports up to 205W TDP CPUs (Air Cooled)

GPU (per Node)

Max GPU Count

Up to 2 onboard GPU(s)

Supported GPU

NVIDIA PCIe: A2

View GPU Options

CPU-GPU Interconnect

PCIe 4.0 x16 CPU-to-GPU Interconnect

System Memory (per Node)

Memory

Slot Count: 16 DIMM slots

Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM

Supports Intel® Optane™ persistent memory 200 series

View Memory Options

On-Board Devices (per Node)

Chipset

Intel® C621A

Network Connectivity

Via AIOM

View AIOM Options

View AOC Options

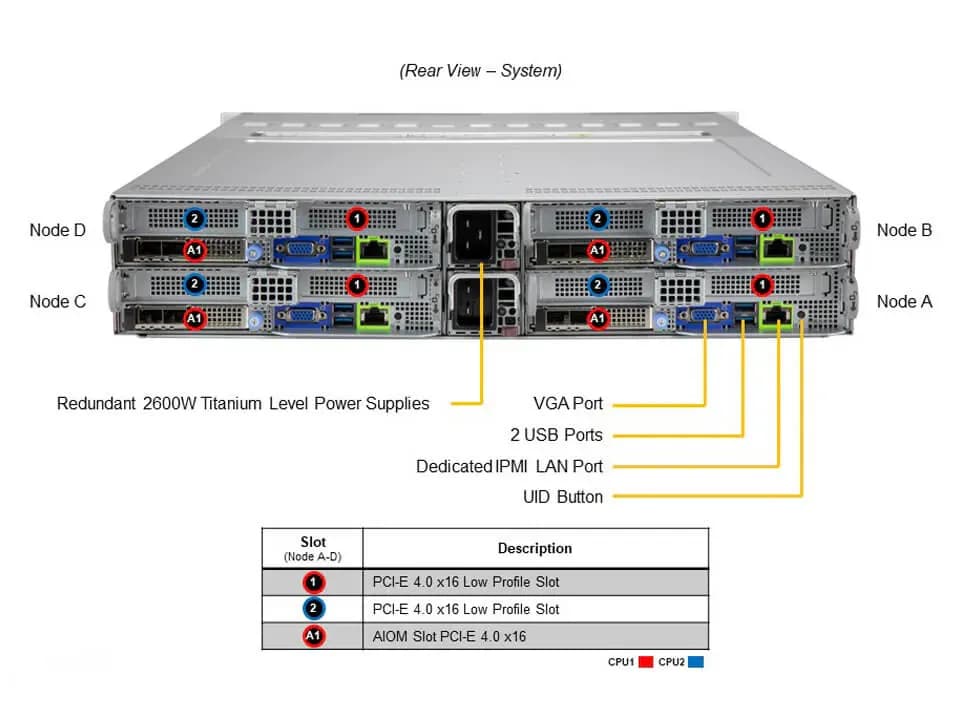

Input / Output (per Node)

LAN

1 RJ45 1 GbE Dedicated BMC LAN port(s)

USB

2 USB 3.0 Type-A port(s) (Rear)

Video

1 VGA port(s)

System BIOS

BIOS Type

AMI 32MB Flash ROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

ACPI/APM Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

System Lockdown

PC Health Monitoring

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

CPU

Monitors for CPU Cores, Chipset Voltages, Memory.

7+1 Phase-switching voltage regulator

Chassis

Form Factor

2U Rackmount

Model

CSE-217BQ-000NP

Dimensions and Weight

Height

3.47″ (88 mm)

Width

17.68″ (449 mm)

Depth

28.75″ (730 mm)

Package

9.76″ (H) x 24.65″ (W) x 45.28″ (D)

Weight

Gross Weight: 96.6 lbs (43.8 kg)

Net Weight: 66.1 lbs (30 kg)

Available Color

Black front & silver body

Front Panel

LED

HDD activity LED

Network activity LEDs

Power status LED

Universal Information (UID) LED

Buttons

Power On/Off button

UID button

Expansion Slots (per Node)

PCI-Express (PCIe) Configuration

Default

2 PCIe 4.0 x16 LP slot(s)

View AOC Options

Drive Bays / Storage (per Node)

Drive Bays Configuration

Default: Total 6 bay(s)

6 front hot-swap 2.5″ PCIe 4.0 NVMe/SATA drive bay(s)

View Drive Options

M.2

2 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280(default); VROC required for RAID)

View M.2 Options

System Cooling

Fans

4x 16.5K RPM Heavy Duty 8cm Fan(s)

Power Supply

1x 2600W Redundant Titanium Level (96%) power supply

Dimension (WxHxL)

45 x 40 x 480 mm

AC Input

2600W: 208-240Vac / 50-60Hz

2600W: 220-240Vdc / 50-60Hz (for CQC only)

+12V

Max: 216.6A / Min: 0A (208Vac-240Vac)

Max: 216.6A

12V SB

Max: 4.5A / Min: 0A

Output Type

Backplanes (connector)

Operating Environment

ROHS

RoHS Compliant

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (Non-Condensing)

Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
