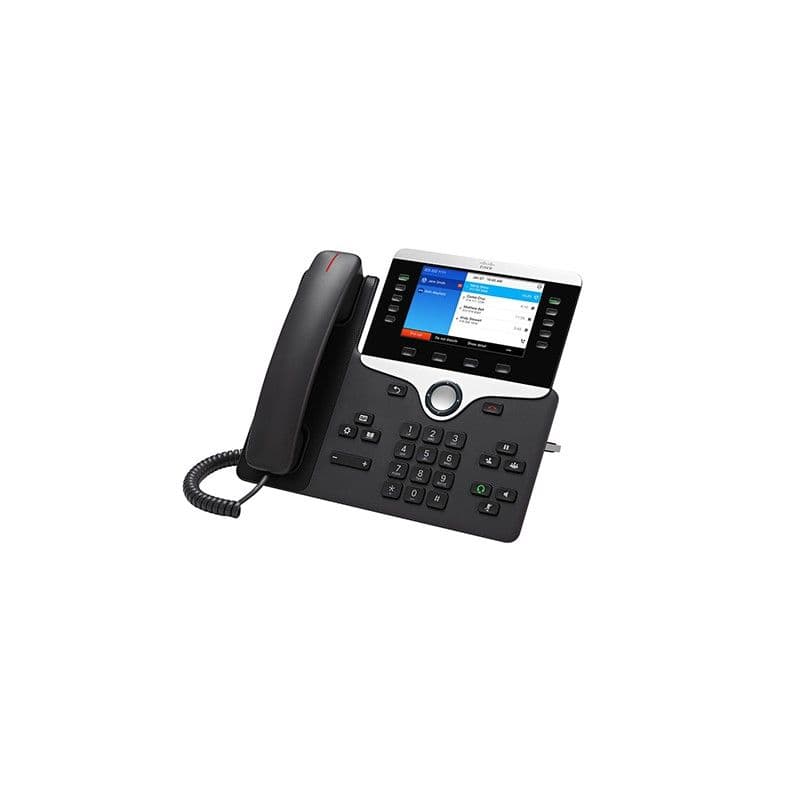

Cisco IP Phone 8861 shipped with multiplatform phone firmware, for remote configuration

CP-8861-3PC-RC-K9 Specification

CP-8861-3PC-RC-K9 Specification

Audio codec support

G.711 a-law and mu-law, G.722, G.729a, Internet Low Bitrate Codec (iLBC), and Internet Speech Audio Codec (iSAC)

Key call features support

+ Dialing

Abbreviated dialing

Adjustable ring tones and volume levels

Adjustable display brightness

Agent greeting

Auto-answer

Auto-detection of headset

cBarge

Busy Lamp Field (BLF)

Busy Lamp Field (BLF) Pickup

Busy Lamp Field (BLF) speed dial

Callback

Call forward

Call forward notification

Call filter

Call history lists

Call park

Call pickup

Call timer

Call waiting

Call chaperone

Caller ID

Corporate directory

Conference, including traditional Join feature

Cross Cluster Extension Mobility (EMCC)

Direct transfer

Extension mobility

Fast-dial service

Forced access codes and client matter codes

Group call pickup

Hold

Intercom

Immediate divert

Malicious-caller ID

Message-waiting indicator (MWI)

Meet-me conference

Mobility

Music on hold (MoH)

Mute

Network profiles (automatic)

On- and off-network distinctive ringing

Personal directory

PickUp

Predialing before sending

Privacy

Private Line Automated Ringdown (PLAR)

Redial

Ring tone per line appearance

Service URL

Shared line

Silent monitoring and recording

Speed dial

Time and date display

Transfer

Uniform Resource Locator (URI) dialing

Visual voice mail

Voice mail

Whisper coaching

Electronic hookswitch

You can control the hookswitch electronically with a third-party headset connected to either the USB or auxiliary port, or directly paired with the phone through Bluetooth.

Cisco Intelligent Proximity

Audio path moving sends audio through the IP Phone 8861 for a mobile device-connected call.

Call history synchronization allows you to view placed and missed calls of your mobile device from the IP Phone 8861.

Contact synchronization allows you to synchronize the contact objects from your mobile device to your IP Phone 8861

Quality-of-service (QoS) options

The phone supports Cisco Discovery Protocol and 802.1Q/p standards, and can be configured with an 801.1Q VLAN header containing the VLAN ID overrides configured by the Admin VLAN ID.

Network features

Session Initiation Protocol (SIP) for signaling

Session Description Protocol (SDP)

IPv4 and IPv6

User Datagram Protocol (UDP) (used only for Real-Time Transport Protocol [RTP] streams)

Dynamic Host Configuration Protocol (DHCP) client or static configuration

Gratuitous Address Resolution Protocol (GARP)

Domain Name System (DNS)

Trivial File Transfer Protocol (TFTP)

Secure Hypertext Transfer Protocol (HTTPS)

VLAN

Real-Time Transport Protocol (RTP)

Real-Time Control Protocol (RTCP)

Cisco Peer-to-Peer Distribution Protocol (PPDP)

Cisco Discovery Protocol

LLDP (including LLDP-MED)

Switch speed auto-negotiation

Security features

Secure boot

Secure credential storage

Device authentication

Configuration file authentication and encryption

Image authentication

Random bit generation

Hardware cryptographic acceleration

Certificate Authority Proxy Function (CAPF)

Manufacturer-Installed Certificates (MIC)

Locally Significant Certificates (LSC)

Ethernet 802.1x supplicant options: Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST) and Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)

Signaling authentication and encryption using TLS

Media authentication and encryption using SRTP

HTTPS for client and server

Secure Shell (SSH) Protocol server

Secure Sockets Layer (SSL)-based VPN client

Physical dimensions

(H × W × D)

9.02 x 10.13 x 1.57 in. (229.1 x 257.34 x 40 mm) (exclude foot stand)

Weight

2.62 lb (1.19 kg)

Phone-casing composition

Polycarbonate acrylonitrile butadiene styrene (ABS) textured plastic; Cosmetic class A

Operational temperature

32 to 104°F (0 to 40°C)

Nonoperational temperature shock

14 to 140°F (-10 to 60°C)

Humidity

Operating 10 to 90%, noncondensing

Nonoperating 10 to 95%, noncondensing

Language support

Arabic (Arabic Area)

Bulgarian (Bulgaria)

Catalan (Spain)

Chinese (China)

Chinese (Hong Kong)

Chinese (Taiwan)

Croatian (Croatia)

Czech (Czech Republic)

Danish (Denmark)

Dutch (Netherlands)

English (United Kingdom)

Estonian (Estonia)

French (France)

French (Canada)

Finnish (Finland)

German (Germany)

Greek (Greece)

Hebrew (Israel)

Hungarian (Hungary)

Italian (Italy)

Japanese (Japan)

Latvian (Latvia)

Lithuanian (Lithuania)

Korean (Korea Republic)

Norwegian (Norway)

Polish (Poland)

Portuguese (Portugal)

Portuguese (Brazil)

Romanian (Romania)

Russian (Russian Federation)

Spanish (Columbia)

Spanish (Spain)

Slovak (Slovakia)

Swedish (Sweden)

Serbian (Republic of Serbia)

Serbian (Republic of Montenegro)

Slovenian (Slovenia)

Thai (Thailand)

Turkish (Turkey)

Certification and compliance

Regulatory compliance

◦   CE Markings per directives 2004/108/EC and 2006/95/EC

Safety

◦   UL 60950 Second Edition

◦   CAN/CSA-C22.2 No. 60950 Second Edition

◦   EN 60950 Second Edition (including A11 & A12)

◦   IEC 60950 Second Edition (including A11 & A12)

◦   AS/NZS 60950

◦   GB4943

EMC – Emissions

◦   47CFR Part 15 (CFR 47) Class B

◦   AS/NZS CISPR22 Class B

◦   CISPR22: 2005 w/Amendment 1: 2005 Class B

◦   EN55022: 2006 w/Amendment 1: 2007 Class B

◦   ICES003 Class B

◦   VCCI Class B

◦   EN61000-3-2

◦   EN61000-3-3

◦   KN22 Class B

EMC – Immunity

◦   EN55024

◦   CISPR24

◦   EN60601-1-2

◦   KN24

◦   Armadillo Light

Telecom

◦   FCC Part 68 HAC

◦   CS-03-HAC

◦   AS/ACIF S004

◦   AS/ACIF S040

◦   NZ PTC 220

◦   Industry Standards: TIA 810 and TIA 920

◦   Industry Standards: IEEE 802.3 Ethernet, IEEE 802.3af and 802.3at

◦   Korea (RRA Public Notification 2010-36, Nov 01, 2010)

◦   Korea (RRA Announce 2011-2, Feb28, 2011)

Radio

◦   FCC Part 15.247 (CFR 47)

◦   FCC Part 2.1093 (BT RF Exposure TR)

◦   RSS-102 (BT RF Exposure TR)

◦   RSS-210

◦   EN 300.328

◦   EN50385 (BT RF Exposure TR)

◦   EN 301-489-1

◦   EN 301-489-17

◦   EN 301-893

◦   NCC LP0002

◦   Korea (RRL No. 2006-128, RRL No. 2006-129)

◦   Japan Bluetooth GFSK/EDR
