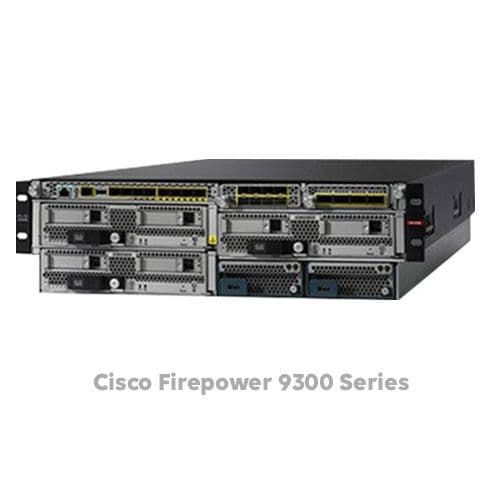

Cisco Firepower® 9300 is a scalable (beyond 1 Tbps when clustered), carrier-grade, modular platform designed for service providers, high-performance computing centers, large data centers, campuses, high- frequency trading environments, and other point in network requiring low (less than 5-microsecond offload) latency and exceptional throughput. Firepower 9300 supports flow-offloading, programmatic orchestration, and the management of security services with RESTful APIs. It is also available in Network Equipment Building Standards (NEBS)-compliant configurations. The 9300 Series runs either the Cisco Secure Firewall ASA or Threat Defense (FTD) software

Cisco Firepower® 9300 is a scalable (beyond 1 Tbps when clustered), carrier-grade, modular platform designed for service providers, high-performance computing centers, large data centers, campuses, high- frequency trading environments, and other point in network requiring low (less than 5-microsecond offload) latency and exceptional throughput. Firepower 9300 supports flow-offloading, programmatic orchestration, and the management of security services with RESTful APIs. It is also available in Network Equipment Building Standards (NEBS)-compliant configurations. The 9300 Series runs either the Cisco Secure Firewall ASA or Threat Defense (FTD) software

Specification

Description

Dimensions (H x W x D)

5.25 x 17.5 x 32 in. (13.3 x 44.5 x 81.3 cm)

Form factor

3 Rack Units (3RU), fits standard 19-in. (48.3-cm) square-hole rack

Security module slots

3

Network module slots

2 (within supervisor)

Supervisor

Cisco Firepower 9000 Supervisor with 8 x 10 Gigabit Ethernet ports and 2 network module slots for I/O expansion

Security modules

●  Cisco Firepower 9000 Security Module 40 with 2 x SSDs in RAID-1 configuration

●  Cisco Firepower 9000 Security Module 48 with 2 x SSDs in RAID-1 configuration

●  Cisco Firepower 9000 Security Module 56 with 2 x SSDs in RAID-1 configuration

Network modules

(2 module slots per chassis)

●  8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network modules

●  4 x 40 Gigabit Ethernet Quad SFP+ network modules

●  2 x 100 Gigabit Ethernet Quad SFP28 network modules

●  4 x 100 Gigabit Ethernet Quad SFP28 network modules

Note: Cisco Firepower 9300 may also be deployed as a dedicated threat sensor, with fail-to-wire network modules. Please contact your Cisco representative for details.

Maximum number of interfaces

Up to 24 x 10 Gigabit Ethernet (SFP+) interfaces; up to 8 x 40 Gigabit Ethernet (QSFP+) interfaces with 2 network modules; up to 8 x 100 Gigabit Ethernet interfaces with two network modules

Integrated network management ports

1 x Gigabit Ethernet copper port (on supervisor)

Serial port

1 x RJ-45 console

USB

1 x USB 2.0

Storage

Up to 4.8 TB per chassis (1.6 TB per security module in RAID-1 configuration)

Power supplies

AC power supply

-48V DC power supply

HVDC power supply

Input voltage

200 to 240V AC

-40V to -60V DC*

240 to 380V DC

Maximum input current

15.5A to 12.9A

69A to 42A

<14A at 200V

Maximum output power

2,500W

2,500W

2,500W

Frequency

50 to 60 Hz

–

–

Efficiency (at 50% load)

92%

92%

92% (at 50% load)

Redundancy

1+1

Fans

4 hot-swappable fans

Noise

75.5 dBA at maximum fan speed

Rack mountable

Yes, mount rails included (4-post EIA-310-D rack)

Weight

105 lb (47.7 kg) with one security module; 135 lb (61.2 kg) fully configured

Temperature: standard operating

Up to 10,000 ft (3000 M): 32 to 104°F (0 to 40°C) for SM-24 module 32 to 88°F (0 to 35°C) for SM-36 module at sea level

Altitude adjustment notes:

For SM-36, maximum temp is 35°C, for every 1000 feet above sea level subtract 1°C

Temperature: NEBS operating

Long term: 0 to 45°C, up to 6,000 ft (1829 m) Long term: 0 to 35°C, 6,000 to 13,000 ft (1829-3964 m) Short term: -5 to 55°C, up to 6,000 ft (1829 m)

Note: Firepower 9300 NEBS compliance applies only to SM-24,SM-40,SM-44 and SM-48 configurations.

Temperature: nonoperating

-40 to 149°F (-40 to 65°C); maximum altitude is 40,000 ft

Humidity: operating

5 to 95% noncondensing

Humidity: nonoperating

5 to 95% noncondensing

Altitude: operating

SM-24: 0 to 13,000 ft (3962 m)

SM-36: 0 to 10,000 ft (3048 m); please see above Operating Temperature section for temperature adjustment notes

Altitude: nonoperating

40,000 ft (12,192 m)
