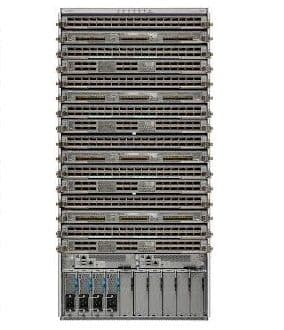

Modular router for data centers, large enterprise, Web and service provider’s WAN, Core and Aggregation networks

Target Deployments Pre-aggregation and aggregation networks

Slots per ChassisUp to 16 line cards 6 switch fabric cards 2 route processors 2 system controllers 3 fan trays 10 power supplies

Rack Size 21 RU

Max Capacity 57.6 Tbps

Size (H x W x D) 36.70 x 17.50 x 31.76 in. (93.41 x 44.50 x 80.67 cm)

Weight Chassis: 192 lb (87.3 kg)

PowerAC or DC 10 Power Supplies N+1 and N+M redundancy

Fans 3 Fan trays

Airflow Front-to-Back Airflow

Fabric Architecture Up to 6 Fabric Modules / chassis N+1 Redundancy

Software IOS XR

System Memory 24GB DRAM (per RP)

Storage 256GB (per RP)

Processor Intel 6-Core processor @ 2.2 GHz (per RP)
