3925 Voice Bundle w/ PVDM3-64,FL-CME-SRST-25, UC License PAK

Model:

C3925-CME-SRST/K9 Cisco 3900 Router Voice Bundle

Brand:

Cisco

C3925-CME-SRST/K9 Overview

C3925-CME-SRST/K9 is a Cisco 3925 router bundled with Voice Bundle w/ PVDM3-64, FL-CME-SRST-25, UC License PAK.

When Unified CME is used in SRST mode, it provides more call processing features for the IP phones than those are available with the SRST feature on a router. In addition, to the SRST features such as call preservation, auto-provisioning, and failover, Unified CME in SRST mode also provides most of the Unified CME telephony features for the SCCP phones, including:

Paging

Conferencing

Hunt groups

Basic automatic call distribution (B-ACD)

Call park, call pickup, call pickup groups

Overlay-DN, softkey templates

Cisco IP Communicator

Cisco Unified Video Advantage

Integration with Cisco Unity with MWI support at remote sites, with distributed Microsoft Exchange or IBM Lotus Domino server

Quick Specs

Table 1 shows the Quick Specs of the C3925-CME-SRST/K9.

Product Code

C3925-CME-SRST/K9

Bundle

3925 Voice Bundle w/ PVDM3-64,FL-CME-SRST-25, UC License PAK

Services Performance Engine module

w/SPE 100

Rack Units

3U

Interfaces

3 integrated 10/100/1000 Ethernet ports with 2 ports capable of RJ-45 or SFP connectivity

Expansion Slot(s)

2 service module slots

1 Internal Services Module slot

4 onboard digital signal processor (DSP) slots

4 Enhanced High-Speed WAN Interface Card (EHWIC) slots

RAM

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

47.6 cm x 43.8 cm x 8.9 cm

Product Details

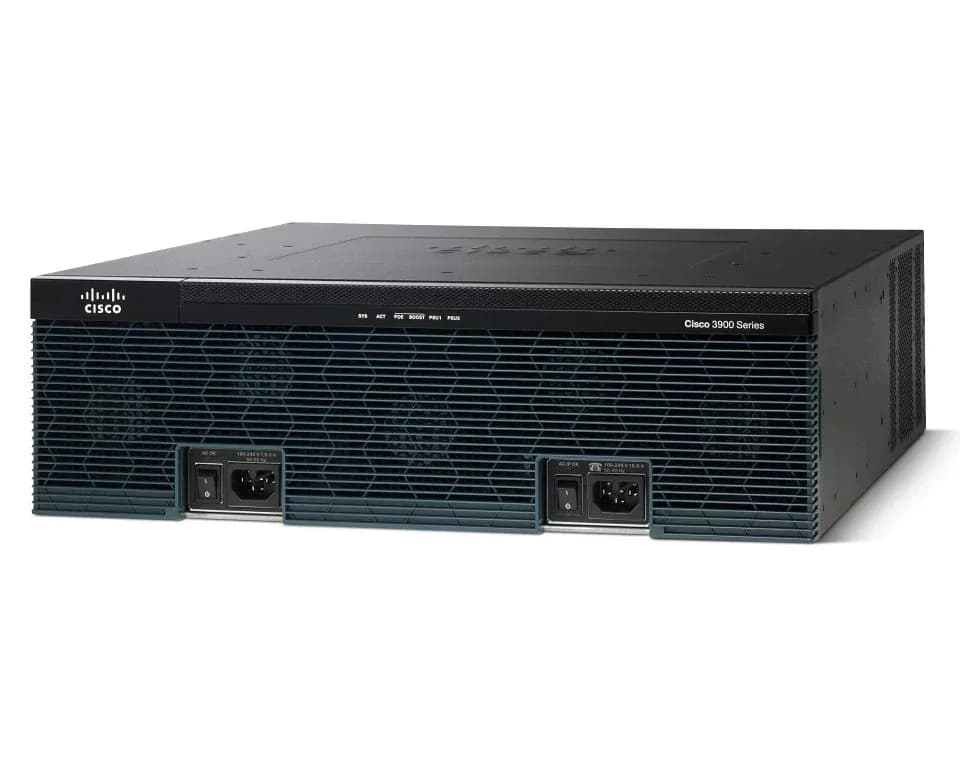

Note:

①

②

③

On/Off switch

Power connector

LEDs area

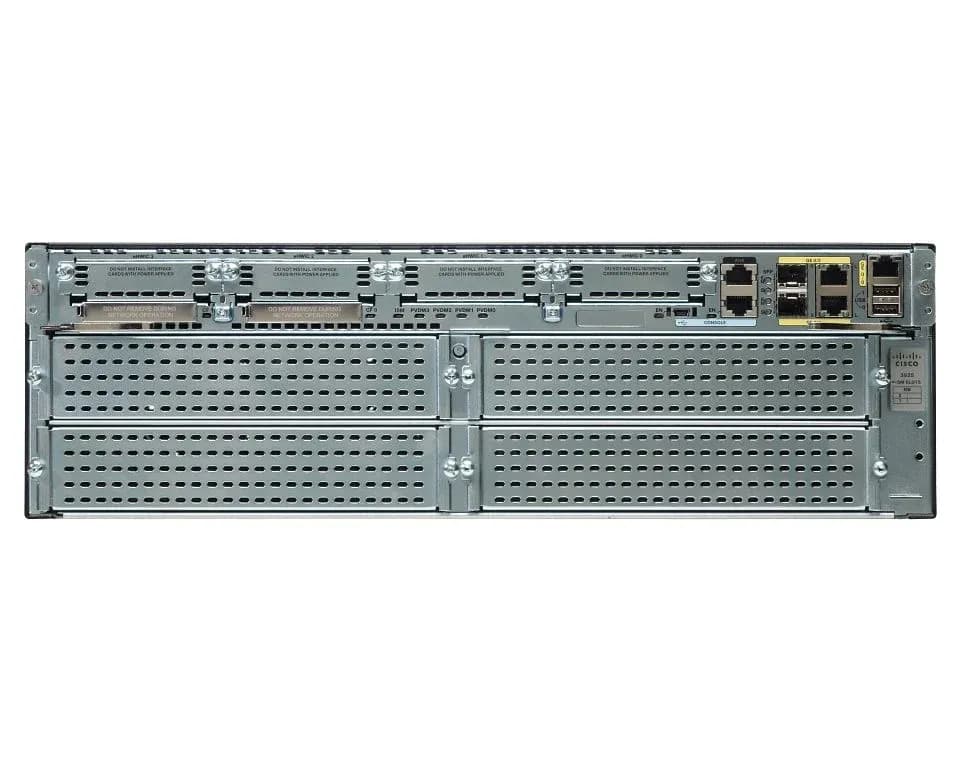

Note:

①

Compact flash 0 and 1 (0, right)

⑦

10/100/1000 Ethernet port GE 0/1 and GE 0/2 (GE 0/1, down)

②

EHWIC 0,1,2 and 3 (0, far right)

⑧

10/100/1000 Ethernet port GE 0/0

③

USB serial port

⑨

USB 0 and USB 1 (1,top)

④

RJ-45 serial console port

⑩

Ground

⑤

AUX port

Service module slots

⑥

SFP 1 and SFP 2 (2, top)

Modularity Features

Table 2 shows modules for this router.

Models

Description

C3900-SPE100/K9

Cisco Services Performance Engine 100 for Cisco 3925 ISR. (It’s a configured item in the CISCO3925/K9.)

SM-ES3G-16-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 16* 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

SM-ES3G-24-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 24 * 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

VWIC3-2MFT-G703

Cisco Voice/WAN Card VWIC3-2MFT-G703

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEMUSB-1024FT

1GB USB Flash Token

Compare to Similar Routers

Table 3 shows the comparison of CISCO3925/k9 and C3925-CME-SRST/K9.

Model

CISCO3925/k9

C3925-CME-SRST/K9

Bundle

N/A

3925 Voice Bundle w/ PVDM3-64,FL-CME-SRST-25, UC License PAK

SPE

w/SPE 100

w/SPE 100

Interface

3GE

3GE

EHWIC slots

4

4

SM slots

2

2

ISM slots

1

1

DSP

4

4

SFP

2

2

Rack Unit

3U

3U

Get more information

C3925-CME-SRST/K9 Specification

C3925-CME-SRST/K9 Specifications

Device Type

Router

Form Factor

Desktop – modular – 3U

Bundle

3925 Voice Bundle w/ PVDM3-64,FL-CME-SRST-25, UC License PAK

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing

Remote Management Protocol

SNMP, RMON

Features

Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED)

Compliant Standards

IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag

DRAM Memory

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

LED Status Lights Indicators

Link activity, power

Communications

Type

Voice / fax module

Digital Ports Qty

64

IP Telephony

Voice Codecs

G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726

Connectivity Slots

Router Interfaces

3 x 10Base-T/100Base-TX/1000Base-T – RJ-45

Management : 1 x console – RJ-45

Management : 1 x console – mini-USB Type B

Serial : 1 x auxiliary – RJ-45

USB : 2 x 4 PIN USB Type A

2 x SFP (mini-GBIC)

Expansion Slots Total (Free)

4 ( 4 ) x HWIC

3 ( 2 ) x PVDM

2 ( 1 ) x CompactFlash Card

1 ( 1 ) x Expansion Slot

Power Supply

Power Device

Power supply – internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Dimensions / Weight / Miscellaneous

Width

47.6 cm

Depth

43.8 cm

Height

8.9 cm

Weight

17.7 kg

Compliant Standards

CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, AS/NZS 3548, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438

System Software

Software Included

Cisco IOS Unified Communications, Cisco Unified Communications Manager Express / Cisco Unified Survivable Remote Site Telephony (25 phones)
