Cisco 3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License P

Model:

C3945-VSEC/K9 Cisco 3900 Router Voice Security Bundle

Brand:

Cisco

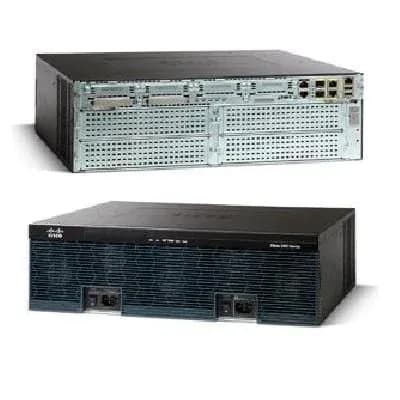

C3945-VSEC/K9 Overview

C3945-VSEC/K9 is the Cisco 3900 Router ISR G2 Voice Security Bundle. Its appearance is similar with CISCO3945/K9, but it’s bundled with Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK.

Quick Specs

Table 1 shows the Quick Specs of the C3945-VSEC/K9.

Product Code

C3945-VSEC/K9

Bundle

Cisco 3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK

Services Performance Engine module

w/SPE 150

Rack Units

3U

Interfaces

3 integrated 10/100/1000 Ethernet ports with 2 ports capable of RJ-45 or SFP connectivity

Expansion Slot(s)

4 service module slots

1 Internal Services Module slot

4 onboard digital signal processor (DSP) slots

4 Enhanced High-Speed WAN Interface Card (EHWIC) slots

RAM

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

47.6 cm x 43.8 cm x 13.3 cm

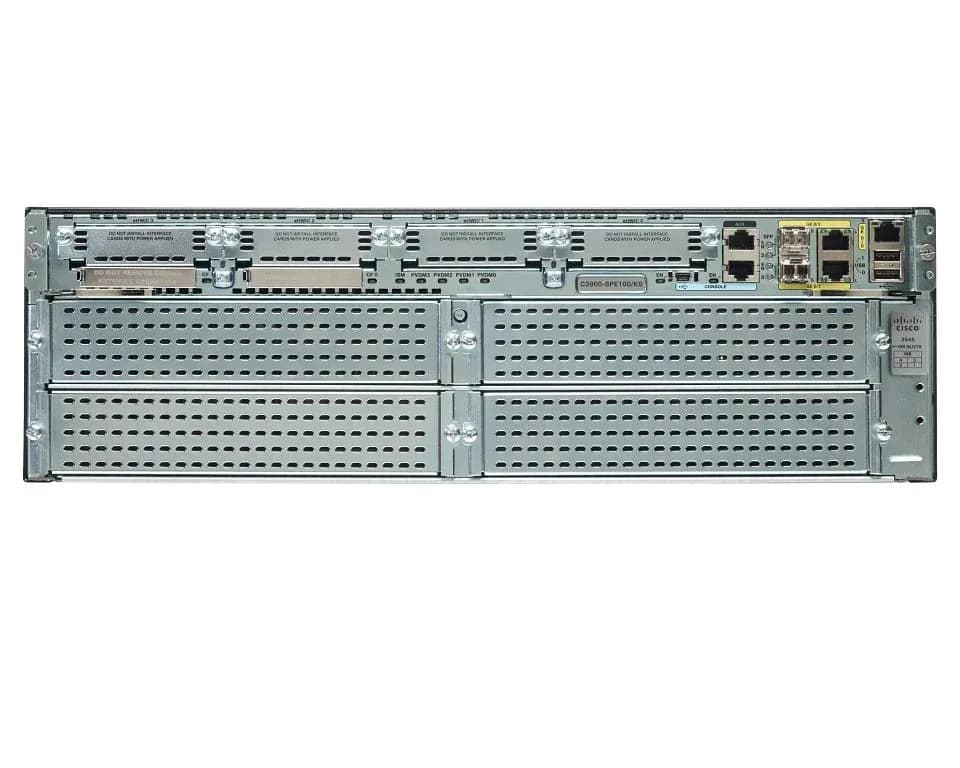

Product Details

Note:

①

②

③

On/Off switch

Power connector

LEDs area

Note:

①

Compact flash 0 and 1 (0, right)

⑦

10/100/1000 Ethernet port GE 0/1 and GE 0/2 (GE 0/1, down)

②

EHWIC 0,1,2 and 3 (0, far right)

⑧

10/100/1000 Ethernet port GE 0/0

③

USB serial port

⑨

USB 0 and USB 1 (1,top)

④

RJ-45 serial console port

⑩

Ground

⑤

AUX port

Service module slots

⑥

SFP 1 and SFP 2 (2, top)

Table 2. Voice Security Bundle Features Table

Authentication and

Encryption Features

Media encryption of voice RTP streams using SRTP

Exchange of RTP Control Protocol (RTCP) information using secure RTCP

SRTP to RTP fallback for calls between secure and insecure endpoints

Secure calls supported in Cisco Unified Survivable Remote Site Telephony (SRST) mode during WAN failover

Compressed RTP (CRTP) supported with media encrypted calls using SRTP

Authentication and

Encryption Algorithm

Supports AES-128 encryption algorithm

Supports the HMAC secure hash authentication algorithm (SHA 1)

Signaling Authentication and Encryption Features

Gateway to Cisco Unified Communications Manager signaling and encryption uses IPSec for Media Gateway Control Protocol (MGCP), H.323 and SIP gateways

IP phone to Cisco Unified Survivable Remote Site Telephony router signaling and encryption uses TLS

(Transport Layer Security)

Protocol Support

MGCP 0.1 (supports MGCP gateways with Cisco Unified Communications Manager)

H.323 (supported on H.323 gateways and CUBE; Cisco Unified Communications Manager interoperability is optional)

Session Initiation Protocol (SIP)

SCCP (Cisco Unified IP Phone) in SRST mode

Module Support

Any module that has PVDM2, PVDM3 and/or built-in DSP

Codec Support

G.711, G.729A, and G.729

Modularity Features

Table 3 shows modules for this router.

Models

Description

C3900-SPE150/K9

Cisco Services Performance Engine 150 for Cisco 3945 ISR. (It’s a configured item in the CISCO3945/K9.)

SM-ES3G-16-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 16* 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

SM-ES3G-24-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 24 * 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

VWIC3-2MFT-G703

Cisco Voice/WAN Card VWIC3-2MFT-G703

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

Compare to Similar Routers

Table 4 shows the comparison of CISCO3945/k9 and C3945-VSEC/K9.

Model

CISCO3945/k9

C3945-VSEC/K9

Bundle

N/A

Cisco 3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK

SPE

w/SPE 150

w/SPE 150

Interface

3GE

3GE

EHWIC slots

4

4

SM slots

4

4

ISM slots

1

1

DSP

4

4

SFP

2

2

Rack Unit

3U

3U

Get more information

C3945-VSEC/K9 Specification

C3945-VSEC/K9 Specifications

Device Type

Router

Form Factor

Desktop – modular – 3U

Bundle

Cisco 3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Capacity

Cisco Unified Communications Manager Express sessions : 350

Cisco Unified SRST sessions : 1200

Network / Transport Protocol

IPSec, PPPoE, L2TPv3

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)

Remote Management Protocol

SNMP, RMON

Encryption Algorithm

SSL

Features

Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag

DRAM Memory

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

LED Status Lights Indicators

Link activity, power

Communications

Type

Voice / fax module

Digital Ports Qty

64

IP Telephony

Voice Codecs

G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726

Connectivity Slots

Router Interfaces

3 x 10Base-T/100Base-TX/1000Base-T – RJ-45

Management : 1 x console – RJ-45

Management : 1 x console – mini-USB Type B

Serial : 1 x auxiliary – RJ-45

Hi-Speed USB : 2 x 4 PIN USB Type A

2 x SFP (mini-GBIC)

Expansion Slots Total (Free)

4 ( 4 ) x EHWIC

4 ( 3 ) x PVDM

2 ( 1 ) x CompactFlash Card

1 ( 1 ) x Expansion Slot

4 ( 4 ) x service module (SM)

1 ( 1 ) x ISM

Power Supply

Power Device

Power supply – internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Dimensions / Weight / Miscellaneous

Width

43.8 cm

Depth

47.6 cm

Height

13.3 cm

Weight

17.7 kg

Compliant Standards

CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438

System Software

IOS Software Included

Cisco IOS Security

Software Included

Cisco IOS Unified Communications
