Cisco 3945 SRE Bundle, SRE 700, PVDM3-64, UC, SEC Lic. PAK

Model:

C3945-VSEC-SRE/K9 Cisco 3900 Router Voice Security Bundle

Brand:

Cisco

C3945-VSEC-SRE/K9 Overview

C3945-VSEC-SRE/K9 is the Cisco Router ISR G2 with SRE and Voice Security Bundle. Its Voice Security Bundle features is the same as C3945-VSEC/K9, but it’s bundled with SRE 700, PVDM3-64, UC, SEC Lic. PAK.

Quick Specs

Table 1 shows the Quick Specs of the C3945-VSEC/K9.

Product Code

C3945-VSEC-SRE/K9

Bundle

Cisco 3945 SRE Bundle, SRE 700, PVDM3-64, UC, SEC Lic. PAK

Services Performance Engine module

w/SPE 150

Rack Units

3U

Interfaces

3 integrated 10/100/1000 Ethernet ports with 2 ports capable of RJ-45 or SFP connectivity

Expansion Slot(s)

4 service module slots

1 Internal Services Module slot

4 onboard digital signal processor (DSP) slots

4 Enhanced High-Speed WAN Interface Card (EHWIC) slots

RAM

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

47.6 cm x 43.8 cm x 13.3 cm

Product Details

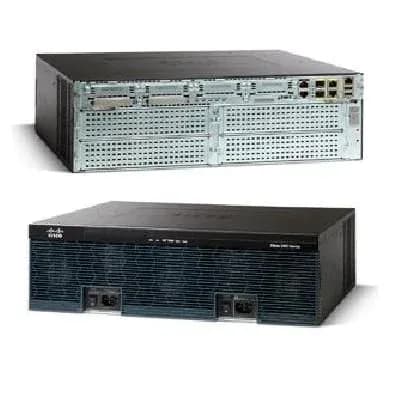

Note:

①

②

③

On/Off switch

Power connector

LEDs area

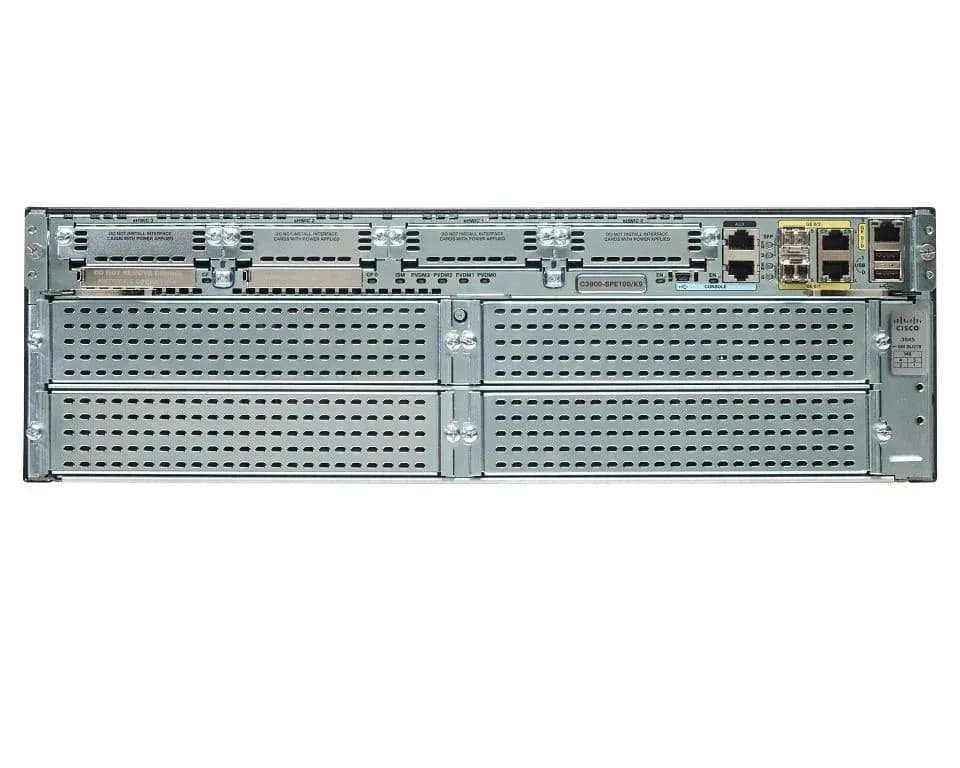

Note:

①

Compact flash 0 and 1 (0, right)

⑦

10/100/1000 Ethernet port GE 0/1 and GE 0/2 (GE 0/1, down)

②

EHWIC 0,1,2 and 3 (0, far right)

⑧

10/100/1000 Ethernet port GE 0/0

③

USB serial port

⑨

USB 0 and USB 1 (1,top)

④

RJ-45 serial console port

⑩

Ground

⑤

AUX port

Service module slots

⑥

SFP 1 and SFP 2 (2, top)

Table 2. Summary of Features and Benefits of Cisco Services-Ready Engine

Key Features

Key Benefits

Ability to host Cisco, third-party, and custom applications

Small physical, energy, and carbon footprint

High-performance, high-capacity hardware

On-demand remote application provisioning

Centralized management and troubleshooting

Consolidate and simplify branch-office infrastructure into one device

Save on energy bills, hardware support contracts, and onsite visits

Improve versatility and flexibility of branch-office infrastructure

Quickly and cost-effectively adapt branch-office services and applications to evolving business needs

Table 3 shows Cisco SRE Module Product Specifications. C3945-VSEC-SRE/K9 supports SRE 700.

Feature

Cisco SRE 300 ISM

Cisco SRE 700 and SRE 710 SMs

Cisco SRE 900 and SRE 910 SMs

Product part number

ISM-SRE-300-K9

SM-SRE-700-K9

SM-SRE-710-K9

SM-SRE-900-K9

SM-SRE-910-K9

Form factor

ISM

SM

SM

CPU

Genuine Intel Processor, 1.06 GHz

Intel Core2 Solo, 1.86 GHz

Intel Core2 Duo, 1.86 GHz

DRAM

512 MB

4 GB

4 GB (default) or 8 GB

Compact Flash memory

4-GB internal USB flash-memory module

2-GB internal USB flash-memory module

2-GB internal USB flash-memory module

Hard disk

None

One 500-GB SATA

5400 rpm (SRE 700)

7200 rpm (SRE 710)

Two 500-GB SATA

(1 TB in non-RAID mode)

5400 rpm (SRE 900)

7200 rpm (SRE 910)

Hot-swappable hard disk drive (HDD)

None

None

Yes

RAID support

None

None

RAID 0 or 1 (application dependent)

Internal network interfaces

Gigabit Ethernet connectivity to router backplane

Gigabit Ethernet connectivity to router backplane

Gigabit Ethernet connectivity to router backplane

External network interfaces

None

One USB connector

One RJ-45 Gigabit Ethernet connector

One USB connector

One RJ-45 Gigabit Ethernet connector

Router platforms

Cisco 1941, 2901, 2911, 2921, 2951, 3925, and 3945 Integrated Services Routers

Cisco 2911, 2921, 2951, 3925, 3925E, 3945, and 3945E Integrated Services Routers

Cisco 2911, 2921, 2951, 3925, 3925E, 3945, and 3945E Integrated Services Routers

Cisco IOS Software (on router)

Release 15.0(1)M

Release 15.1(4)M

Release 15.1(4)M

Embedded hardware-based cryptography acceleration

No

No

Yes

Supported Applications

Applications

Cisco Unity Express

Cisco Application Extension Platform (AXP)

Cisco Wireless LAN Controller (WLC)

Cisco Unity Express

Cisco UCS Express

Cisco AXP

Cisco WLC

Cisco Wide Area Application Services (WAAS)

Infoblox Core Network Services

Cisco Prime Network Analysis Module (NAM)

Cisco Unified SIP Proxy

Cisco Unified Messaging Gateway (UMG)

Cisco Survivable Remote Site Voicemail (SRSV)

Sagemcom Fax over IP

Tiani Spirit Medical Data Exchange Solution

Orion Health Rhapsody Connect

NetScout nGenius Integrated Agent

BlueCat Adonis DNS/DHCP and Proteus IPAM

LogLogic MX-Virtual Appliance

SecureLogix Voice Policy Firewall

Open Text RightFax Fax over IP

Visual Network Systems OmniPoint Element

Uplogix Local Management Platform

IndustryWeapon CommandCenterHD

Cisco Unity Express

Cisco UCS Express

Cisco AXP

Cisco WLC

Cisco WAAS

Cisco Video Surveillance

Infoblox Core Network Services

Cisco Prime Network Analysis Module (NAM)

Cisco Unified SIP Proxy

Cisco Unified Messaging Gateway (UMG)

Cisco Survivable Remote Site Voicemail (SRSV)

Sagemcom Fax over IP

Tiani Spirit Medical Data Exchange Solution

Orion Health Rhapsody Connect

NetScout nGenius Integrated Agent

BlueCat Adonis DNS/DHCP and Proteus IPAM

LogLogic MX-Virtual Appliance

SecureLogix Voice Policy Firewall

Open Text RightFax Fax over IP

Visual Network Systems OmniPoint Element

Uplogix Local Management Platform

Industry Weapon CommandCenterHD

Modularity Features

Table 4 shows modules for this router.

Models

Description

C3900-SPE150/K9

Cisco Services Performance Engine 150 for Cisco 3945 ISR. (It’s a configured item in the CISCO3945/K9.)

SM-ES3G-16-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 16* 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

SM-ES3G-24-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 24 * 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

VWIC3-2MFT-G703

Cisco Voice/WAN Card VWIC3-2MFT-G703

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

Compare to Similar Routers

Table 5 shows the comparison of CISCO3945/k9 and C3945-VSEC-SRE/K9.

Model

CISCO3945/k9

C3945-VSEC-SRE/K9

Bundle

N/A

Cisco 3945 SRE Bundle, SRE 700, PVDM3-64, UC, SEC Lic. PAK

SPE

w/SPE 150

w/SPE 150

Interface

3GE

3GE

EHWIC slots

4

4

SM slots

4

4

ISM slots

1

1

DSP

4

4

SFP

2

2

Rack Unit

3U

3U

Get more information

C3945-VSEC-SRE/K9 Specification

C3945-VSEC-SRE/K9 Specifications

Device Type

Router

Bundle

Cisco 3945 SRE Bundle, SRE 700, PVDM3-64, UC, SEC Lic. PAK

Form Factor

Desktop – modular – 3U

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Capacity

Cisco Unified Communications Manager Express sessions : 350

Cisco Unified SRST sessions : 1200

Network / Transport Protocol

TCP/IP, UDP/IP, RSVP, IPSec, PPPoE, L2TPv3

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)

Remote Management Protocol

SNMP, RMON

Encryption Algorithm

SSL

Features

Firewall protection, NAT support, hardware encryption, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag

DRAM Memory

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Hard Drive

1 TB

LED Status Lights Indicators

Link activity, power

Communications

Type

Voice / fax module

Digital Ports Qty

64

Protocols & Specifications

ITU G.168

IP Telephony

Voice Codecs

G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726

Connectivity Slots

Router Interfaces

WAN : 3 x 10Base-T/100Base-TX/1000Base-T – RJ-45

Management : 1 x console – RJ-45

Management : 1 x console – mini-USB Type B

Serial : 1 x auxiliary – RJ-45

USB : 3 x 4 PIN USB Type A

1 x 10Base-T/100Base-TX/1000Base-T – RJ-45

2 x SFP (mini-GBIC)

Expansion Slots Total (Free)

4 ( 4 ) x EHWIC

4 ( 3 ) x PVDM

2 ( 1 ) x CompactFlash Card

4 ( 3 ) x service module (SM)

1 ( 1 ) x ISM

Power Supply

Power Device

Power supply – internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Dimensions / Weight / Miscellaneous

Width

47.6 cm

Depth

43.8 cm

Height

13.3 cm

Compliant Standards

CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438

System Software

Software Included

Cisco IOS Unified Communications, Cisco IOS Security
