3945E Voice Bundle w/ PVDM3-64,FL-CME-SRST-25, UC License PA

Model:

C3945E-CME-SRST/K9 Cisco 3945E Voice Bundle

Brand:

Cisco

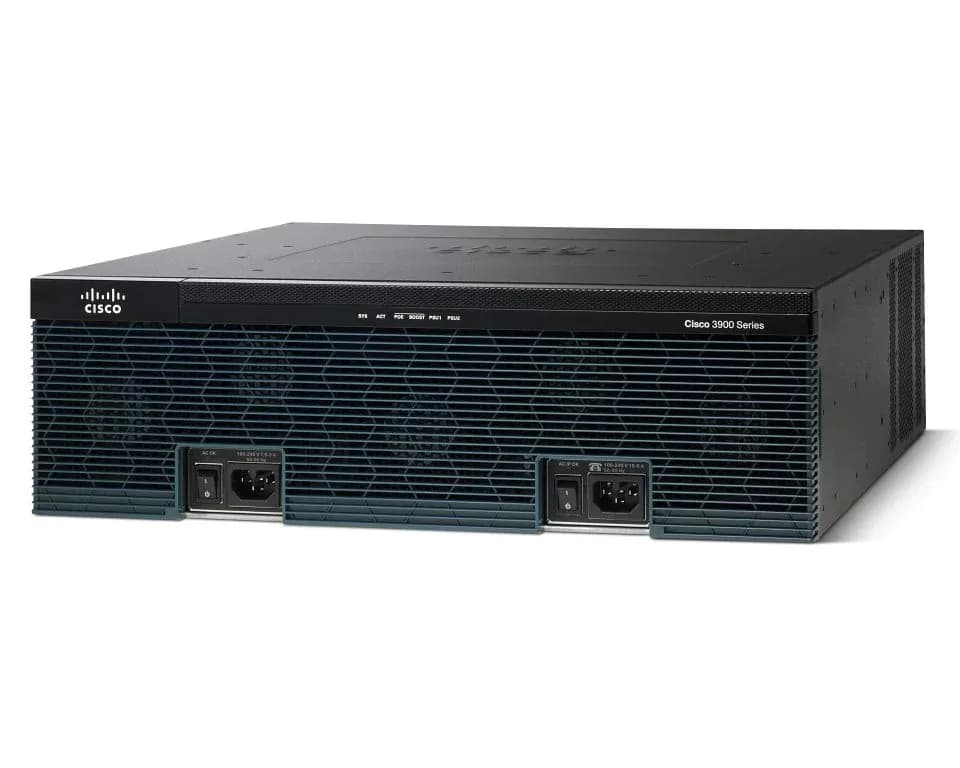

C3945E-CME-SRST/K9 Overview

C3945E-CME-SRST/K9 is the Cisco 3945E router with Cisco Voice Bundle w/ PVDM3-64, FL-CME-SRST-25, and UC License PAK.

When Unified CME is used in SRST mode, it provides more call processing features for the IP phones than those are available with the SRST feature on a router. In addition, to the SRST features such as call preservation, auto-provisioning, and failover, Unified CME in SRST mode also provides most of the Unified CME telephony features for the SCCP phones, including:

Paging

Conferencing

Hunt groups

Basic automatic call distribution (B-ACD)

Call park, call pickup, call pickup groups

Overlay-DN, softkey templates

Cisco IP Communicator

Cisco Unified Video Advantage

Integration with Cisco Unity with MWI support at remote sites, with distributed Microsoft Exchange or IBM Lotus Domino server

Quick Specs

Table 1 shows the Quick Specs.

Product Code

C3945E-CME-SRST/K9

Bundle

3945E Voice Bundle w/ PVDM3-64,FL-CME-SRST-25, UC License PA

Services Performance Engine module

w/SPE 250

Rack Units

3U

Interfaces

WAN : 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45

Management : 1 x console – RJ-45

Management : 1 x console – mini-USB Type B

Serial : 1 x auxiliary – RJ-45

USB : 3 x 4 pin USB Type A

1 x 10Base-T/100Base-TX/1000Base-T – RJ-45

2 x SFP (mini-GBIC)

Expansion Slot(s)

3 (total) / 3 (free) x EHWIC

3 (total) / 2 (free) x PVDM

2 (total) / 1 (free) x CompactFlash Card

4 (total) / 3 (free) x service module (SM)

RAM

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

18.7 in x 17.2 in x 5.2 in

Product Details

Note:

①

②

③

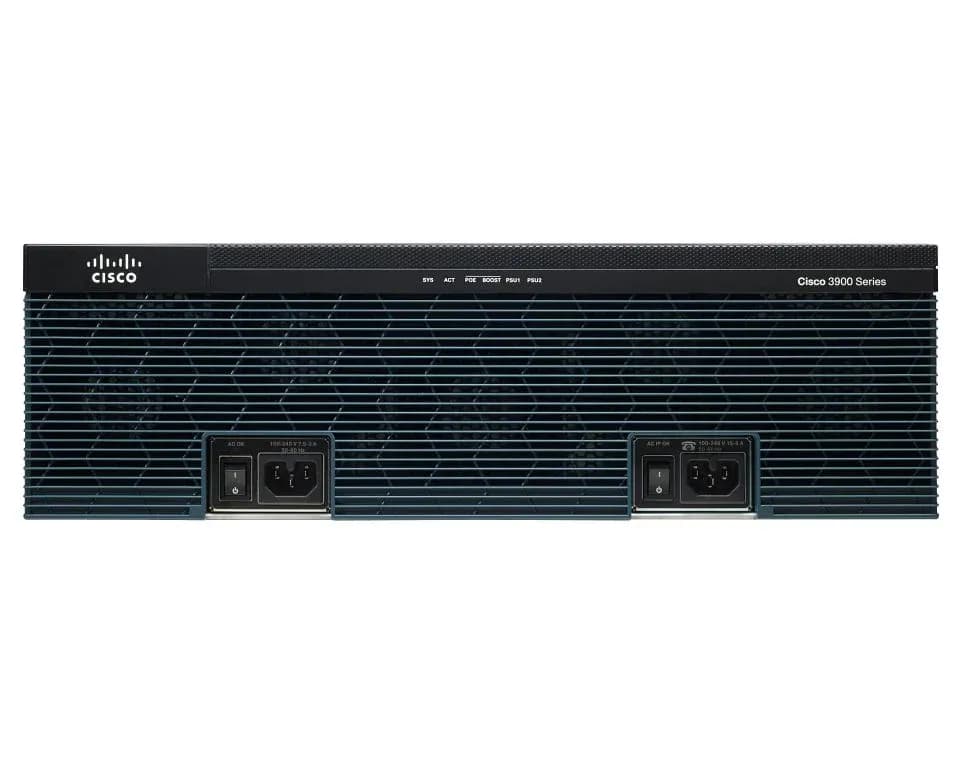

On/Off switch

Power connector

LEDs area

Note:

①

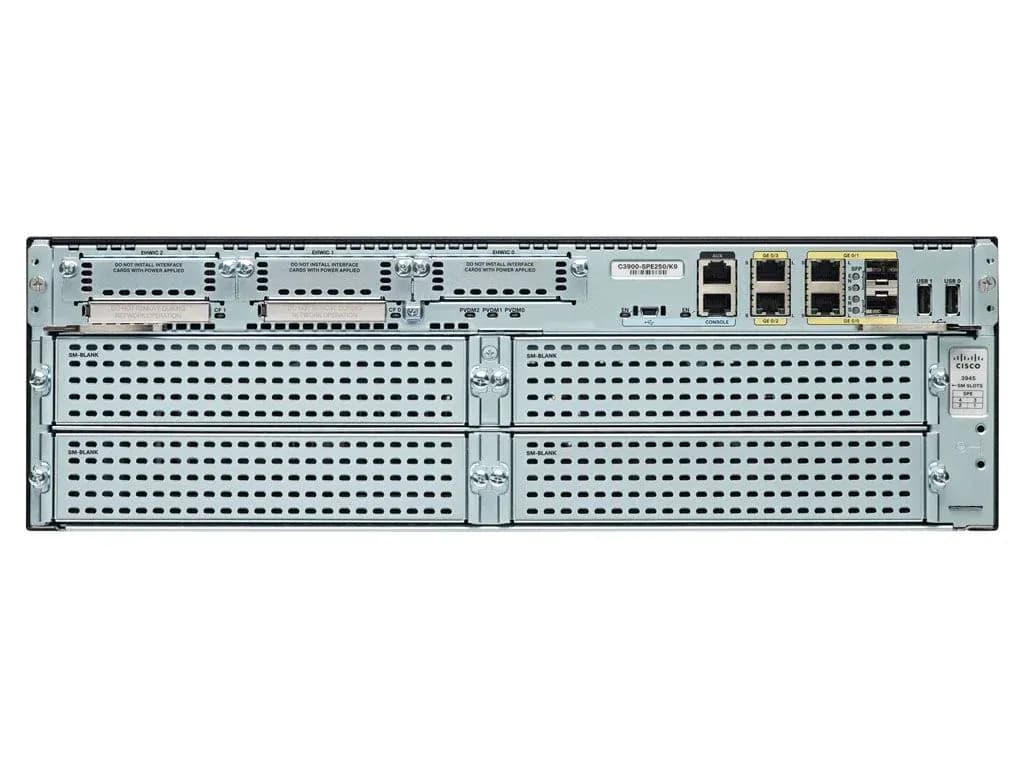

EHWIC 0,1, and 2 (0, far right)

⑦

SFP 1 and SFP 2 (1, Top)

②

USB serial port

⑧

USB 0 and USB 1 (1, Left)

③

AUX port

⑨

Ground

④

RJ-45 serial console port

⑩

Service module slots

⑤

10/100/1000 Ethernet ports (GE 0/3, Top; GE 0/2, Bottom)

Compact flash 0 and 1 (0, right)

⑥

10/100/1000 Ethernet ports (GE 0/1, Top; GE 0/0, Bottom)

Compare to Similar Items

Table 3 shows the comparison.

Model

C3945E-CME-SRST/K9

CISCO3945E/k9

Bundle

Cisco 3945E Voice Bundle w/ PVDM3-64,FL-CME-SRST-25, UC License PA

N/A

SPE

w/SPE 250

w/SPE 250

Interface

4 integrated 10/100/1000 Ethernet ports with 2 SFP ports

4 integrated 10/100/1000 Ethernet ports with 2 SFP ports

Rack Unit

3U

3U

Bundle

Cisco 3945E Voice Sec. Bundle, PVDM3-64, UC and SEC License

None

Get more information

C3945E-CME-SRST/K9 Specification

C3945E-CME-SRST/K9 Specifications

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

C3945E-CME-SRST/K9

Product Type

Router

Bundle

Cisco 3945E Voice Bundle w/ PVDM3-64,FL-CME-SRST-25, UC License PAK

Form Factor

Desktop – modular – 3U

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Capacity

Cisco Unified Communications Manager Express sessions : 450

Cisco Unified SRST sessions : 1500

Network / Transport Protocol

IPSec, PPPoE, L2TPv3

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)

Remote Management Protocol

SNMP, RMON

Features

Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag

DRAM Memory

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

LED Status Lights Indicators

Link activity, power

Communications

Type

Voice / fax module

Digital Ports Qty

64

Protocols & Specifications

ITU G.168

IP Telephony

Voice Codecs

G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726

Connectivity Slots

Router Interfaces

WAN : 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45

Management : 1 x console – RJ-45

Management : 1 x console – mini-USB Type B

Serial : 1 x auxiliary – RJ-45

USB : 2 x 4 pin USB Type A

2 x SFP (mini-GBIC)

Expansion Slot(s)

3 (total) / 3 (free) x EHWIC

3 (total) / 2 (free) x PVDM

2 (total) / 1 (free) x CompactFlash Card

4 (total) / 4 (free) x service module (SM)

Power Supply

Power Device

Power supply – internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Dimensions / Weight / Miscellaneous

Approximate Width

18.7 in

Depth

17.2 in

Height

5.2 in

Weight

39 lbs

Compliant Standards

CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438, NEBS

System software

Software Included

Cisco IOS Unified Communications, Cisco Unified Communications Manager Express / Cisco Unified Survivable Remote Site Telephony (25 phones)
