Cisco 3945E SRE Bundle, SRE 900, PVDM3-64, UC, SEC Lic. PAK

Model:

C3945E-VSEC-SRE/K9 Cisco 3945E Services Ready Engine Bundle

Brand:

Cisco

C3945E-VSEC-SRE/K9 Overview

C3945E-VSEC-SRE/K9 is the Cisco 3945E router with VSEC SRE Bundle, including SRE 900, PVDM3-64, UC License and Security License.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

C3945E-VSEC-SRE/K9

Bundle

SRE 900, PVDM3-64, UC License and Security License

Services Performance Engine module

w/SPE 250

Rack Units

3U

Interfaces

WAN : 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45

Management : 1 x console – RJ-45

Management : 1 x console – mini-USB Type B

Serial : 1 x auxiliary – RJ-45

USB : 3 x 4 pin USB Type A

1 x 10Base-T/100Base-TX/1000Base-T – RJ-45

2 x SFP (mini-GBIC)

Expansion Slot(s)

3 (total) / 3 (free) x EHWIC

3 (total) / 2 (free) x PVDM

2 (total) / 1 (free) x CompactFlash Card

4 (total) / 3 (free) x service module (SM)

RAM

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

18.7 in x 17.2 in x 5.2 in

Product Details

Note:

①

②

③

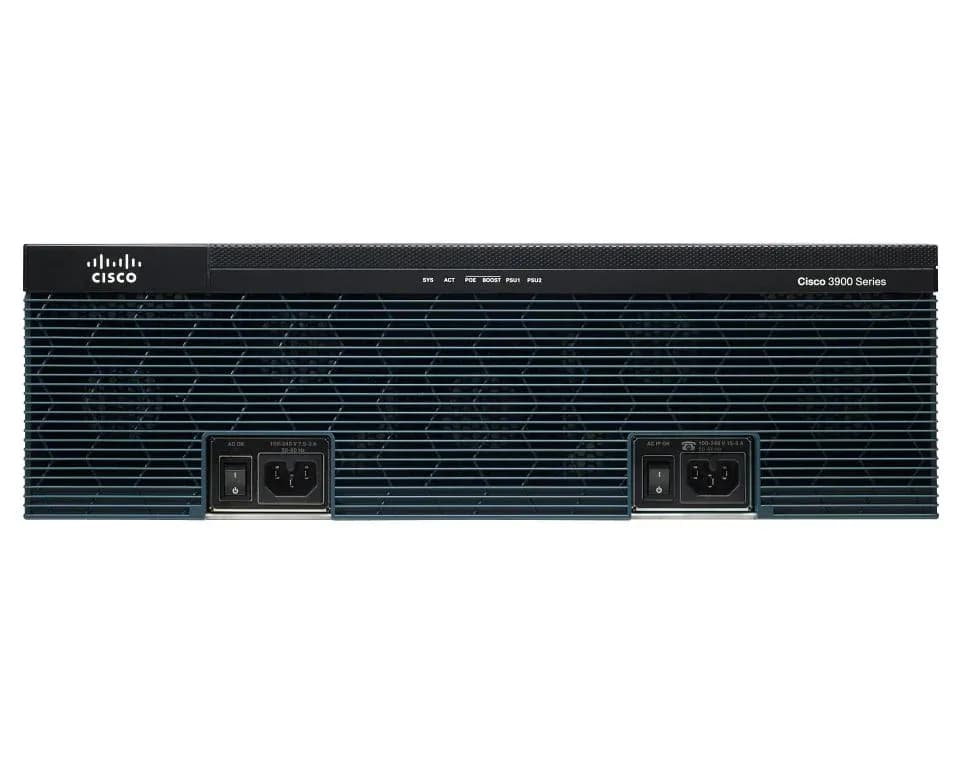

On/Off switch

Power connector

LEDs area

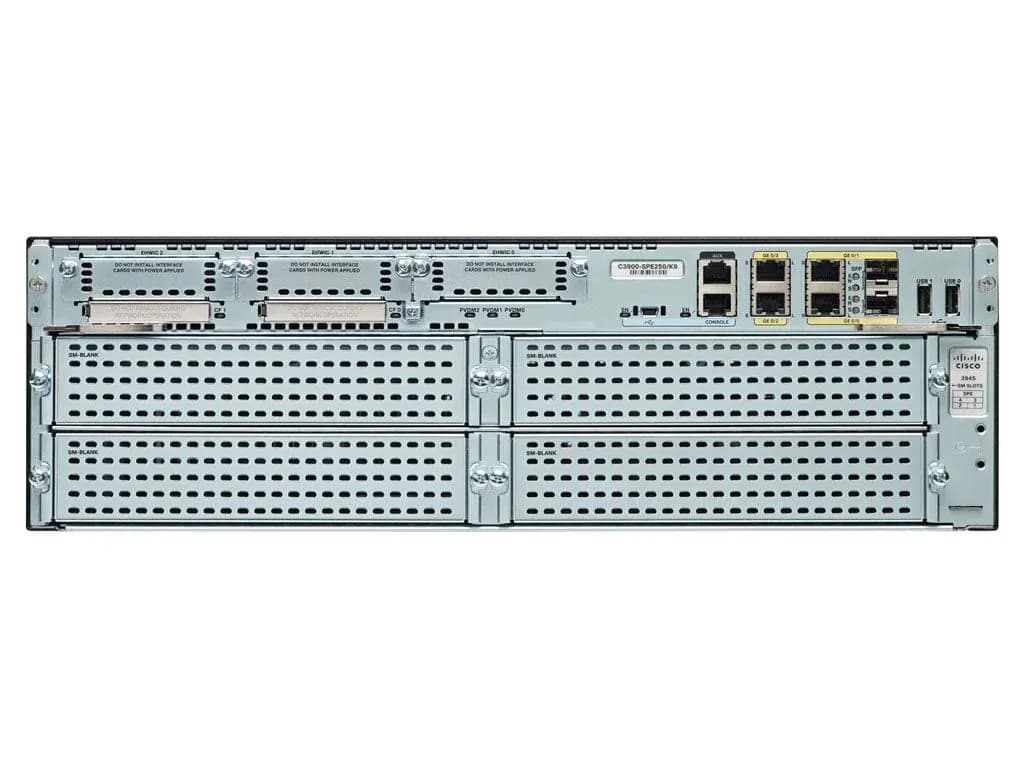

Note:

①

EHWIC 0,1, and 2 (0, far right)

⑦

SFP 1 and SFP 2 (1, Top)

②

USB serial port

⑧

USB 0 and USB 1 (1, Left)

③

AUX port

⑨

Ground

④

RJ-45 serial console port

⑩

Service module slots

⑤

10/100/1000 Ethernet ports (GE 0/3, Top; GE 0/2, Bottom)

Compact flash 0 and 1 (0, right)

⑥

10/100/1000 Ethernet ports (GE 0/1, Top; GE 0/0, Bottom)

Table 2. Summary of Features and Benefits of Cisco Services-Ready Engine

Key Features

Key Benefits

• Ability to host Cisco, third-party, and custom applications

• Small physical, energy, and carbon footprint

• High-performance, high-capacity hardware

• On-demand remote application provisioning

• Centralized management and troubleshooting

• Consolidate and simplify branch-office infrastructure into one device

• Save on energy bills, hardware support contracts, and onsite visits

• Improve versatility and flexibility of branch-office infrastructure

• Quickly and cost-effectively adapt branch-office services and applications to evolving business needs

Table 3 shows Cisco SRE Module Product Specifications. C3945E-VSEC-SRE/K9 supports SRE 900.

Feature

Cisco SRE 300 ISM

Cisco SRE 700 and SRE 710 SMs

Cisco SRE 900 and SRE 910 SMs

Product part number

ISM-SRE-300-K9

SM-SRE-700-K9

SM-SRE-710-K9

SM-SRE-900-K9

SM-SRE-910-K9

Form factor

ISM

SM

SM

CPU

Genuine Intel Processor, 1.06 GHz

Intel Core2 Solo, 1.86 GHz

Intel Core2 Duo, 1.86 GHz

DRAM

512 MB

4 GB

4 GB (default) or 8 GB

Compact Flash memory

4-GB internal USB flash-memory module

2-GB internal USB flash-memory module

2-GB internal USB flash-memory module

Hard disk

None

One 500-GB SATA

5400 rpm (SRE 700)

7200 rpm (SRE 710)

Two 500-GB SATA

(1 TB in non-RAID mode)

5400 rpm (SRE 900)

7200 rpm (SRE 910)

Hot-swappable hard disk drive (HDD)

None

None

Yes

RAID support

None

None

RAID 0 or 1 (application dependent)

Internal network interfaces

Gigabit Ethernet connectivity to router backplane

Gigabit Ethernet connectivity to router backplane

Gigabit Ethernet connectivity to router backplane

External network interfaces

None

One USB connector

One RJ-45 Gigabit Ethernet connector

One USB connector

One RJ-45 Gigabit Ethernet connector

Router platforms

Cisco 1941, 2901, 2911, 2921, 2951, 3925, and 3945 Integrated Services Routers

Cisco 2911, 2921, 2951, 3925, 3925E, 3945, and 3945E Integrated Services Routers

Cisco 2911, 2921, 2951, 3925, 3925E, 3945, and 3945E Integrated Services Routers

Cisco IOS Software (on router)

Release 15.0(1)M

Release 15.1(4)M

Release 15.1(4)M

Embedded hardware-based cryptography acceleration

No

No

Yes

Supported Applications

Applications

• Cisco Unity Express

• Cisco Application Extension Platform (AXP)

• Cisco Wireless LAN Controller (WLC)

• Cisco Unity Express

• Cisco UCS Express

• Cisco AXP

• Cisco WLC

• Cisco Wide Area Application Services (WAAS)

• Infoblox Core Network Services

• Cisco Prime Network Analysis Module (NAM)

• Cisco Unified SIP Proxy

• Cisco Unified Messaging Gateway (UMG)

• Cisco Survivable Remote Site Voicemail (SRSV)

• Sagemcom Fax over IP

• Tiani Spirit Medical Data Exchange Solution

• Orion Health Rhapsody Connect

• NetScout nGenius Integrated Agent

• BlueCat Adonis DNS/DHCP and Proteus IPAM

• LogLogic MX-Virtual Appliance

• SecureLogix Voice Policy Firewall

• Open Text RightFax Fax over IP

• Visual Network Systems OmniPoint Element

• Uplogix Local Management Platform

• IndustryWeapon CommandCenterHD

• Cisco Unity Express

• Cisco UCS Express

• Cisco AXP

• Cisco WLC

• Cisco WAAS

• Cisco Video Surveillance

• Infoblox Core Network Services

• Cisco Prime Network Analysis Module (NAM)

• Cisco Unified SIP Proxy

• Cisco Unified Messaging Gateway (UMG)

• Cisco Survivable Remote Site Voicemail (SRSV)

• Sagemcom Fax over IP

• Tiani Spirit Medical Data Exchange Solution

• Orion Health Rhapsody Connect

• NetScout nGenius Integrated Agent

• BlueCat Adonis DNS/DHCP and Proteus IPAM

• LogLogic MX-Virtual Appliance

• SecureLogix Voice Policy Firewall

• Open Text RightFax Fax over IP

• Visual Network Systems OmniPoint Element

• Uplogix Local Management Platform

• Industry Weapon CommandCenterHD

Compare to Similar Items

Table 4 shows the comparison.

Model

C3945E-VSEC-SRE/K9

CISCO3945E/k9

SPE

w/SPE 250

w/SPE 250

Interface

4 integrated 10/100/1000 Ethernet ports with 2 SFP ports

4 integrated 10/100/1000 Ethernet ports with 2 SFP ports

Rack Unit

3U

3U

Bundle

Cisco 3945E SRE Bundle, SRE 900, PVDM3-64, UC, SEC Lic. PAK

None

Get more information

C3945E-VSEC-SRE/K9 Specification

C3945E-VSEC-SRE/K9 Specification

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

C3945E-VSEC-SRE/K9

Product Type

Router

Form Factor

Desktop – modular – 3U

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Capacity

Cisco Unified Communications Manager Express sessions : 450

Cisco Unified SRST sessions : 1500

Network / Transport Protocol

IPSec, PPPoE, L2TPv3

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)

Remote Management Protocol

SNMP, RMON

Encryption Algorithm

SSL

Features

Firewall protection, hardware encryption, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag

DRAM Memory

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Hard Drive

1 TB

LED Status Lights Indicators

Link activity, power

Communications

Type

Voice / fax module

Digital Ports Qty

64

Protocols & Specifications

ITU G.168

IP Telephony

Voice Codecs

G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726

Connectivity Slots

Router Interfaces

WAN : 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45

Management : 1 x console – RJ-45

Management : 1 x console – mini-USB Type B

Serial : 1 x auxiliary – RJ-45

USB : 3 x 4 pin USB Type A

1 x 10Base-T/100Base-TX/1000Base-T – RJ-45

2 x SFP (mini-GBIC)

Expansion Slot(s)

3 (total) / 3 (free) x EHWIC

3 (total) / 2 (free) x PVDM

2 (total) / 1 (free) x CompactFlash Card

4 (total) / 3 (free) x service module (SM)

Power Supply

Power Device

Power supply – internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Dimensions / Weight / Miscellaneous

Approximate Width

18.7 in

Depth

17.2 in

Height

5.2 in

Compliant Standards

CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438

System software

Software Included

Cisco IOS Unified Communications, Cisco IOS Security
