Cisco ISR 4331 AXV Bundle with PVDM4-32, CUBE-10, IPBase, APP, SEC and UC licenses.

Model:

ISR4331-AXV/K9 – Cisco ISR 4000 Series Routers

Brand:

Cisco

ISR4331-AXV/K9 Overview

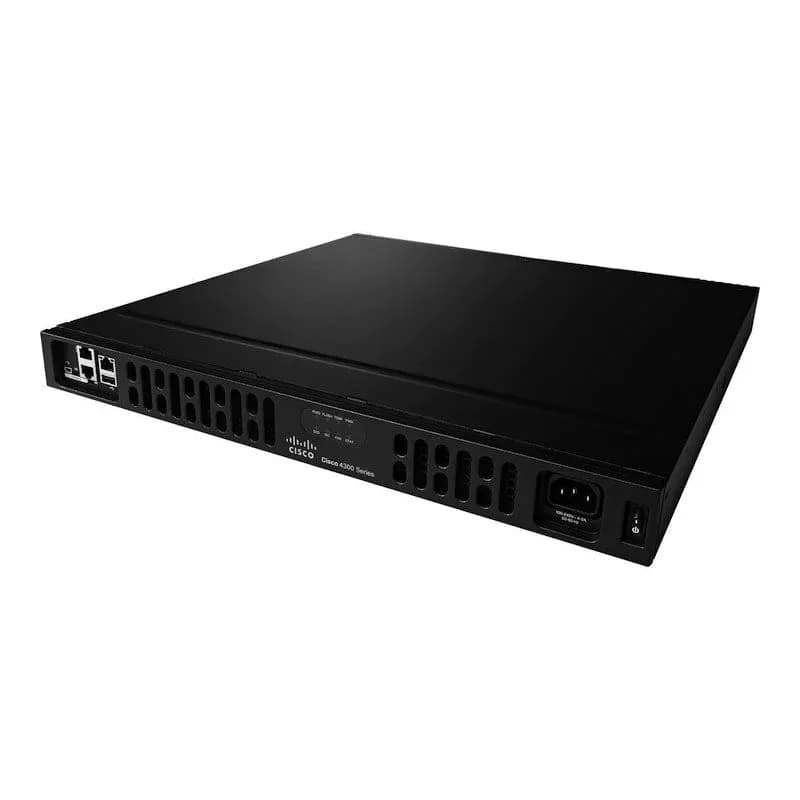

ISR4331-AXV/K9 is the?Cisco ISR 4331 AXV Bundle with PVDM4-32, CUBE-10, IPBase, APP, SEC and UC licenses.?Cisco 4331 Integrated Services Router delivers 100 Mbps to 300 Mbps aggregate throughput and offers one Enhanced service-module (SM-X) slot, which supports for both single- and double-wide service modules provides flexibility in deployment options.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

ISR4331-AXV/K9

Aggregate Throughput

100 Mbps to 300 Mbps

Total onboard WAN or LAN 10/100/1000 ports

3

RJ-45-based ports

2

SFP-based ports

2

Enhanced service-module (SM-X) slot

1

NIM (Network Interface Modules) slots

2

Onboard ISC slot

1

Memory

4 GB (default) / 16 GB (maximum)

Flash Memory

4 GB (default) / 16 GB (maximum)

Power-supply options

Internal: AC and PoE

Rack height

1 RU

Dimensions (H x W x D)

44.45 x 438.15 x 438.15 mm

Product Details

Note:

①

USB Type B mini port

⑤

Management port

②

Serial console port

⑥

LEDs

③

USB Type A port

⑦

AC Power

④

AUX Port

⑧

Power switch

The LEDs include eight indicators.

Table 2 shows the LED descriptions.

LEDs

Represents

Color

Description

POE0

POE PSU

Green

PoE is on and providing power.

Amber

PoE is in a failed condition.

Off

PoE supply is not present.

FLASH

System Flash Status

Blinking Green

Compact flash/eUSB flash is present and currently being accessed.

TEMP

Temperature Status

Solid green

All temperature sensors in the system are within acceptable range.

Amber

One or more temperature sensors in the system are outside the acceptable range.

Off

Temperature is not being monitored.

PWR

System Power

Green

System power is on and functioning correctly.

Green blinking

System power is in the process of shutting down.

Amber

System power is up, but low level initialization failed.

Amber blinking

System power is up, but the system failed to come out of reset.

Off

System power is off.

SSD

mSATA Slot Status

Green

SSD mSATA is present and enabled.

Amber

Initialized with error.

Off

Not present.

ISC

ISC Slot Status

Green

PVDM4 is present and enabled.

Amber

Initialized with error.

Off

Not present.

FAN

Fan Status

Green

All fans are operating.

Amber

One fan has stopped working.

Blinking Amber

Two or more fans have stopped working, or the fan tray has been removed.

Off

Fans are not being monitored.

STAT

System Status

Solid green

System operating normally.

Blinking amber

BIOS/Rommon is booting.

Amber

BIOS/Rommon has completed booting, and system is at Rommon prompt or booting platform software.

Off

System is not out of reset or BIOS image is not loadable.

Note:

①

RJ45 Ports

③

NIM Slots

②

SFP Ports

④

SM-X Slot

·① & ② : These four ports include one combo port, one RJ45 port and one SFP port. It means the RJ45 and SFP in the combo port can’t be used at the same time.

·NIM slots support one double-wide or two signal-wide modules.

·An SM-X slot can be converted into a Network Interface Module (NIM) slot using an optional carrier card.

The Modules, Cards, Licenses & Accessories

Table 3 shows some recommended modules, cards, licenses and accessories.

Items

Models

Descriptions

Console and Auxillary Cables

CAB-AUX-RJ45

Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M

CAB-ETH-S-RJ45

Cisco Router Cable CAB-ETH-S-RJ45

CAB-CONSOLE-RJ45

Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Licenses

L-SL-4330-APP-K9=

Cisco AppX license L-SL-4330-APP-K9= with 750 conns/ISRWAAS or 1300 conns/vWAAS for ISR4331

Network Interface Modules

NIM-1MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

NIM-2CE1T1-PRI

Cisco Multiflex Trunk Voice and WAN network interface module

NIM-4E/M

Analog voice network interface card (ear and mouth)

NIM-2FXS

Cisco Analog voice network interface card NIM-2FXS

NIM-2FXS/4FXO

Cisco Analog voice network interface card NIM-2FXS/4FXO

NIM-8MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

SFPs for On-Board GE Ports

GLC-SX-MMD

Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Table 4 shows the comparison.

Technical Specifications

ISR4331/K9

ISR4331-AXV/K9

Description

Cisco 4000 Router, 100Mbps-300Mbps system throughtput, 2 WAN/LAN ports, 2 SFP ports, multi-Core CPU,1 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC

Cisco ISR 4331 AXV Bundle with PVDM4-32, CUBE-10, IPBase, APP, SEC and UC licenses.

Aggregate Throughput

100 Mbps to

300 Mbps

?

Total onboard WAN or LAN 10/100/1000 ports

3

?

RJ-45-based ports

2

?

SFP-based ports

2

?

Enhanced service-module slots

1

?

Get more information

ISR4331-AXV/K9 Specification

Cisco ISR4331-AXV/K9 Specification

Product Number

ISR4331-AXV/K9

Product Description

Cisco ISR 4331 AXV Bundle with PVDM4-32, CUBE-10, IPBase, APP, SEC and UC licenses.

Aggregate Throughput

100 Mbps to 300 Mbps

Total onboard WAN or LAN 10/100/1000 ports

3

RJ-45-based ports

2

SFP-based ports

2

Enhanced service-module slots

1

Doublewide service-module slots

0

NIM slots

2

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

16 GB

Default memory DDR3 ECC DRAM (data plane)

NA

Maximum memory DDR3 ECC DRAM (data plane)

NA

Default memory DDR3 ECC DRAM (control/services plane)

NA

Maximum memory DDR3 ECC DRAM (control/services plane)

NA

Default flash memory

4 GB

Maximum flash memory

16 GB

External USB 2.0 slots (type A)

1

USB console port -type B mini (up to 115.2 kbps)

1

Serial console port – RJ45 (up to 115.2 kbps)

1

Serial auxiliary port – RJ45

(up to 115.2 kbps)

1

Power-supply options

Internal: AC and PoE

Redundant power supply

N/A

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

3 to 1.3A

AC input surge current

60 A peak and less than 5 Arms per half cycle

Typical power (no modules) (watts)

42

Maximum power with AC power supply (watts)

250

Maximum power with PoE power supply (platform only) (watts)

530

Maximum endpoint PoE power available from PoE power supply (watts)

250
