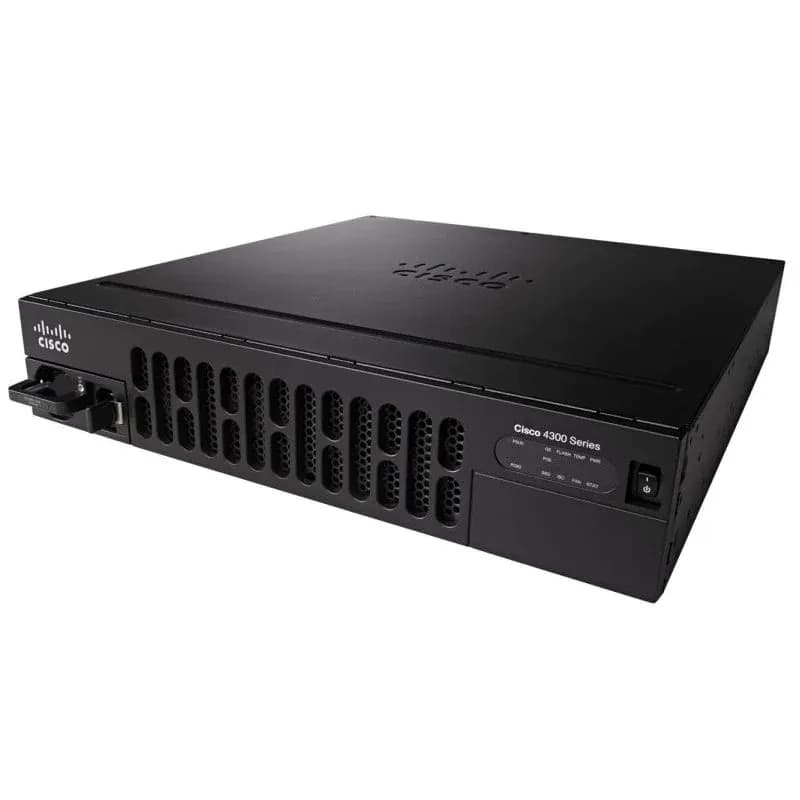

Cisco ISR 4351 AXV Bundle.PVDM4-64 w/APP.SEC.UC lic.CUBE-25

Model:

ISR4351-AXV/K9 – Cisco Router 4000 Series

Brand:

Cisco

ISR4351-AXV/K9 Overview

Cisco 4351 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 200 Mbps to 400 Mbps aggregate throughput. ISR4351-AXV/K9 is the Cisco ISR 4351 router with AXV Bundle.PVDM4-64 w/APP.SEC.UC lic.CUBE-25.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

ISR4351-AXV/K9

Aggregate Throughput

200 Mbps to 400 Mbps

Total onboard WAN or LAN 10/100/1000 ports

3

RJ-45-based ports

3

SFP-based ports

3

Enhanced service-module (SM-X) slot

2

NIM (Network Interface Modules) slots

3

Onboard ISC slot

1

Memory

4 GB (default) / 16 GB (maximum)

Flash Memory

4 GB (default) / 16 GB (maximum)

Power-supply options

Internal: AC, DC (roadmap), and PoE

Rack height

2 RU

Dimensions (H x W x D)

43.9 x 438.15 x 507.2 mm

Product Details

Note:

①

Power supply unit

③

Router power On/Off switch

②

Router fan tray

④

LEDs

·The router fan tray is hidden behind the removable bezel.

·LEDs include ten indicators.

Note:

①

USB Type A port

⑦

SFP port (GE 0/0/0)

②

GE management port

⑧

RJ-45 port (GE/0/0/2)

③

USB Type B mini port

⑨

NIM slots

④

Auxiliary port

⑩

Ground connection

⑤

Console port

⑪

Enhanced Service Module (SM-X) slot

⑥

RJ-45 port (GE 0/0/1)

·The NIMs support 2 single-wide or 1 double-wide.

The Modules, Cards, Licenses & Accessories

Table 2 shows some recommended modules, cards, licenses and several cables.

Items

Models

Descriptions

Console and Auxillary Cables

CAB-AUX-RJ45

Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M

CAB-ETH-S-RJ45

Cisco Router Cable CAB-ETH-S-RJ45

CAB-CONSOLE-RJ45

Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Licenses

L-SL-4350-APP-K9=

Cisco AppX license L-SL-4350-APP-K9= with 1300 conns/ISRWAAS or vWAAS for ISR4351

Network Interface Modules

NIM-1MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

NIM-2CE1T1-PRI

Cisco Multiflex Trunk Voice and WAN network interface module

NIM-4E/M

Analog voice network interface card (ear and mouth)

NIM-2FXS

Cisco Analog voice network interface card NIM-2FXS

NIM-2FXS/4FXO

Cisco Analog voice network interface card NIM-2FXS/4FXO

NIM-8MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

SFPs for On-Board GE Ports

GLC-SX-MMD

Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Table 3 shows the comparsion chart.

Models

ISR4351-AXV/K9

ISR4351/K9

Description

Cisco ISR 4351 AXV Bundle.PVDM4-64 w/APP.SEC.UC lic.CUBE-25

Cisco ISR 4351 (3GE,3NIM,2SM,4G FLASH,4G DRAM,IP Base)

Aggregate Throughput

200 Mbps to 400 Mbps

200 Mbps to 400 Mbps

Total onboard WAN or

LAN 10/100/1000 ports

3

3

RJ-45-based ports

3

3

SFP-based ports

3

3

Enhanced service-module slots

2

2

NIM slots

3

3

Onboard ISC slot

1

1

Rack height

2

2

Get more information

ISR4351-AXV/K9 Specification

ISR4351-AXV/K9 Specification

Description

Cisco ISR 4351 AXV Bundle.PVDM4-64 w/APP.SEC.UC lic.CUBE-25

Aggregate Throughput

200 Mbps to 400 Mbps

Total onboard WAN or LAN 10/100/1000 ports

3

RJ-45-based ports

3

SFP-based ports

3

Enhanced service-module slots

2

Doublewide service-module slots

1 (assumes no singlewide SM-X modules installed)

NIM slots

3

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

16 GB

Default memory DDR3 ECC DRAM (data plane)

NA

Maximum memory DDR3 ECC DRAM (data plane)

NA

Default memory DDR3 ECC DRAM (control/services plane)

NA

Maximum memory DDR3 ECC DRAM (control/services plane)

NA

Default flash memory

4 GB

Maximum flash memory

16 GB

External USB 2.0 slots (type A)

2

USB console port -type B mini (up to 115.2 kbps)

1

Serial console port – RJ45 (up to 115.2 kbps)

1

Serial auxiliary port – RJ45

(up to 115.2 kbps)

1

Power-supply options

Internal: AC, DC, and PoE

Redundant power supply

N/A

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

7.1 to 3.0A

AC input surge current

60 A peak and less than 12 Arms per half cycle

Typical power (no modules) (watts)

48

Maximum power with AC power supply (watts)

430

Maximum power with PoE power supply (platform only) (watts)

990

Maximum endpoint PoE power available from PoE power supply (watts)

500
