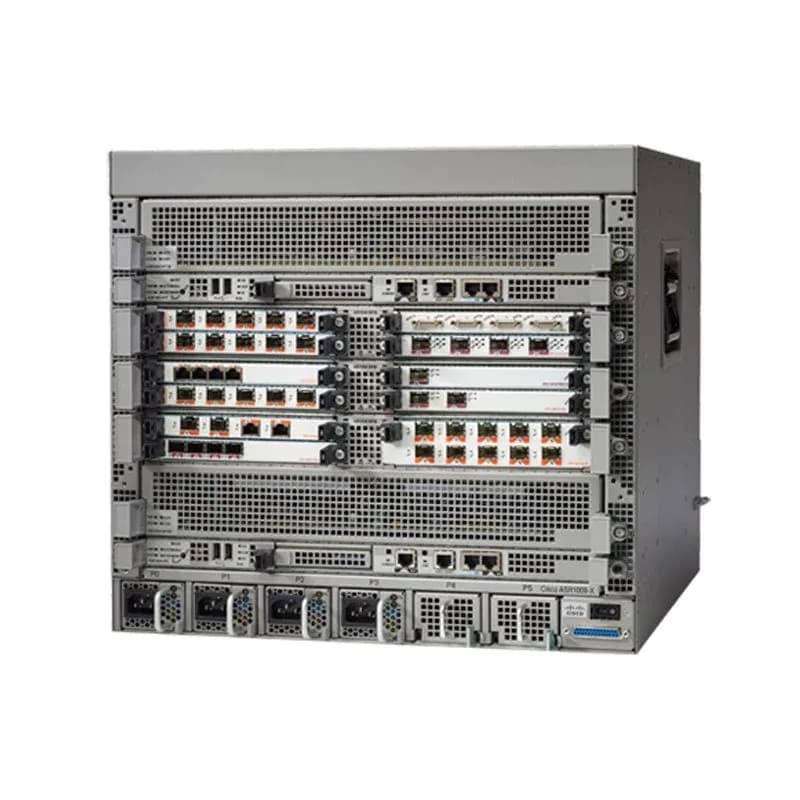

ASR1009-X Router Chassis

Model:

ASR1009-X – Cisco ASR 1000 Series Router

Brand:

Cisco

Overview

ASR1009-X Overview

The Cisco ASR 1009-X Router is for medium and high-end enterprises with up to 200 Gbps total system bandwidth in a 9-rack-unit (9RU) form factor. With the ASR 1009-X, you can benefit from best-in-class service performance and network resilience through redundant hardware and carrier class software.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

ASR1009-X

Default memory

8-GB DRAM RP2

8-GB DRAM RP3

Number of SIPs or Ethernet line cards supported

3

Shared port adapters

12 SPA slots

Ethernet port adapters

6 EPA slots

Route processor

2 route-processor slots

Network interface module

No

Weight

154 lb (70 kg)

Dimensions (W x D x H)

437.4 mmÿxÿ461.0 mmÿxÿ399.3 mm

Product Details

Note:

?

Power shelf that has power supplies from P0 to P5

?

Slot F1

?

Slot R1

?

Slot 2

?

Slot 1

?

Slot 0

?

Slot F0

?

Slot R0

?

Standby/ON switch

?

DB-25 Alarm connector

The Cards?License?USB Flash ?Embedded Services Processor

Table 2 shows the recommended elements for the ASR1009-X.

Model

Description

card

ASR1000-RP2

Cisco ASR1000 Route Processor 2, 8GB DRAM

License

FLASR1-SBC-RTU

DBE Base Right-To-Use Lic for Release 2.3.x and prior

FLASR1-BB-RTU

Broadband Right-To-Use Feature Lic for ASR1000 Series

FLASR1-IPSEC-RTU

Encryption Right-To-Use Feature Lic for ASR1000 Series

USB Flash

MEMUSB-1024FT

1GB USB Flash Token

Embedded Services Processor

ASR1000-ESP40

Cisco ASR1000 Embedded Services Processor, 40G

Compare to Similar Items

Table 3ÿshows the comparison between ASR1009-X and ASR1002-X.

Model

ASR1009-X.

ASR1002-X

Default memory

8-GB DRAM RP2

8-GB DRAM RP3

4-GB DRAM shared across route processor, ESP, and SIP

Number of SIPs or Ethernet line cards supported

3

Integrated in chassis

Shared port adapters

12 SPA slots

3 SPA slots

Ethernet port adapters

6 EPA slots

N/A

Route processor

2 route-processor slots

Integrated in the chassis: Cisco ASR 1002-X Series Route Processor

with Quad Core Processor

Network interface module

No

No

Weight

154 lb (70 kg)

39.05 lb (17.72 kg)

Dimensions (W x D x H)

437.4 mm x 461.0 mm x 399.3 mm

437.4 mm x 461.0 mm x 88.9 mm
