Cisco ONE - ASR1002-HX

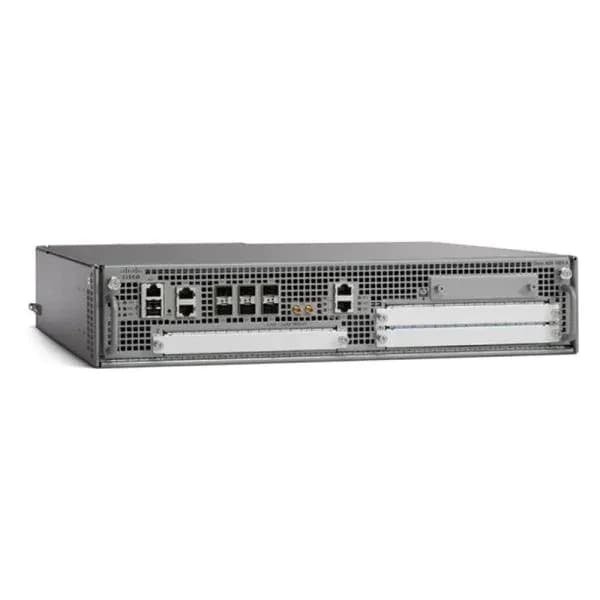

Cisco ONE – ASR1002-HX

Model:

C1-ASR1002-HX/K9 – Cisco 1000 Series ASR Platform

Brand:

Cisco

Overview

C1-ASR1002-HX/K9 Overview

C1-ASR1002-HX/K9 is the ASR1002-HX with Cisco ONE Software. Cisco ONE Software suites provide a cost-effective and flexible way for you to acquire software for your data center, routing, switching, and wireless needs.

Cisco ASR1002-HX System is one of the ASR 1000 Series routers, providing 4x10GE+4x1GE enabled ports?upgradeable to 8xGE and 8x10GE with a license, 2x Power Supplies, and optional crypto.

Quick Spec

Table 1 shows the quick spec.

Part Number

C1-ASR1002-HX/K9

Default memory

16-GB DRAM shared across route processor, ESP, and MIP

Number of SIPs or Ethernet line cards supported

Integrated in?chassis

Ethernet port adapters

1 EPA slot

Cisco ASR 1000 Series ESP

Integrated in?chassis

Route processor

Integrated in the chassis: Cisco ASR 1002-HX Series Route Processor

Redundancy

Software: Yes

Built-in Gigabit Ethernet ports

Yes: 8 Gigabit Ethernet SFP ports

Built-in 10 Gigabit Ethernet port

Yes: Eight 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports

Note:Built-in 10-GB ports cannot be reduced to 1-GB speed.

Network interface module

Yes

Dimension

Height: 3.5 in. (88.9 mm)

Width: 17.3 in. (439.4 mm)

Depth: 19.25 in. (489.0 mm)

The Supported SFP Transceivers

Table 2 shows the recommended SFP and SFP+ of C1-ASR1002-HX/K9.

Model

Description

GLC-SX-MMD

1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM

SFP-GE-T

1000BASE-T SFP (NEBS 3 ESD)

GLC-BX-U

1000BASE-BX SFP, 1310nm

GLC-BX-D

1000BASE-BX SFP, 1490nm

GLC-TE

1000BASE-T SFP transceiver module for category 5 copper wire

GLC-SX-MM

GE SFP, LC connector SX transceiver

GLC-LH-SM

GE SFP, LC connector LX/LH transceiver

GLC-EX-SMD

GE SFP, LC Connector, EX transceiver

GLC-ZX-SMD

1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

SFP-10G-SR

10GBASE-SR SFP+ Module for MMF

SFP-10G-SR-X=

10GBASE-SR SFP+ Module for Extended Temp range

SFP-10G-LR

10GBASE-LR SFP+ Module for SMF

SFP-H10GB-ACU7M

10GBASE-CU SFP+ Cable 7 Meter, active

SFP-H10GB-ACU10M

10GBASE-CU SFP+ Cable 10 Meter, active
