Model:

C1-ASR1002-X/K9 – Cisco 1000 Series ASR Platform

Brand:

Cisco

Overview

C1-ASR1002-X/K9 Overview

C1-ASR1002-X/K9 is the ASR1002-X with Cisco ONE Software. Cisco ONE Software suites provide a cost-effective and flexible way for you to acquire software for your data center, routing, switching, and wireless needs.

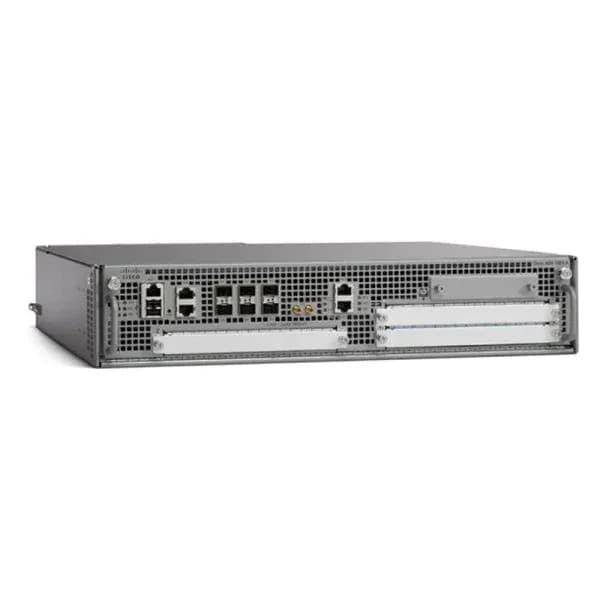

Cisco ASR 1002-X router is delivered into 2 rack unit chassis, the route processor for control plane embedded the services processor for data plane traffic as well as the carrier card which is designed to house I/O modules, share port adopters all integrated in the chassis. ASR 1002-X router comes with 6 build-in SFP ports and 3 box slots for I/O connectivity. The integrated embedded service processors offer 4 levels of system performance: 5Gbps which is default, 10, 20, 36Gbps all through software license upgrade without need for any additional hardware. The integrated the route processor comes by default with 4Gb DRAM, upgradeable to 8, 16Gb.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

C1-ASR1002-X/K9

Rack Height

2RU

System Bandwidth

5G (default) / 10G, 20G,36G (upgrade)

Router Processor (RP)

Dual-core 2.13Ghz processor

Build-in Gigabit Ethernet port

6 x SFP ports

Redundancy

Software (license purchase separately)

Cisco ASR 1000 Series ESP

1 ESP slot

SIP and Ethernet line card

Integrated ASR 1000-SIP10, not upgradable

Rack-mounting

19-inch

DRAM Memory

4GB-shared across RP, ESP, and SIP

Flash Memory

8 GB

Shared port adapters

3 SPA slots

External USB flash memory

4-GB USB flash-memory support

Product Details

Notes:

?Built-in 6x1GE SPA in slot 0 ? ? ? ? ? ? ? ? ?SPA slot 1 ? ? ? ? ? ? ? ? ? ? ? ? ??SPA slot 3 ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??SPA slot 2

ÿASR1002-X also support DC power supply but the rear panel is different.

Caution! Use only AC power supplies or DC power supplies in the Cisco ASR 1002-X Router. Do not mix power supply types.

The Configuration

Table 2 shows the recommended configuration.

Items

Quantity

Descriptions

ASR1K-BB

1

ASR1K-BNG/LNS ? tracking only

L-SLASR1-IPB=

1

Cisco ASR 1000 IP BASE License

M-ASR1002X-4GB

1

Cisco ASR 1002-X 4GB DRAM

SASR1K2XU-313S

1

Cisco ASR 1002-X IOS XE UNIVERSAL ? NO ENCRYPTION

ASR1002-PWR-AC

2

Cisco ASR1002 AC Power Supply

CAB-AC-RA

2

Power Cord, 110V, Right Angle
