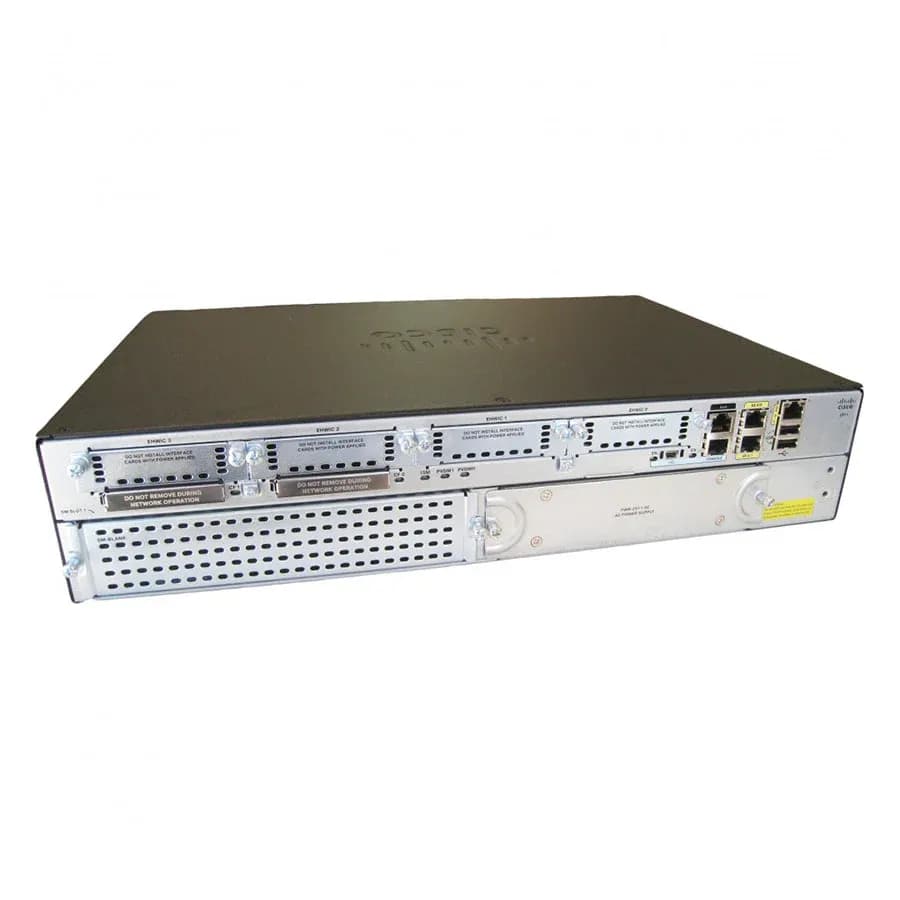

Cisco 2911 with 3 onboard GE, 4 EHWIC slots, 2 DSP slots, 1 ISM slot, 256MB CF default, 512MB DRAM default, IP Base

Model:

C2911-CME-SRST/K9 Cisco Router Voice Bundle

Brand:

Cisco

C2911-CME-SRST/K9 Overview

C2911-CME-SRST/K9 is a Cisco 2911 router bundled with Voice Bundle w/PVDM3-16, FL-CME-SRST-25, UC License PAK.

When Unified CME is used in SRST mode, it provides more call processing features for the IP phones than those are available with the SRST feature on a router. In addition, to the SRST features such as call preservation, auto-provisioning, and failover, Unified CME in SRST mode also provides most of the Unified CME telephony features for the SCCP phones, including:

Paging

Conferencing

Hunt groups

Basic automatic call distribution (B-ACD)

Call park, call pickup, call pickup groups

Overlay-DN, softkey templates

Cisco IP Communicator

Cisco Unified Video Advantage

Integration with Cisco Unity with MWI support at remote sites, with distributed Microsoft Exchange or IBM Lotus Domino server

Table 1 shows the Quick Specs of the C2911-CME-SRST/K9.

Product Code

C2911-CME-SRST/K9

Bundle

2911 Voice Bundle w/PVDM3-16,FL-CME-SRST-25, UC License PAK

Rack Units

2RU

Interfaces

3 integrated 10/100/1000 Ethernet ports (RJ-45 only)

Expansion Slot(s)

1 service module slot

1 Internal Service Module slot

2 onboard digital signal processor (DSP) slots

4 enhanced high-speed WAN interface card slots

RAM

512 MB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

43.8 cm x 30.5 cm x 8.9 cm

Note:

?

On/Off switch

?

Optional RPS adapter(blank panel shown)

?

AC power connector

?

LEDs area

Note:

?

Compact flash 0 and 1 (0, right)

?

10/100/1000 Ethernet port GE 0/0

?

EHWIC 0,1,2 and 3 (0, far right)

?

USB 1

?

USB serial port

?

Ground connector

?

Console port

?

USB 0

?

AUX

?

AC or DC or AC-POE Power module

?

10/100/1000 Ethernet port GE 0/1 and GE 0/2 (0/1, down)

?

Service module slot 1

Modularity Features

Table 3 shows some recommended modules for this router.

Models

Description

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card vb

EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEMUSB-1024FT

1GB USB Flash Token

Compare to Similar Routers

Table 4 shows the comparison between CISCO2911/K9 and C2911-CME-SRST/K9.

Model

CISCO2911/K9

C2911-CME-SRST/K9

Bundle

N/A

2911 Voice Bundle w/PVDM3-16,FL-CME-SRST-25, UC License PAK

Interface

3GE

3GE

EHWIC slot

4

4

SIM Slot

1

1

SFP

0

0

Memory

512 MB (installed) / 2 GB (max)

512 MB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

256 MB (installed) / 8 GB (max)

Rack Unit

2U

2U
