VPN ISM module HSEC bundles for 2911 ISR platform

Model:

CISCO2911-HSEC+/K9 Cisco 2900 Series Routers

Brand:

Cisco

CISCO2911-HSEC+/K9 Overview

CISCO2911-HSEC+/K9 is the 2911 ISR platform with VPN ISM module HSEC bundles. The Cisco 2911 router, supporting voice module, is designed for medium-sized branch.

Table 1 shows the Quick Specs.

Product Code

CISCO2911-HSEC+/K9

Bundle

VPN ISM module HSEC bundles for 2911 ISR platform

Rack Units

2RU

Interfaces

3 integrated 10/100/1000 Ethernet ports (RJ-45 only)

Expansion Slot(s)

1 service module slot

1 Internal Service Module slot

2 onboard digital signal processor (DSP) slots

4 enhanced high-speed WAN interface card slots

RAM

512 MB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

43.8 cm x 30.5 cm x 8.9 cm

Product Details

Note:

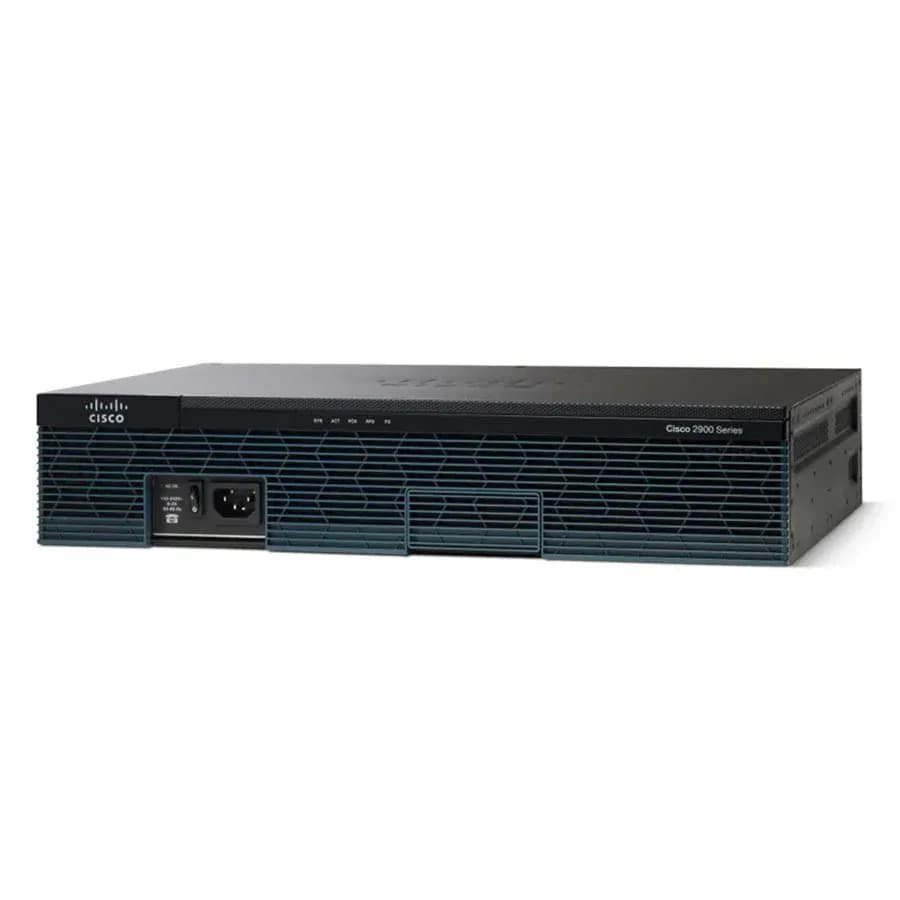

? On/Off switch ?? AC power connector ???Optional RPS adapter (blank panel shown) ?? LEDs area

*The switch and power connector of the 2911 is on the front bezel, below the LEDs. Furthermore, this router provides an optional Redundant Power System (RPS) adapter.

Note:

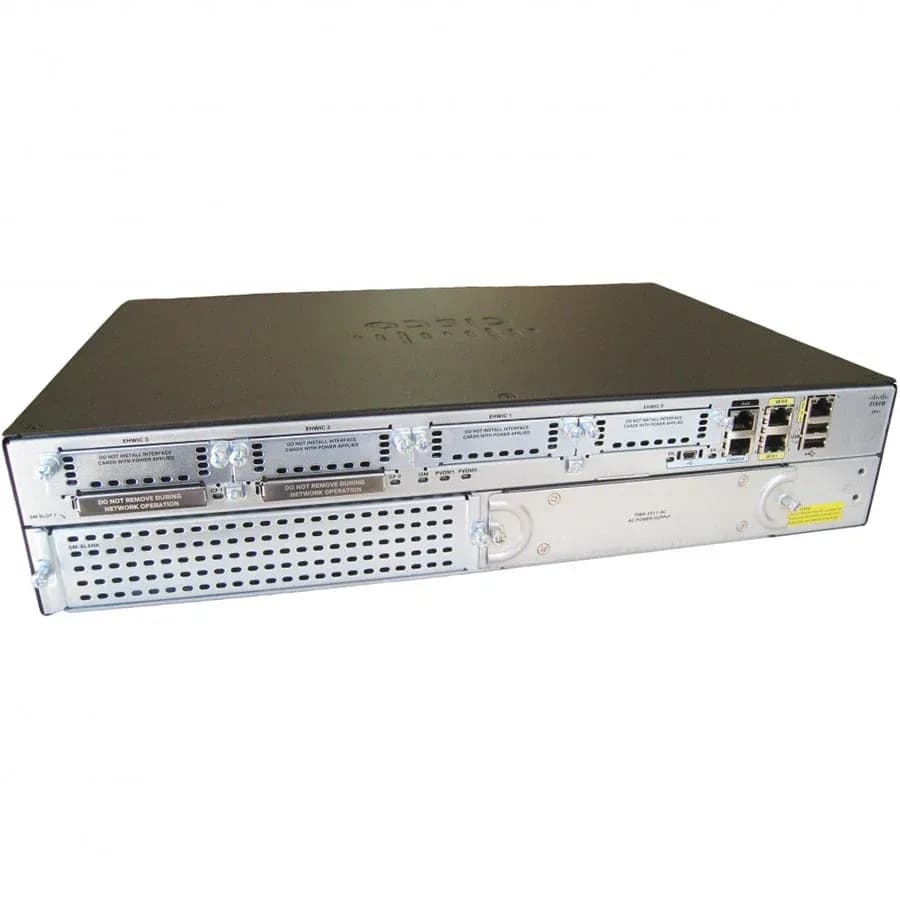

?? Compact flash 0 and 1 (0, right) ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? EHWIC 0,1,2 and 3 (0, far right) ? ? ? ? ? ? ? ? USB serial port ? ??? Console port ? ? ? ? ? ?? AUX ? ? ? ? ?

? 10/100/1000 Ethernet port GE 0/1 and GE 0/2 (0/1, down) ? ??? 10/100/1000 Ethernet port GE 0/0 ? ? ? ? ?? USB 1 ? ? ? ? ? ? ? ? ? ?? Ground connector ? ?? USB 0

? AC or DC or AC-POE Power module ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Service module slot 1?

Cards and Licenses

Table 2 shows some recommended models for this router.

Cards

Description

VWIC3-2MFT-G703

Cisco Voice/WAN Card VWIC3-2MFT-G703

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card vb?

EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

PVDM3-16

16-channel high-density voice DSP module

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEMUSB-1024FT

1GB USB Flash Token

Licenses

Description

L-SL-29-APP-K9=

Cisco Application Experience License ISR 2900 Series – includes licenses for: AppX, DATA and WAASX

L-SL-29-UC-K9=

Cisco 2900 License L-SL-29-UC-K9= Unified Communication E-Delivery PAK for Cisco 2901-2951
