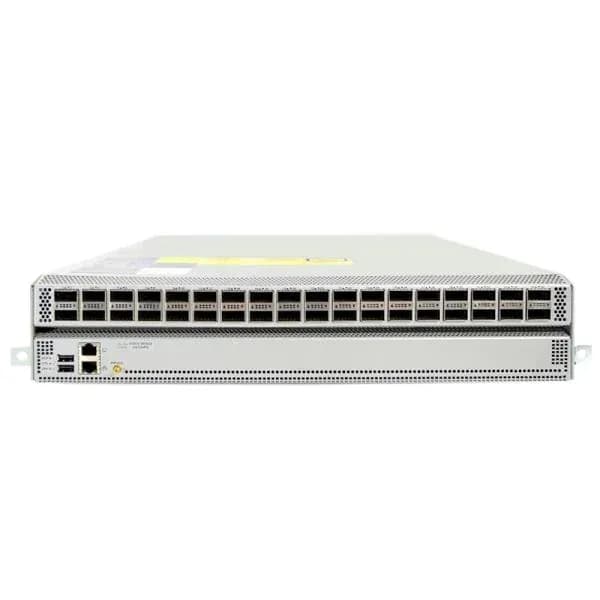

Nexus 9336 ACI Spine switch with 36p 40G QSFP

Model:

N9K-C9336PQ – Cisco Nexus 9000 Series

Brand:

Cisco

N9K-C9336PQ Overview

N9K-C9336PQ is the Nexus 9336 ACI Spine switch with 36p 40G QSFP. The Cisco Nexus 9336PQ ACI Spine Switch is a 2-Rack-Unit (2RU) spine switch for Cisco ACI that supports 2.88 Tbps of bandwidth and 2.3 billion packets per second (bpps) across 36 fixed 40 QSFP+ ports. Cisco Nexus 9300 platform leaf switches are Layer 2 and 3 nonblocking 10 and 40 Gigabit Ethernet switches with up to 2.56 Terabits per second (Tbps) of internal bandwidth.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

N9K-C9336PQ

Physical

36-port 40G QSFP ports

1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)

80 Plus Platinum-rated power supplies that provide at least 90% efficiency with 20% utilization

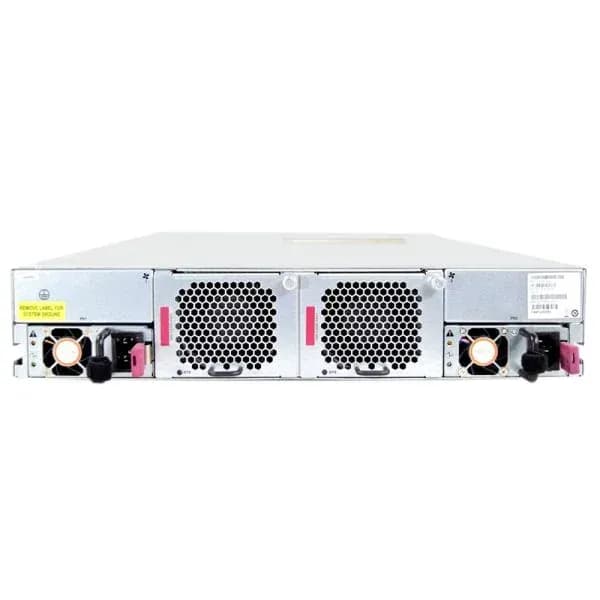

Hot-swappable, dual fan trays with redundant fans

Port-side intake or Port side exhaust airflow direction

System memory: 16GB

SSD: 64GB

USB: 2 ports

RS-232 serial console ports: 1

Management ports: 1 x 10/100/1000BASE-T

Physical (H x W x D)

3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm)

Weight (chassis)

34.4 lb

Product Details

The Accessories

Table 2 shows the supported accessories.

Model

Description

N9K-C9300-FAN3

Nexus 9300 Fan 3, Port-side Intake

N9K-C9300-FAN3-B

Nexus 9300 Fan 3, Port-side Exhaust

NXA-FAN-160CFM-PI

Nexus Fan, 160CFM, port side intake airflow

NXA-FAN-160CFM-PE

Nexus Fan, 160CFM, port side exhaust airflow

NXA-FAN-35CFM-PI

Nexus Fan, 35CFM, port side intake airflow

NXA-FAN-35CFM-PE

Nexus Fan, 35CFM, port side exhaust airflow

N9K-PAC-1200W

Nexus 9300 1200W AC PS, Port-side Intake

N9K-PAC-1200W-B

Nexus 9300 1200W AC PS, Port-side Exhaust

NXA-PAC-1100W-PE2

Nexus 1100W AC PS, Port-side Exhaust

NXA-PAC-1100W-PI2

Nexus 1100W AC PS, Port-side Intake

NXA-PAC-1200W-PE

Nexus 1200W AC PS, Port-side Exhaust

NXA-PAC-1200W-PI

Nexus 1200W AC PS, Port-side Intake

N9K-PUV-1200W

Nexus 1200W, 200-277AC,240-380DC, Dual airflow PSU

UCS-PSU-6332-DC

930W -48V DC PS, Port-side Exhaust

UCSC-PSU-930WDC

930W -48V DC PS, Port-side Intake

NXA-PDC-930W-PE

Nexus 930W -48V DC PS, Port-side Exhaust

NXA-PDC-930W-PI

Nexus 930W -48V DC PS, Port-side Intake

Compare to Similar Items

Table 3 shows the comparison.

Product Code

N9K-C9336PQ

N9K-C9332C

Physical

36-port 40G QSFP ports

1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)

80 Plus Platinum-rated power supplies that provide at least 90% efficiency with 20% utilization

Hot-swappable, dual fan trays with redundant fans

Port-side intake or Port side exhaust airflow direction

System memory: 16GB

SSD: 64GB

USB: 2 ports

RS-232 serial console ports: 1

Management ports: 1 x 10/100/1000BASE-T

32-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports

1100 watt (W) AC, DC or HVAC/HVDC power supplies (up to 2)

Hot-swappable, 5 fans with redundancy

System memory: 16 GB

SSD: 256GB

USB: 1 port

RS-232 serial console ports: 1

Management ports:2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)

Broadwell-DE CPU: 4 cores

Physical (H x W x D)

3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm)

1.7 x 17.3 x 22.9 in. (4.4 x 43.9 x 58.1 cm)

Weight (chassis)

34.4 lb

25.1lb (11.4kg) with power supplies and fans, 19 lb (8.6kg) without power supplies and fans
