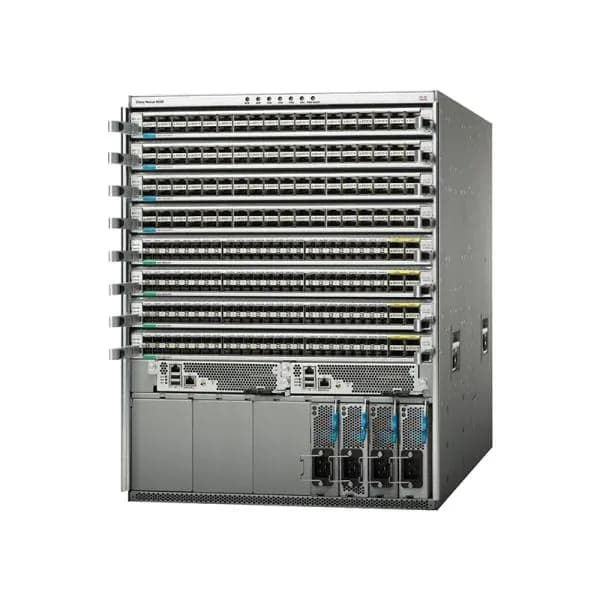

Nexus 9508 Chassis Bundle with 1 Sup, 3 PS, 2 SC, 3 FM, 3 FT

Model:

N9K-C9508-B1 Switch

Brand:

Cisco

N9K-C9508-B1 Overview

N9K-C9508 is the Nexus 9508 Chassis with 8 lines card slots. The Cisco Nexus 9500 platform, part of the Cisco Nexus 9000 Series, offers three modular options: the Cisco Nexus 9504 Switch with 4 slots, the Cisco Nexus 9508 Switch with 8 slots, and the Cisco Nexus 9516 Switch with 16 slots. All three switches use the same supervisor, system controller, power supplies, and line cards. The Cisco Nexus 9500 platform consists of Layer 2 and 3 nonblocking Ethernet switches with backplane bandwidth of up to 115.2 Terabits per second (Tbps). The Cisco Nexus 9504, 9508, and 9516 Switches support 1, 10, 25, 40, 50, and 100 Gigabit Ethernet interfaces through a comprehensive selection of modular line cards. Configurable with up to 2304 x 10 Gigabit Ethernet ports, 2048 x 25 Gigabit Ethernet ports, 576 x 40 Gigabit Ethernet ports, 1024 x 50 Gigabit Ethernet ports, or 512 x 100 Gigabit Ethernet ports, they provide ample capacity for both access- and aggregation-layer deployments.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

N9K-C9508-B1

Chassis

Up to 8 line cards

Up to 8 power supplies

Up to 6 fabric modules

Up to 2 system controllers

Up to 2 supervisors

Up to 3 fan trays

Physical (H x W x D)

22.70 x 17.50 x 31.76 in. (57.78 x 44.50 x 80.67 cm)

Weight (chassis)

150 lb (68.2 kg)

The Modules

Table 2 shows the supported accessories.

Model

Description

N9K-SUP-B+

Nexus 9500 6-Core/12-Thread Supervisor

N9K-SUP-B

Nexus 9500 6-Core/12-Thread Supervisor

N9K-SC-A

Nexus 9500 System Controller

N9K-PAC-3000W-B

Nexus 9500 3000W 200V to 240V AC AC PS, Port Side Intake

N9K-PDC-3000W-B

Nexus 9500 3000W -48V-60V DC PS, Port Side Intake

N9K-PUV-3000W-B

Nexus 9500 3000W 200V to 277V AC or 240V to 380V DC Universal high voltage AC/DC PS, Port Side Intake

N9K-C9508-FAN

Fan Tray for Nexus 9508 chassis

Compare to Similar Items

Table 3 shows the comparison.

Product Code

N9K-C9508

N9K-C9504

Chassis

Up to 8 line cards

Up to 8 power supplies

Up to 6 fabric modules

Up to 2 system controllers

Up to 2 supervisors

Up to 3 fan trays

Up to 4 line cards

Up to 4 power supplies

Up to 6 fabric modules

Up to 2 system controllers

Up to 2 supervisors

Up to 3 fan trays

Physical (H x W x D)

22.70 x 17.50 x 31.76 in. (57.78 x 44.50 x 80.67 cm)

12.25 x 17.50 x 33.15 in. (31.1 x 44.50 x 84.20 cm)

Weight (chassis)

150 lb (68.2 kg)

84 lb (38.2 kg)
