Key Applications Web Server, Firewall Application Data Center Optimized, Value IaaS Cloud Computing, Compact Server DNS & Gateway Servers, Firewall Application CDN, Edge Nodes Key Features Single AMD EPYC™ 9004 Series Processor 2 PCIe 5.0 x16 FHFL + 2 PCIe 5.0 x16 FHHL Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN 12 Hot-swap 3.5/2.5" hybrid NVMe/SATA/SAS drive bays

Key Applications

Web Server, Firewall Application

Data Center Optimized, Value IaaS

Cloud Computing, Compact Server

DNS & Gateway Servers, Firewall Application

CDN, Edge Nodes

Key Features

Single AMD EPYC™ 9004 Series Processor

2 PCIe 5.0 x16 FHFL + 2 PCIe 5.0 x16 FHHL

Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN

12 Hot-swap 3.5/2.5″ hybrid NVMe/SATA/SAS drive bays

Product SKUs

A+ Server AS -2015CS-TNR

Motherboard

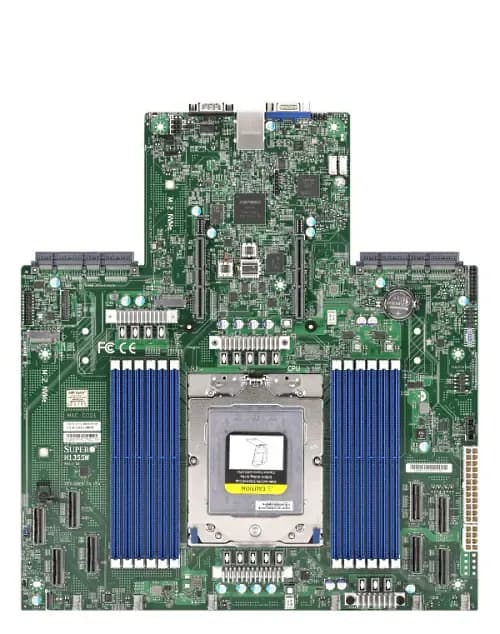

Super H13SSW

Processor

CPU

Single Socket SP5

AMD EPYC™ 9004 Series Processors

Core Count

Up to 128C/256T

Note

Supports up to 360W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 2 double-width or 4 single-width GPU(s)

Supported GPU

NVIDIA PCIe: L40, RTX A4000, RTX 6000 Ada Generation, L40S, L4, A40, A30, A16, A2, A100

View GPU Options

CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect

PCIe

System Memory

Memory

Slot Count: 12 DIMM slots

Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM

View Memory Options

Memory Voltage

1.1V

On-Board Devices

Chipset

System on Chip

Network Connectivity

Via Slim-AIOM

View AIOM Options

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

USB

2 USB 3.0 port(s) (rear)

Video

1 VGA port(s)

Serial

1 COM port(s) (Rear)

TPM

1 TPM header

System BIOS

BIOS Type

AMI 32MB SPI Flash ROM

BIOS Features

ACPI 6.4

Plug and Play (PnP)

SMBIOS 3.5 or later

UEFI 2.8

USB Keyboard support

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

ACPI Power Management

Power-on mode control for AC power loss recovery

Power button override mechanism,

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Voltage

System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support

Chassis

Form Factor

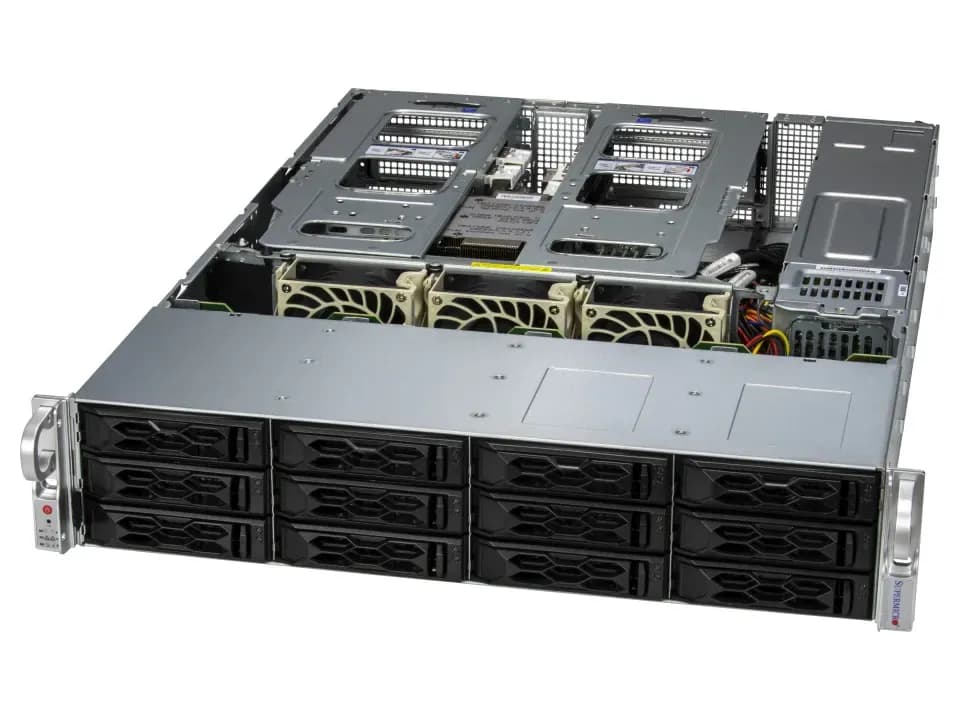

2U Rackmount

Model

CSE-LA26TS-R1K23AWP1

Dimensions and Weight

Height

3.5″ (89 mm)

Width

17.2″ (437 mm)

Depth

25.5″ (648 mm)

Package

11.4″ (H) x 26.7″ (W) x 34.5″ (D)

Weight

Gross Weight: 59 lbs (26.76 kg)

Net Weight: 33 lbs (15 kg)

Available Color

Black front & sliver body

Front Panel

LED

Drive activity

Network activity

Power status

Universal Information (UID)

Buttons

Power On/Off

Universal Information (UID)

Expansion Slots

PCI-Express (PCIe) Configuration

Default

2 PCIe 5.0 x16 FHFL slot(s)

2 PCIe 5.0 x16 FHHL slot(s)

2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Option A

2 PCIe 5.0 x8 FHFL slot(s)

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

Default: Total 12 bay(s)

4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bay(s)

8 front hot-swap 3.5″ SAS*/SATA drive bay(s)

(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

View Drive Options

M.2

2 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110)

View M.2 Options

System Cooling

Fans

3x 8cm heavy duty fans with optimal fan speed control

Air Shroud

1 Air Shroud(s)

Power Supply

2x 1200W Redundant Titanium Level (96%) power supplies

Dimension (WxHxL)

76 x 40 x 336 mm

AC Input

1000W: 100-127Vac / 50-60Hz

1200W: 200-240Vac / 50-60Hz

1200W: 200-240Vdc / 50-60Hz (for CCC only)

+12V

Max: 83A / Min: 0A (100Vac-127Vac)

Max: 100A / Min: 0A (200Vdc-240Vdc)

Max: 100A / Min: 0A (200Vac-240Vac)

5V SB

Max: 4A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
