Key Applications

Virtualization

HPC

CDN, Edge Nodes

Cloud Computing

Data Center Optimized

Storage Headnode

Key Features

All-in-one platform for cloud data centers, based on the OCP Data Center Modular Hardware System (DC-MHS) with flexible I/O and storage configurations

Based on Modular Scalable DeNsity Optimized HPM Form Factor (M-SDNO)

Support DC-SCM module with OpenBMC

Single Intel® Xeon® 6 6700 series processor with E-cores

16 DIMM slots supporting up to 1TB of memory (6700E series CPU)

Support FH DPU and single slot GPU

Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).

Breeze through high throughput workloads with PCIe 5.0 NVMe drive support

Trusted Platform Module (TPM) 2.0 onboard

Product SKUs

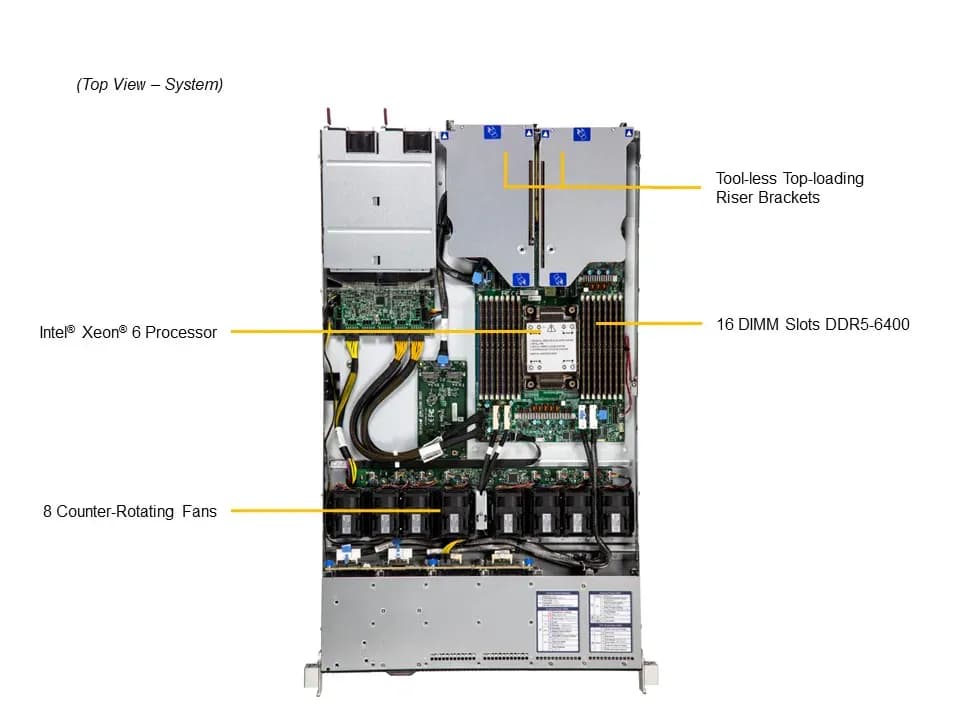

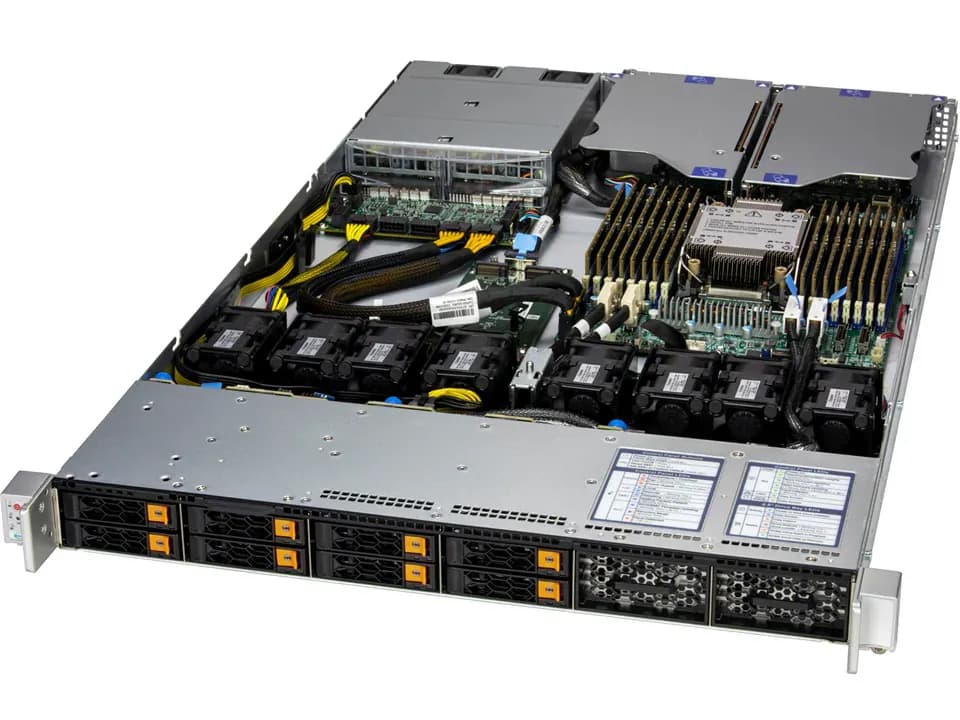

SuperServer SYS-112C-TN

Motherboard

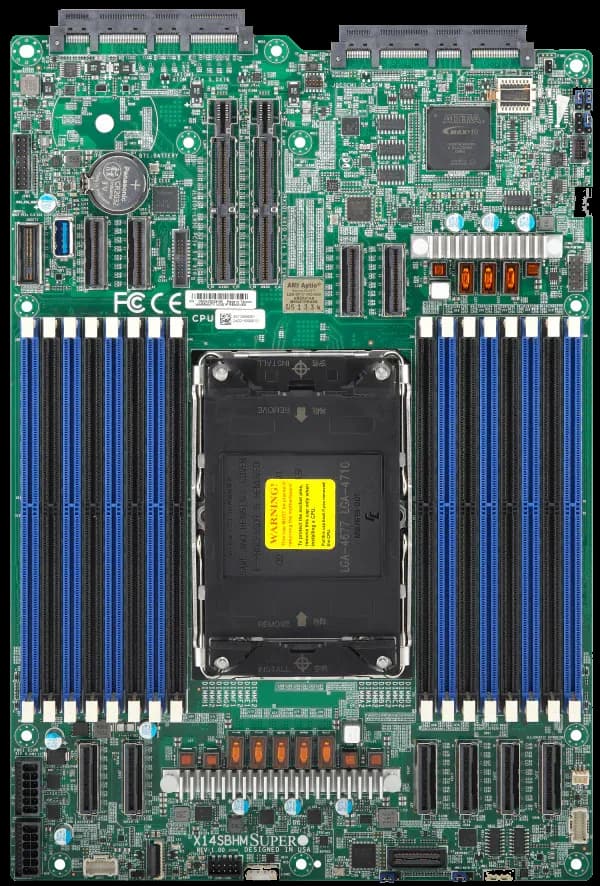

Super X14SBHM

Processor

CPU

Single Socket E2 (LGA-4710)

Intel® Xeon® 6 6700 series processors with E-cores

Core Count

Up to 144C/144T; Up to 108MB Cache

Note

Supports up to 350W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 2 single-width GPU(s)

CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect

System Memory

Memory

Slot Count: 16 DIMM slots/8 Channels

Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM

Max Memory (2DPC): Up to 1TB 5200MT/s ECC DDR5 RDIMM

On-Board Devices

NVMe

NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

Chipset

System on Chip

Network Connectivity

Via Slim-AIOM

View AIOM Options

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated BMC LAN port(s)

USB

2 USB 3.2 Gen1 Type-A port(s) (rear)

Video

1 Mini-DP port(s) (Rear)

TPM

1 TPM header

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

ACPI/APM Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

1U Rackmount

Model

CSE-MD101TS-R000NDP

Dimensions and Weight

Height

1.7″ (43 mm)

Width

17.2″ (437 mm)

Depth

29.4″ (747 mm)

Package

8.1″ (H) x 23.8″ (W) x 40.6″ (D)

Weight

Gross Weight: 49 lbs (22.2 kg)

Net Weight: 34 lbs (15.4 kg)

Available Color

Black

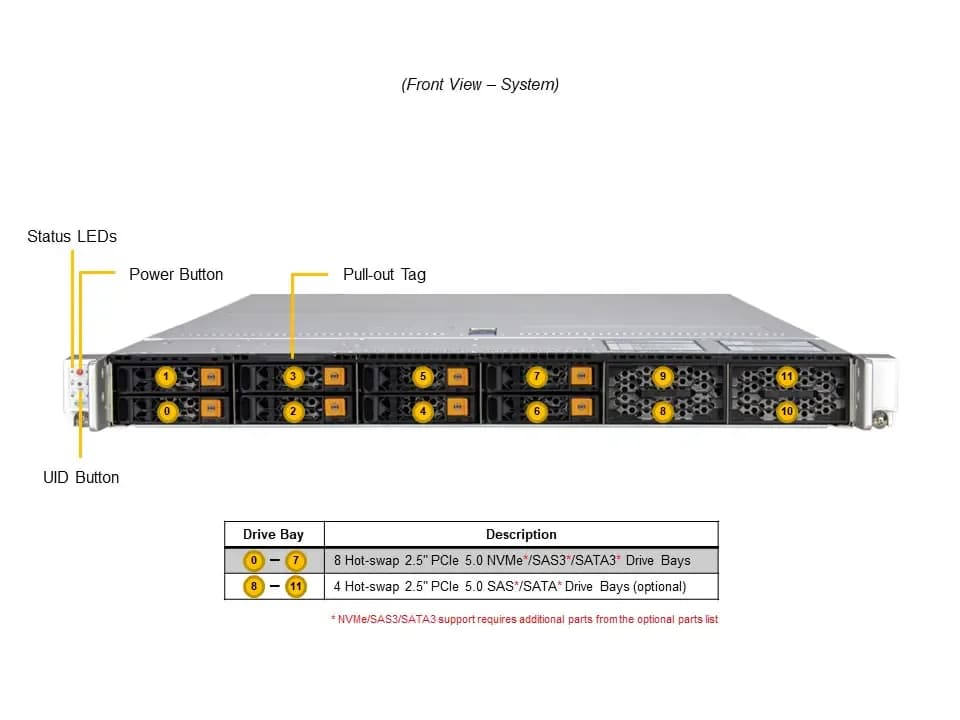

Front Panel

LED

HDD activity

LAN1 activity

LAN2 activity

Power Failed LED

Power status

System information

Buttons

Power On/Off button

UID button

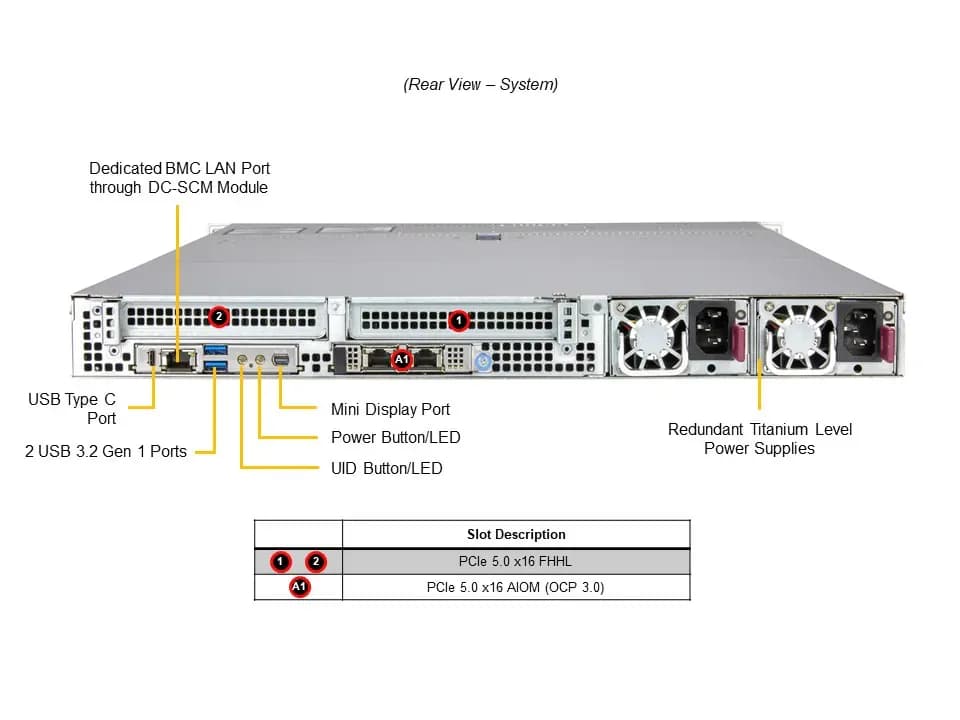

Expansion Slots

PCI-Express (PCIe) Configuration

Default

2 PCIe 5.0 x16 FHHL slot(s)

1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

Default: Total 8 bay(s)

8 front hot-swap 2.5″ PCIe 5.0 NVMe/SAS*/SATA* drive bay(s)

Option A: Total 12 bay(s)

8 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bay(s)

4 front hot-swap 2.5″ SAS*/SATA* drive bay(s)

(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

View Drive Options

M.2

2 M.2 PCIe 5.0 x2 NVMe slot(s) (M-key 2280(default)/22110; VROC required for RAID)

System Cooling

Fans

8 Counter-Rotating PWM 40x40x56mm Fan(s)

Power Supply

2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)

73.5 x 40 x 185 mm

AC Input

800W: 100-127Vac / 50-60Hz

1000W: 200-240Vac / 50-60Hz

+12V

Max: 66.7A (100Vac-127Vac)

Max: 83A (200Vac-240Vac)

12V SB

Max: 2.1A

Output Type

Backplanes (gold finger)

Certification

Titanium Level

[ Test Report ]

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)

Operating Relative Humidity: 8% to 80% (non-condensing)

Non-operating Relative Humidity: 8% to 90% (non-condensing)
