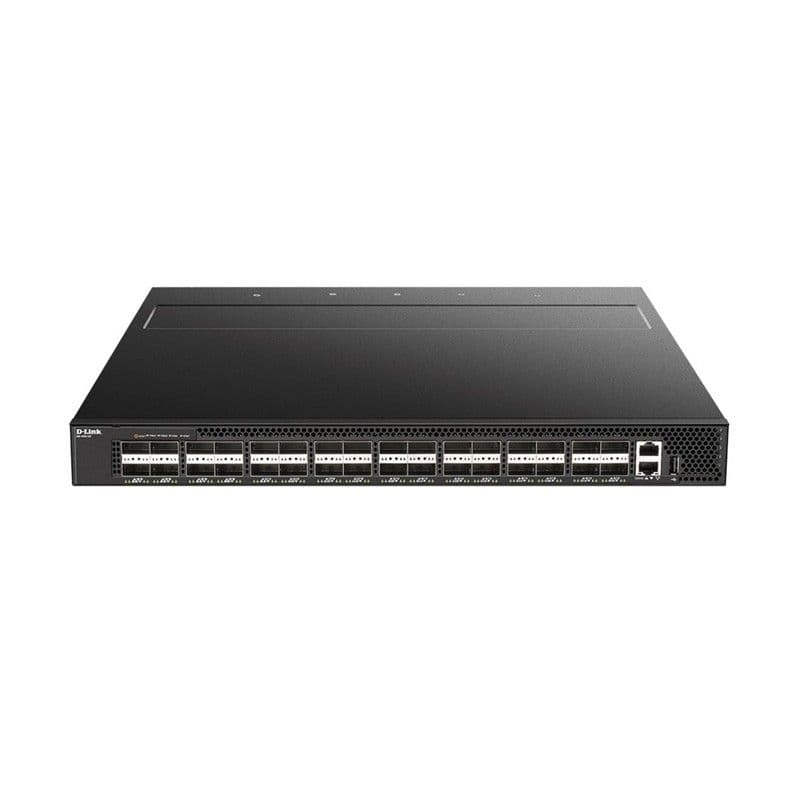

D-Link 32 40G QSFP+ optical ports, data center switch, support Leaf-Spine, Top-of-Rack (ToR) architecture, support OpenFlow, VXLAN, FCoE, DCB, support DLINK OS and third-party OS. Dual AC power supply modules, front and rear ventilation.

DQS-5000-32S/AF Specification

DQS-5000-32S/AF Specification

40G QSFP+ ports

32

USB 2.0 port

1

RJ-45 port

1

RJ-45 Management port

1

Switch Capacity

2.56 Tbps

Max. Packet Forwarding Rate

1,428 Mpps

Fans

4 x fans

Acoustics

Max: 69.8 dB Min: 59.5 dB

Dimensions (W x D x H)

440 x 406 x 44 mm (17.32 x 16 x 1.73 inch)

Operating Temperature

0 to 45 ºC (32 to 113 ºF)

Packet Buffer Memory

12 MB

MAC Address Table

288K

Operating Humidity

5% to 95% RH, non-condensing

Max. Forwarding Rate

1,428 Mpps (1.428 Bpps)

OOB Management Port

1 x 10/100/1000BASE-T RJ-45 port

Console Port

1 x RJ-45 console port

Power Input

1+1 redundant power supply design Input: 100 to 240 V AC, 50/60 Hz

Heat Dissipation (Max.)

1385.27 BTU/hr

Maximum Heat Dissipation

1,385.27 BTU/hr

Maximum Power Consumption

406 W

MTBF

85,937 hoursDQS-5000-32S/AF Price – D-Link Data Center Switches
