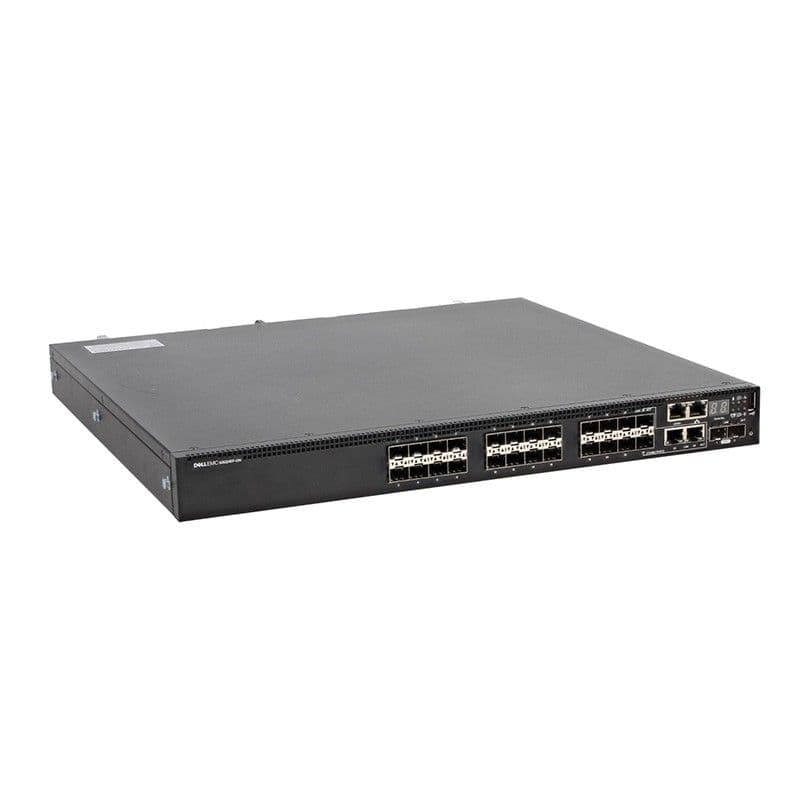

Dell Networking N3024EF-ON, 24x 1GbF, 2x SFP + 10GbE, 2x GbE, L3, stacked, airflow from IO to PSU, 1x AC PSU

N3024ET-ON Specification

Chassis

Dimensions in inches

1.7126 x 17.0866 x 16.0236

Dimensions in millimeters

43.5 x 434.0 x 407.0

Power Supply (Watts)

200

Max Thermal Output (BTU/hr)

180.16

Power Consumption Max (Watts)

52.8

Power and Cooling Hardware

Internal power supply bays

2

power supplies (included)

1

Power supply redundancy

option available

Removable fans

not available

Variable speed fans

standard

Air flow

IO to PSU (normal)

Stacking Attributes

Integrated rear mini-SAS stacking ports

2 x 21gbps

Maximum stacking distance (meters)

3

Maximum stacking speed (full-duplex)

84gbps

Environmental Operating Conditions

Operating Temperature in Celsius

0° to 45° C

Operating Temperature in Fahrenheit

32° to 113° F

Storage Temperature in Celsius

-40° to 65° C

Storage Temperature in Fahrenheit

-40° to 149° F

Operating Relative Humidity

95%

Storage Relative Humidity

85%

Power Supply Efficiency

80% or better in all operating modes
