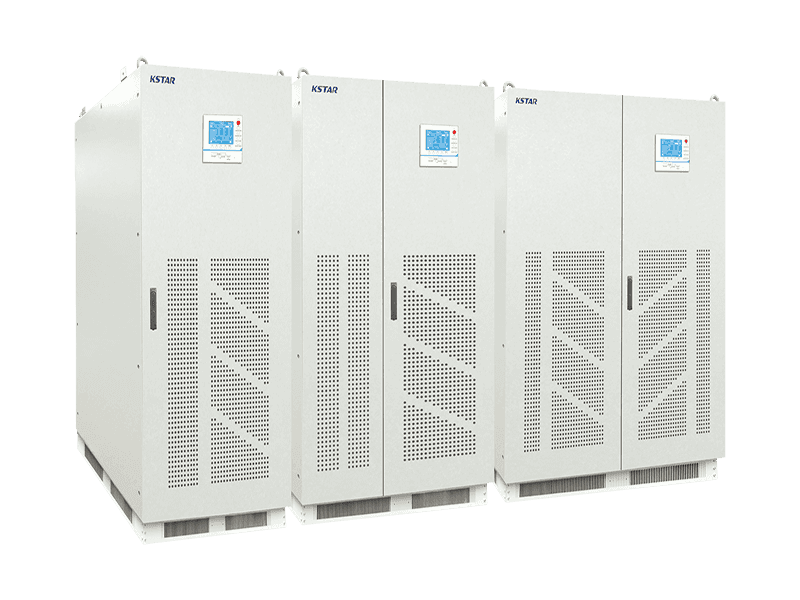

EP-IND-ZY is a three-phase in one-phase out online transformer-bansed industrial UPS. With anti harsh environment design，EP-IND-ZY serious industrial UPS has strong impact resistance（IP grade 31）and can be scaled to meet changing electrical requirements and is adaptable to the most stringent technical specification. It support the continuing demand from downstream refining and petrochemicals, upstream oil and gas, power generation, large steel plants, metallurgy & cnooc, nuclear power and the growing regulatory and safety needs of today’s industrial complexes.

EP-IND-ZY is a three-phase in one-phase out online transformer-bansed industrial UPS. With anti harsh environment design，EP-IND-ZY serious industrial UPS has strong impact resistance（IP grade 31）and can be scaled to meet changing electrical requirements and is adaptable to the most stringent technical specification. It support the continuing demand from downstream refining and petrochemicals, upstream oil and gas, power generation, large steel plants, metallurgy & cnooc, nuclear power and the growing regulatory and safety needs of today’s industrial complexes.

General Features

● 12 pulse rectifier technology

●3Phase In/1phase Out

●Input/output galvanic isolation

●IP31

●Input voltage window 300~500Vac and input frequency window 45~65Hz

●DC Input 220dc (-25%~+30%)

●Advance Battery auto float/boost charger, battery temperature compensation

●N+X parallel redundancy

●110%/125%/150% overload for 60min/10min/1min

●Power Walk in

●Load Bus Synchronization(LBS)

●5.7” or 7” touch-screen color monitor

●RS232, RS485(ModBus), Optional SNMP, Eight Dry contact Signals, Circuit breaker status, battery temperature sensor, etc.

●Full range from 10kVA up to 120kVA

●Perfect for oil and gas, refining, chemical, industrial power, power transmission and distribution, metallurgy, automotive, glass

● High power factor

● Wide input adaptability

● Optimized battery management

● N+X parallel redundancy

● Strong overload capability

● Generator mode

● Multi-protection

● EPO function

● User-friendly network management

Technical Specification

MODEL

EP-IND10

-ZY

EP-IND15

-ZY

EP-IND20

-ZY

EP-IND30

-ZY

EP-IND40

-ZY

EP-IND50

-ZY

EP-IND60

-ZY

EP-IND80

-ZY

EP-IND100

-ZY

EP-IND120

-ZY

Capacity（kVA/kW）

10/8

15/12

20/16

30/24

40/32

50/40

60/48

80/64

100/80

120/96

INPUT

Nominal voltage & range（Vac）

380/400/415  （3Ph+PE,  without N）（±25%）

Frequency & range（Hz）

50/60（±10%）

BYPASS INPUT

Norminal voltage（Vac）

220/230/240

Frequency tollerance (Hz）

±2Hz（0.5  , 1 , 2 , 3Hz settable）

OUTPUT

Voltage (Vac)

220/230/240±0.5% (L+N+PE)

Frequency

50/60（0.5%）

Waveform

Pure Sinewave THDV≤1%（100%  Linear  load）

Transfer time（ms）

0

Efficiency（%）

Up to 94%

Overload

110%  overload for 60min；≤125%  lasting 10min；≤150%  lasting 1min

DC（BATTERY）

DC voltage（Battery）（Vdc）

220 VDC

ENVIRONMENTAL

Operating temperature（℃）

-5～40℃

Storage temperatue（℃

） -20～+55℃（no  battery , at least keeping 4Hours to make the operation temperature up to 0℃ after -20℃  storage）

Humidity range

20～95%（non  condensing）

Altitude

≤1500m. Refer to GB/T 7260.3 standard to execute derating when altitude is more than 1500m

Noise level（dB）

58

60

62

OTHERS

Alarm function

Output overload , utility abnormal , DC（battery）low , UPS fault alarm & history , etc

Protection function

Short circuit, overload , over temperatue , DC（battery）low , output low voltage , fan fault alarm

Communication function

RS232 , RS485（Modbus）,  SNMP（Optional）,  Dry contact car , Breaker status , Battery Temperature sensor

PHYSICAL

Dimension（W×D×H）mm

800×800×1800（2260  for IP31）

1000×800×1800（2260 for IP31）

1400×800×1800（2260 for IP31）

Weight（kg）

535

550

570

610

705

860

960

1160

1560

1650

STANDARDS

IEC 62040-2 CLASS C3   IEC60905-1 , IEC 6240-1-1 , UL1778 , IEC62040-3
