Key Applications High Performance Computing AI/Deep Learning Training Large Language Model (LLM) Natural Language Processing General purpose CPU workloads, including analytics, data science, simulation, HPC, application servers, and more Key Features High density 2U GPU system with up to 2 NVIDIA® PCIe GPUs PCIe-based NVIDIA H100 NVL and NVIDIA L40s Energy-Efficient NVIDIA Grace™ CPU Superchip with 144 Cores Up to 960GB ECC LPDDR5X onboard memory option for minimum latency and maximum power efficiency 5 PCIe 5.0 x16 FHFL Slots 4 E1.S NVMe Storage Support

Key Applications

High Performance Computing

AI/Deep Learning Training

Large Language Model (LLM) Natural Language Processing

General purpose CPU workloads, including analytics, data science, simulation, HPC, application servers, and more

Key Features

High density 2U GPU system with up to 2 NVIDIA® PCIe GPUs

PCIe-based NVIDIA H100 NVL and NVIDIA L40s

Energy-Efficient NVIDIA Grace™ CPU Superchip with 144 Cores

Up to 960GB ECC LPDDR5X onboard memory option for minimum latency and maximum power efficiency

5 PCIe 5.0 x16 FHFL Slots

4 E1.S NVMe Storage Support

Product SKUs

ARS-221GL-NR

Motherboard

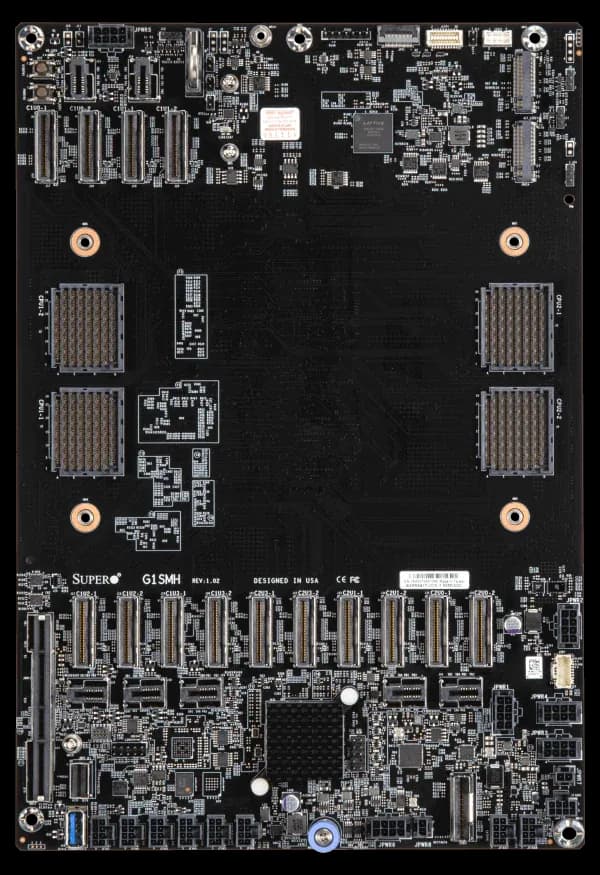

Super G1SMH

Processor

CPU

Dual processor(s)

NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip

Note

Supports up to 500W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 2 double-width GPU(s)

Supported GPU

NVIDIA PCIe: H100 NVL, L40S

View GPU Options

CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect

PCIe

System Memory

Memory

Slot Count: Onboard Memory

Max Memory: Up to 960GB ECC LPDDR5X

Memory Voltage

1.1V

On-Board Devices

Chipset

NVIDIA C2

Network Connectivity

1 RJ45 1GbE

View AOC Options

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

LAN

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

USB

2 USB 3.0 Type-A port(s) (Rear)

Video

1 mini-DP port(s)

TPM

1 TPM Onboard/port 80

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

Redfish API

Supermicro Update Manager (SUM)

KVM with dedicated LAN

IPMI 2.0

Watch Dog

OOB Management Package (SFT-OOB-LIC )

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

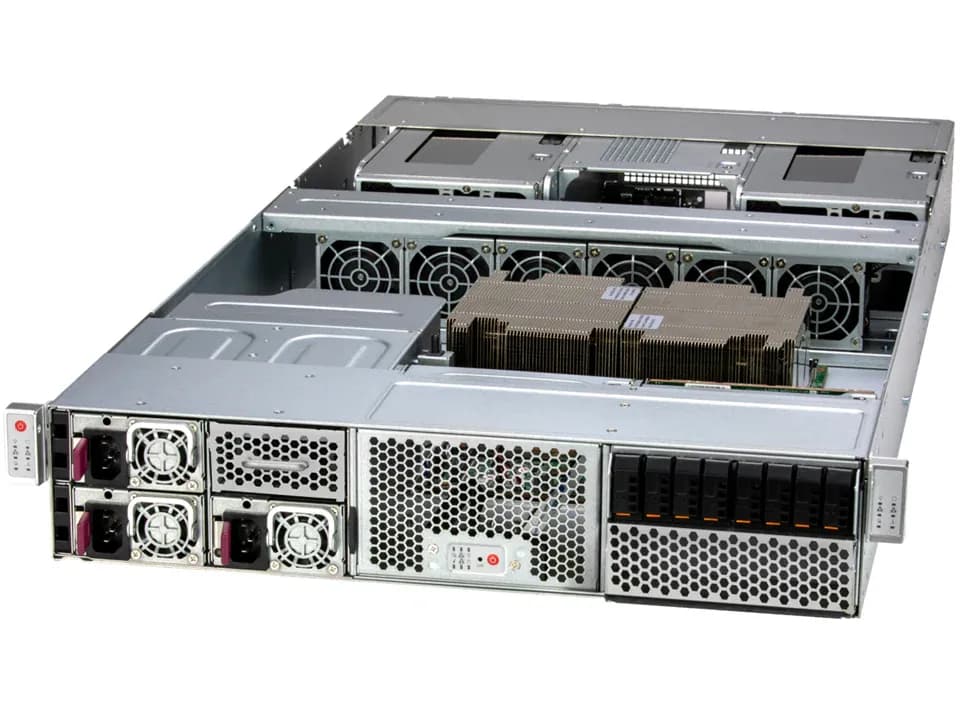

2U Rackmount

Model

CSE-GP201TS-R000NP

Dimensions and Weight

Height

3.46″ (88 mm)

Width

17.25″ (438.4 mm)

Depth

35.43″ (900 mm)

Package

11″ (H) x 22.5″ (W) x 45.5″ (D)

Weight

Gross Weight: 86.5 lbs (39.2 kg)

Net Weight: 67.5 lbs (30.6 kg)

Available Color

Black front & silver body

Front Panel

LED

Hard drive activity LED

Network activity LEDs

Power status LED

System Overheat & Power Fail LED

Buttons

Power On/Off button

System Reset button

Expansion Slots

PCI-Express (PCIe) Configuration

Default

3 PCIe 5.0 x16 FHFL slot(s)

2 PCIe 5.0 x16 FHFL double-width slot(s)

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

Default: Total 4 bay(s)

4 front hot-swap E1.S NVMe drive bay(s)

M.2

2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 22110)

View M.2 Options

System Cooling

Fans

6 heavy duty fans with optimal fan speed control

Power Supply

3x 2000W Redundant Titanium Level (96%) power supplies

Dimension (WxHxL)

73.5 x 40 x 185 mm

AC Input

1000W: 100-127Vac / 50-60Hz

1800W: 200-220Vac / 50-60Hz

1980W: 220-230Vac / 50-60Hz

2000W: 220-240Vac / 50-60Hz (for UL only)

2000W: 230-240Vac / 50-60Hz

2000W: 230-240Vdc / 50-60Hz (for CQC only)

+12V

Max: 83A / Min: 0A (100Vac-127Vac)

Max: 150A / Min: 0A (200Vac-220Vac)

Max: 165A / Min: 0A (220Vac-230Vac)

Max: 166A / Min: 0A (230Vac-240Vac)

12V SB

Max: 3.5A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
