Key Applications High Performance Computing AI/Deep Learning Training Media/Video Streaming Industrial Automation, Retail Cloud Gaming Key Features Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following: Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processor Intel® C621A Chipset 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs 3 PCIe Gen 4.0 x16 FHFL DW 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays 2 M.2 NVMe and SATA for boot drive only AST2500 BMC

Key Applications

High Performance Computing

AI/Deep Learning Training

Media/Video Streaming

Industrial Automation, Retail

Cloud Gaming

Key Features

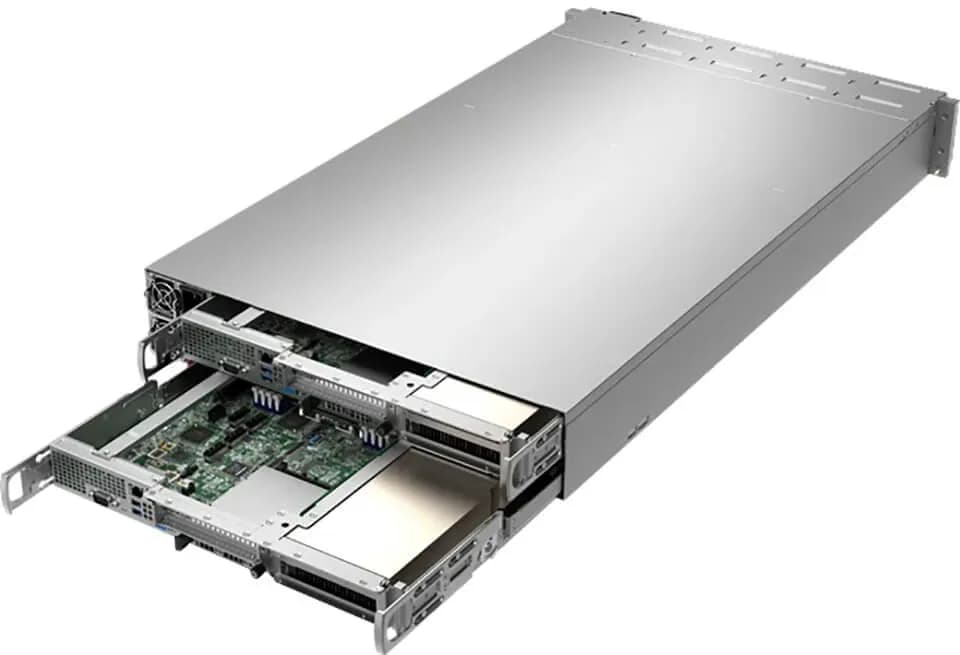

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processor

Intel® C621A Chipset

2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs

3 PCIe Gen 4.0 x16 FHFL DW

2 front Hot-swap 2.5″ U.2 NVMe Gen4 drive bays

2 M.2 NVMe and SATA for boot drive only

AST2500 BMC

Product SKUs

SuperServer SYS-210GP-DNR

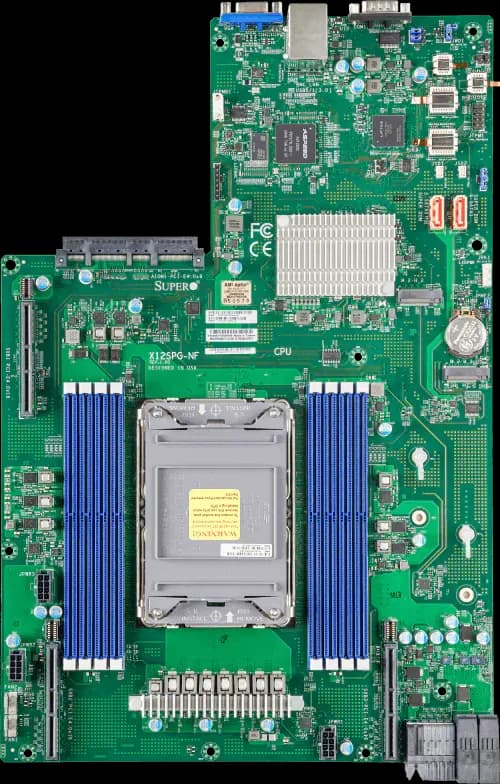

Motherboard

Super X12SPG-NF

Processor (per Node)

CPU

Single Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Core Count

Up to 40C/80T; Up to 60MB Cache

Note

Supports up to 270W TDP CPUs (Air Cooled)

GPU (per Node)

Max GPU Count

Up to 3 double-width or 3 single-width GPU(s)

Supported GPU

NVIDIA PCIe: A40, RTX A4500, RTX A4000, A40, A30, A100, A10

View GPU Options

CPU-GPU Interconnect

PCIe 4.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect

PCIe

Certification

System Memory (per Node)

Memory

Slot Count: 8 DIMM slots

Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

View Memory Options

Memory Voltage

1.2V

On-Board Devices (per Node)

Chipset

Intel® C621A

Network Connectivity

Via AIOM

View AIOM Options

View AOC Options

Input / Output (per Node)

Video

1 VGA port(s)

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

7 +1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-227GTS-R2K63P

Dimensions and Weight

Height

3.47″ (88 mm)

Width

17.6″ (447 mm)

Depth

29.9″ (760 mm)

Package

9.44″ (H) x 23.62″ (W) x 43.3″ (D)

Weight

Gross Weight: 60 lbs (27.21 kg)

Net Weight: 55 lbs (24.94 kg)

Available Color

Black Front & Silver Body

Front Panel

LED

Hard drive activity LED

Information LED as manual description

Network activity LEDs

Power status LED

Buttons

Power On/Off button

System UID button/LED

Expansion Slots (per Node)

PCI-Express (PCIe) Configuration

Default

3 PCIe 4.0 x16 FHFL double-width slot(s)

View AOC Options

Drive Bays / Storage (per Node)

Drive Bays Configuration

Default: Total 2 bay(s)

2 front hot-swap 2.5″ NVMe drive bay(s)

M.2

2 M.2 NVMe/SATA slot(s) (M-key)

View M.2 Options

System Cooling

Fans

4 Removable heavy-duty Fan(s)

Power Supply

1x 2600W Redundant Titanium Level (96%) power supply

Dimension (WxHxL)

73.5 x 40 x 265 mm

AC Input

2600W: 200-240Vac / 50-60Hz

2600W: 200-240Vdc / 50-60Hz (for CQC only)

+12V

Max: 216A / Min: 0A (200Vac-240Vac)

12V SB

Max: 3.5A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
