Key Applications

High Performance Computing

AI/Deep Learning Training

Large Language Model (LLM) Natural Language Processing

Key Features

High density 2U GPU system with up to 4 NVIDIA® PCIe GPUs

Highest GPU communication using NVIDIA® NVLINK™ using

PCIe-based H100 NVL with NVLink Support

5th/4th Gen Intel® Xeon® Scalable processor support

32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5

7 PCIe 5.0 x16 FHFL Slots

NVIDIA BlueField-3 Data Processing Unit Support for the most demanding accelerated computing workloads.

8 E1.S NVMe Storage Support

Product SKUs

SuperServer SYS-221GE-NR

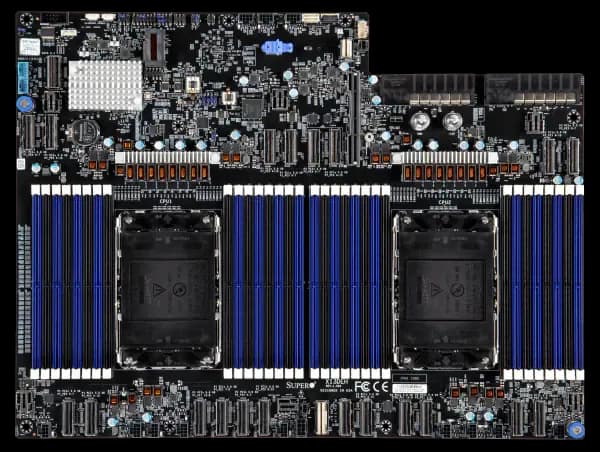

Motherboard

Super X13DEH

Processor

CPU

Dual Socket E (LGA-4677)

5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Core Count

Up to 64C/128T; Up to 320MB Cache per CPU

Note

Supports up to 350W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 4 double-width GPU(s)

Supported GPU

NVIDIA PCIe: H100 NVL, H100, L40S

View GPU Options

CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect

NVIDIA® NVLink® Bridge (optional)

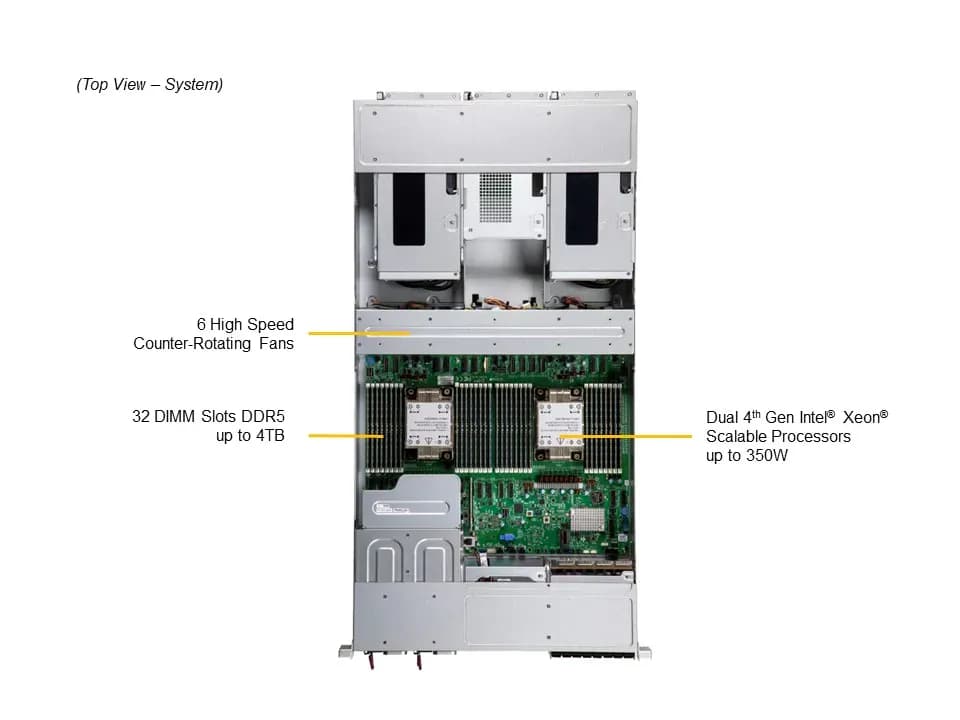

System Memory

Memory

Slot Count: 32 DIMM slots

Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5

Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5

View Memory Options

Memory Voltage

1.1V

On-Board Devices

Chipset

Intel® C741

Network Connectivity

1 RJ45 1GbE

View AOC Options

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

LAN

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

USB

2 port(s) (rear)

Video

1 mini-DP port(s)

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

Redfish API

Supermicro Server Manager (SSM)

Supermicro Power Manager (SPM)

Supermicro SuperDoctor® 5 (SD5)

KVM with dedicated LAN

IPMI 2.0

OOB Management Package (SFT-OOB-LIC )

SMCIPMITool

IPMIView

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

8+4 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-GP201TS-R000NP

Dimensions and Weight

Height

3.46″ (88 mm)

Width

17.25″ (438.4 mm)

Depth

35.43″ (900 mm)

Package

11″ (H) x 22.5″ (W) x 45.5″ (D)

Weight

Gross Weight: 86.5 lbs (39.2 kg)

Net Weight: 67.5 lbs (30.6 kg)

Available Color

Black front & silver body

Front Panel

LED

Hard drive activity LED

Network activity LEDs

Power status LED

System Overheat & Power Fail LED

Buttons

Power On/Off button

System Reset button

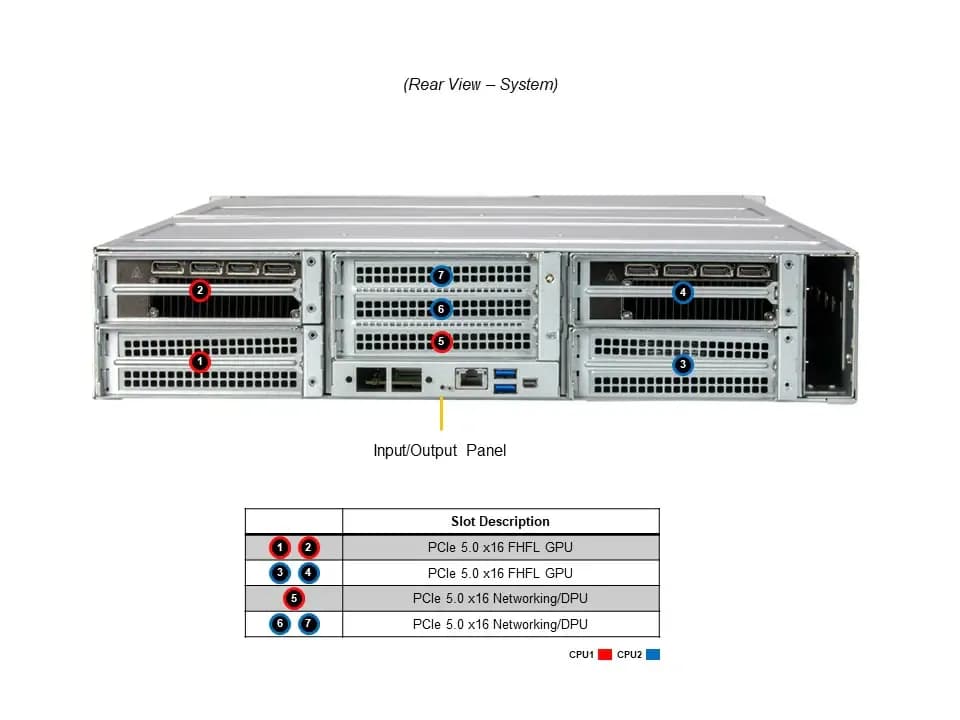

Expansion Slots

PCI-Express (PCIe) Configuration

Default

4 PCIe 5.0 x16 FHFL double-width slot(s)

3 PCIe 5.0 x16 FHFL slot(s)

View AOC Options

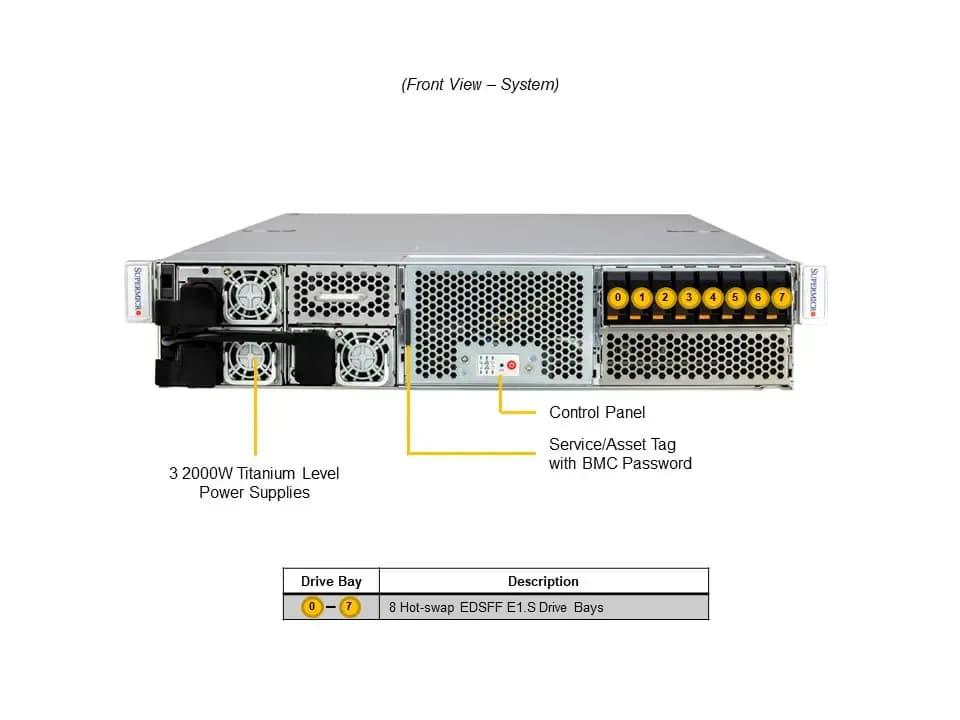

Drive Bays / Storage

Drive Bays Configuration

Default: Total 8 bay(s)

8 front hot-swap E1.S NVMe drive bay(s)

M.2

2 M.2 NVMe/SATA slot(s) (M-key)

View M.2 Options

System Cooling

Fans

6x 6cm heavy duty fans with optimal fan speed control

Air Shroud

1 Air Shroud(s)

Power Supply

3x 2000W Redundant Titanium Level (96%) power supplies

Dimension (WxHxL)

73.5 x 40 x 185 mm

AC Input

1000W: 100-127Vac / 50-60Hz

1800W: 200-220Vac / 50-60Hz

1980W: 220-230Vac / 50-60Hz

2000W: 220-240Vac / 50-60Hz (for UL only)

2000W: 230-240Vac / 50-60Hz

2000W: 230-240Vdc / 50-60Hz (for CQC only)

+12V

Max: 83A / Min: 0A (100Vac-127Vac)

Max: 150A / Min: 0A (200Vac-220Vac)

Max: 165A / Min: 0A (220Vac-230Vac)

Max: 166A / Min: 0A (230Vac-240Vac)

12V SB

Max: 3.5A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 40°C (50°F ~ 104°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
