Key Applications High Performance Computing AI/Deep Learning Training Industrial Automation, Retail Healthcare Conversational AI Business Intelligence & Analytics Drug Discovery Climate and Weather Modeling Finance & Economics Key Features Highest GPU communication using NVIDIA® NVLINK™ High density 2U system with NVIDIA® HGX™ H100 4-GPU 5th/4th Gen Intel® Xeon® Scalable processor support 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5 4 PCIe Gen 5.0 X16 LP Flexible networking options 2 M.2 NVMe for boot drive only 4x 2.5" Hot-swap NVMe/SATA3 drive bays Direct-To-Chip Liquid Cooling solution 4 heavy duty fans with optimal fan speed control 2x 5250W(1+1) Redundant Power Supplies

Key Applications

High Performance Computing

AI/Deep Learning Training

Industrial Automation, Retail

Healthcare

Conversational AI

Business Intelligence & Analytics

Drug Discovery

Climate and Weather Modeling

Finance & Economics

Key Features

Highest GPU communication using NVIDIA® NVLINK™

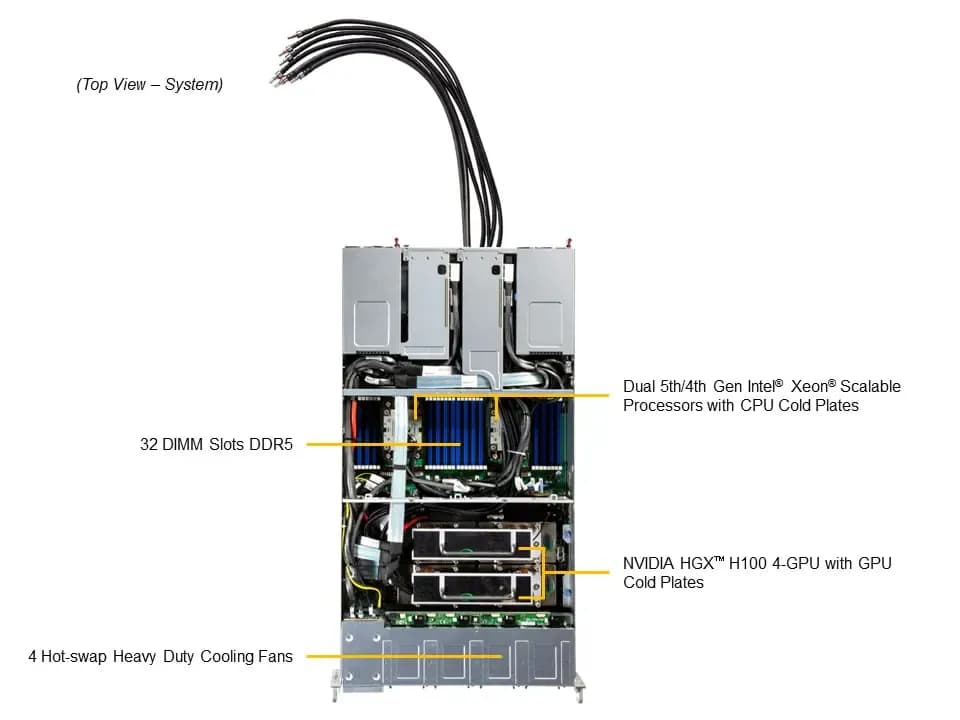

High density 2U system with NVIDIA® HGX™ H100 4-GPU

5th/4th Gen Intel® Xeon® Scalable processor support

32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5

4 PCIe Gen 5.0 X16 LP

Flexible networking options

2 M.2 NVMe for boot drive only

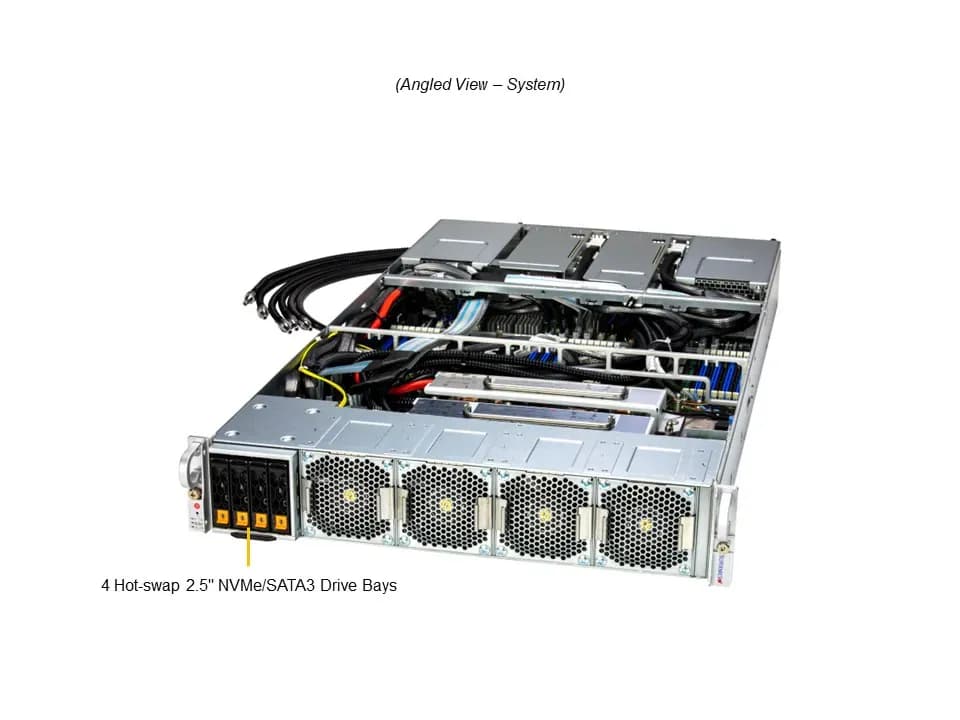

4x 2.5″ Hot-swap NVMe/SATA3 drive bays

Direct-To-Chip Liquid Cooling solution

4 heavy duty fans with optimal fan speed control

2x 5250W(1+1) Redundant Power Supplies

Product SKUs

SuperServer SYS-221GE-TNHT-LCC

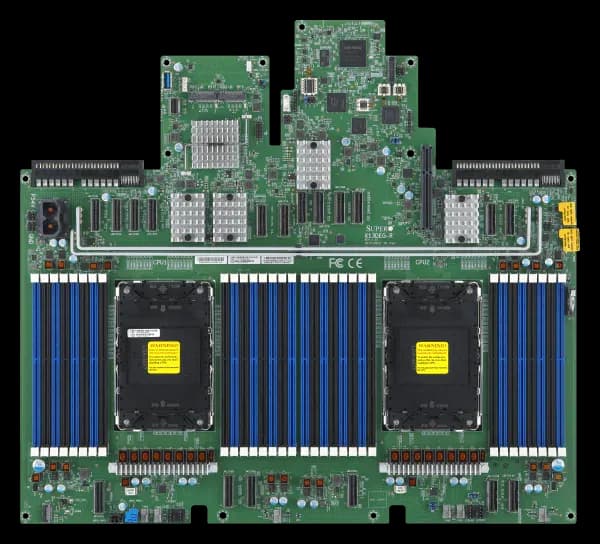

Motherboard

Super X13DEG-R

Processor

CPU

Dual Socket E (LGA-4677)

5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Core Count

Up to 56C/112T; Up to 112.5MB Cache per CPU

Note

Supports up to 350W TDP CPUs (Liquid Cooled)​

GPU

Max GPU Count

Up to 4 onboard GPU(s)

Supported GPU

NVIDIA SXM: HGX H100 4-GPU (80GB)

View GPU Options

CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect

NVIDIA® NVLink®

System Memory

Memory

Slot Count: 32 DIMM slots/16 Channels

Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM

View Memory Options

On-Board Devices

Chipset

Intel® C741

Network Connectivity

2 RJ45 10GbE with Intel® X710-AT2

View AOC Options

Input / Output

Video

1 VGA port(s)

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

8+4 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-228G2TS-R5K25P

Dimensions and Weight

Height

3.5″ (89 mm)

Width

17.2″ (437 mm)

Depth

32.7″ (830.3 mm)

Package

11″ (H) x 22.5″ (W) x 45.5″ (D)

Weight

Gross Weight: 86.5 lbs (39.2 kg)

Net Weight: 67.5 lbs (30.6 kg)

Available Color

Silver Body

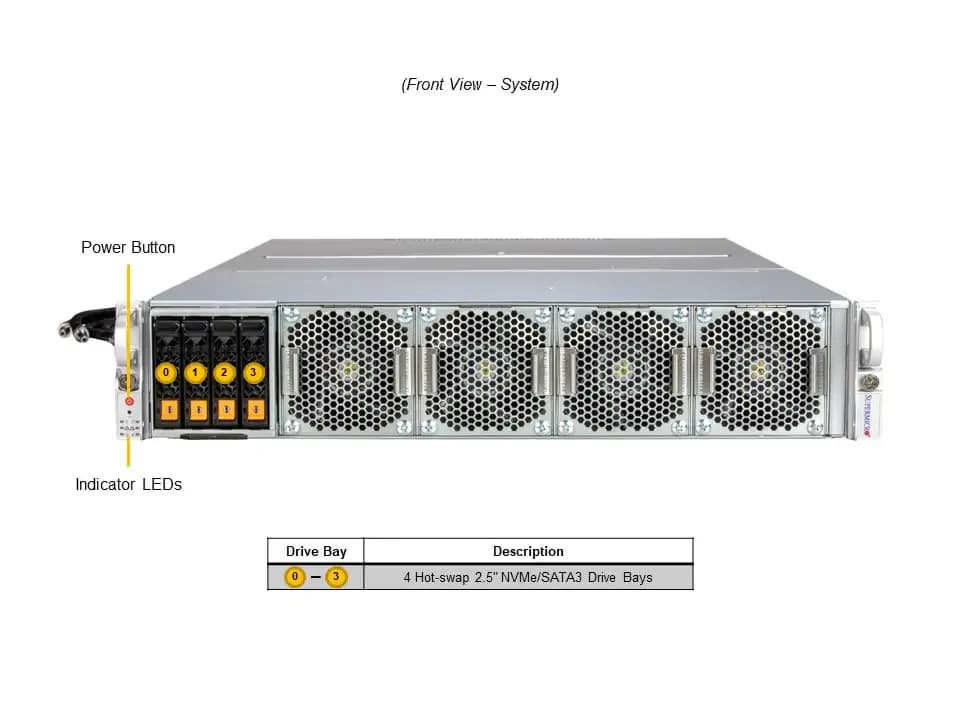

Front Panel

LED

Hard drive activity LED

Network activity LEDs

Power status LED

System Overheat & Power Fail LED

Buttons

Power On/Off button

System Reset button

Expansion Slots

PCI-Express (PCIe) Configuration

Default

4 PCIe 5.0 x16 LP slot(s)

View AOC Options

M.2

2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 22110(default)/2280)

Drive Bays / Storage

Drive Bays Configuration

Default: Total 4 bay(s)

4 front hot-swap 2.5″ NVMe/SATA drive bay(s)

View Drive Options

M.2

View M.2 Options

System Cooling

Fans

4 Fan 8cm Fan(s)

Liquid Cooling

Direct to Chip (D2C) Cold Plate (optional)

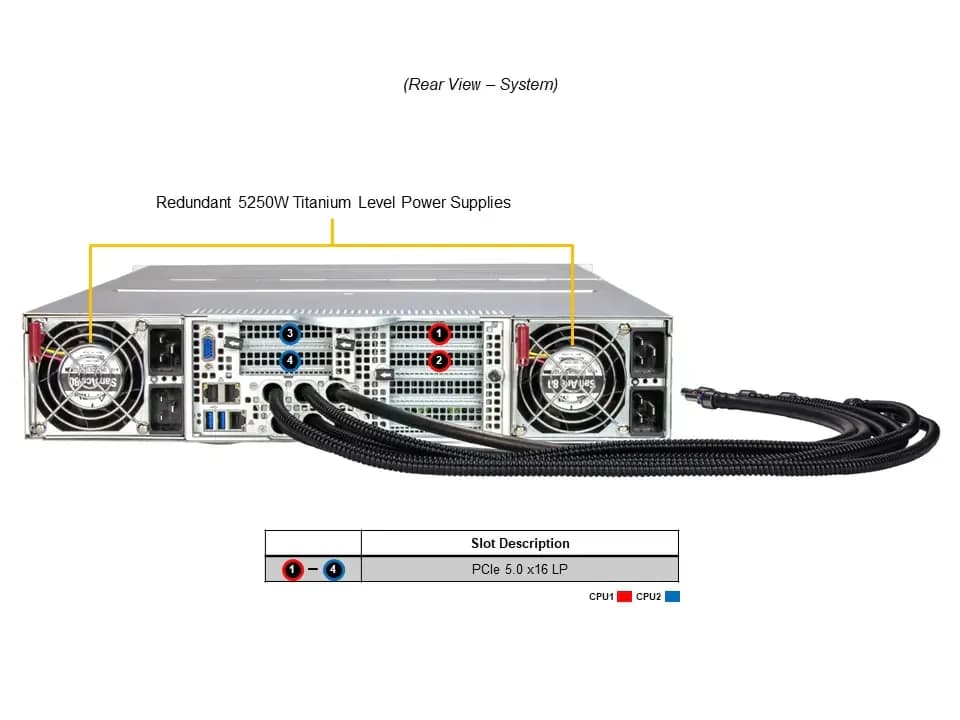

Power Supply

2x 5250W Redundant Titanium (certification pending) Level (96%) power supplies

Dimension (WxHxL)

106.5 x 82.1 x 245.3 mm

AC Input

5250W: 200-240Vac / 50-60Hz

+12V

Max: 125A / Min: 0A (200Vac-240Vac)

Output Type

Backplanes (gold finger)

Certification

Titanium (certification pending) Level

[ Test Report ]

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
