Key Applications High Performance Computing AI/Deep Learning Training Key Features Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors Intel® C621A Chipset 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series AIOM/OCP 3.0 Support 10 PCIe Gen 4.0 X16 LP Slots Flexible networking options 6x 2.5" Hot-swap NVMe/SATA/SAS drive bays 2 M.2 NVMe and SATA for boot drive only 4 heavy duty fans with optimal fan speed control 4x 3000W redundant Titanium level power supplies

Key Applications

High Performance Computing

AI/Deep Learning Training

Key Features

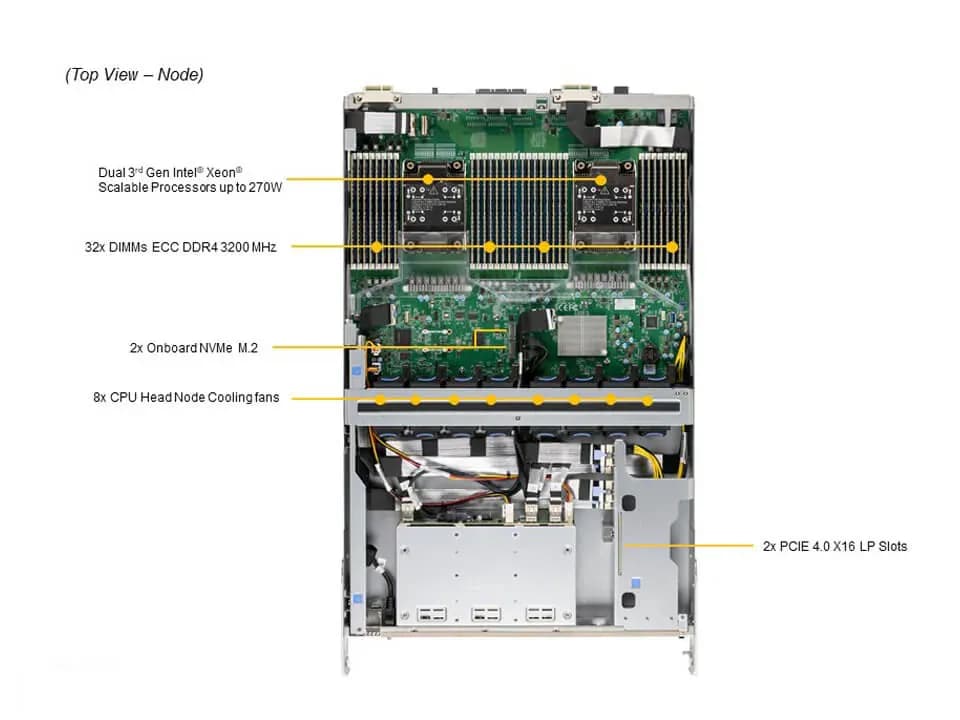

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors

Intel® C621A Chipset

32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series

AIOM/OCP 3.0 Support

10 PCIe Gen 4.0 X16 LP Slots

Flexible networking options

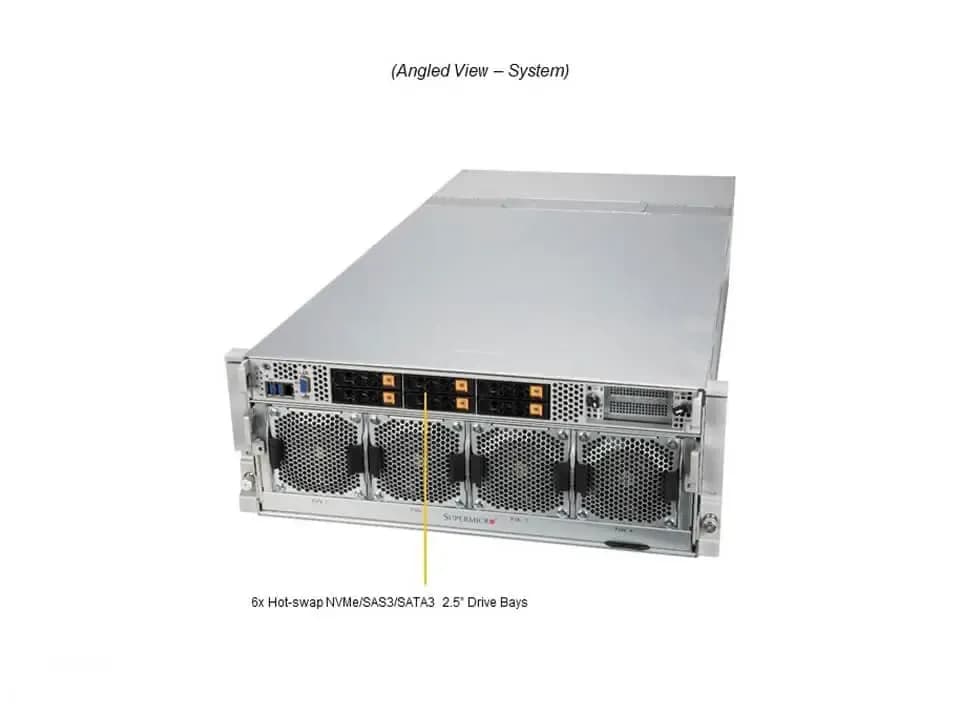

6x 2.5″ Hot-swap NVMe/SATA/SAS drive bays

2 M.2 NVMe and SATA for boot drive only

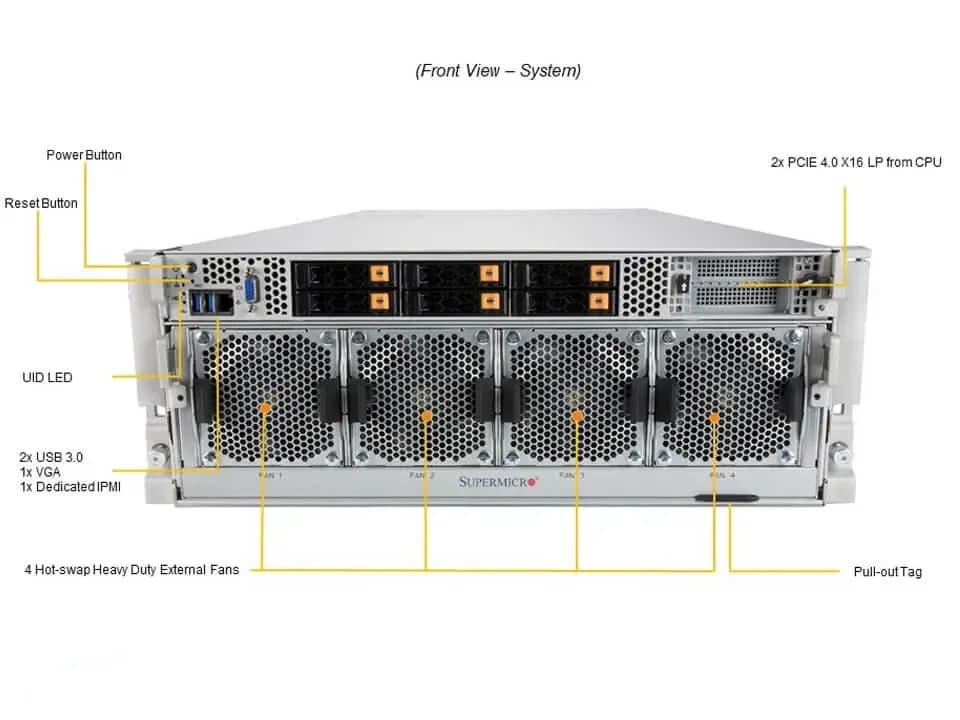

4 heavy duty fans with optimal fan speed control

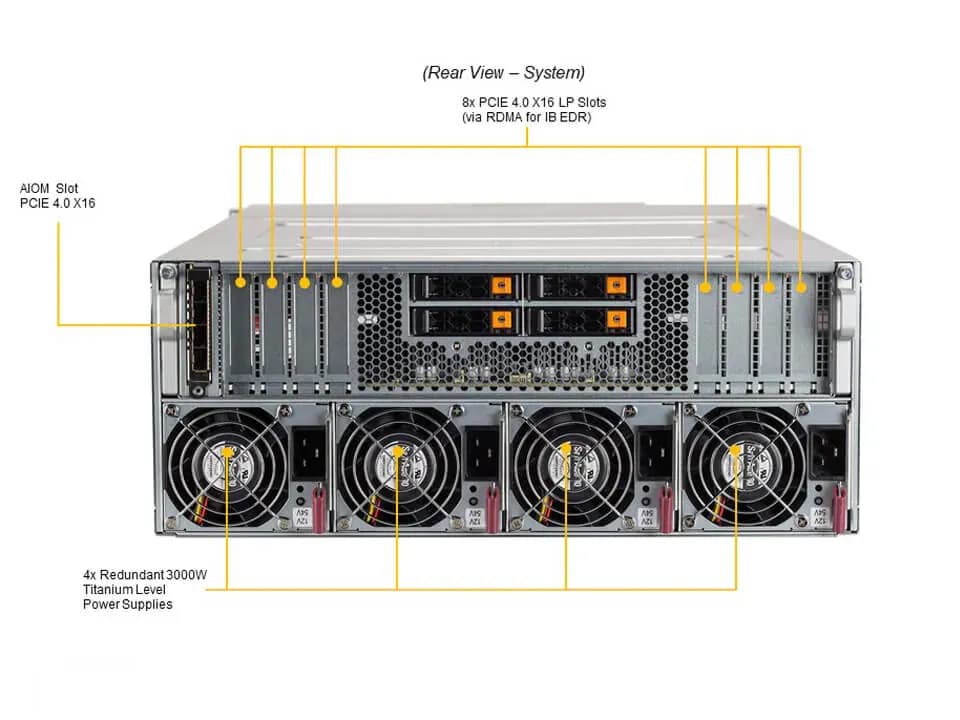

4x 3000W redundant Titanium level power supplies

Product SKUs

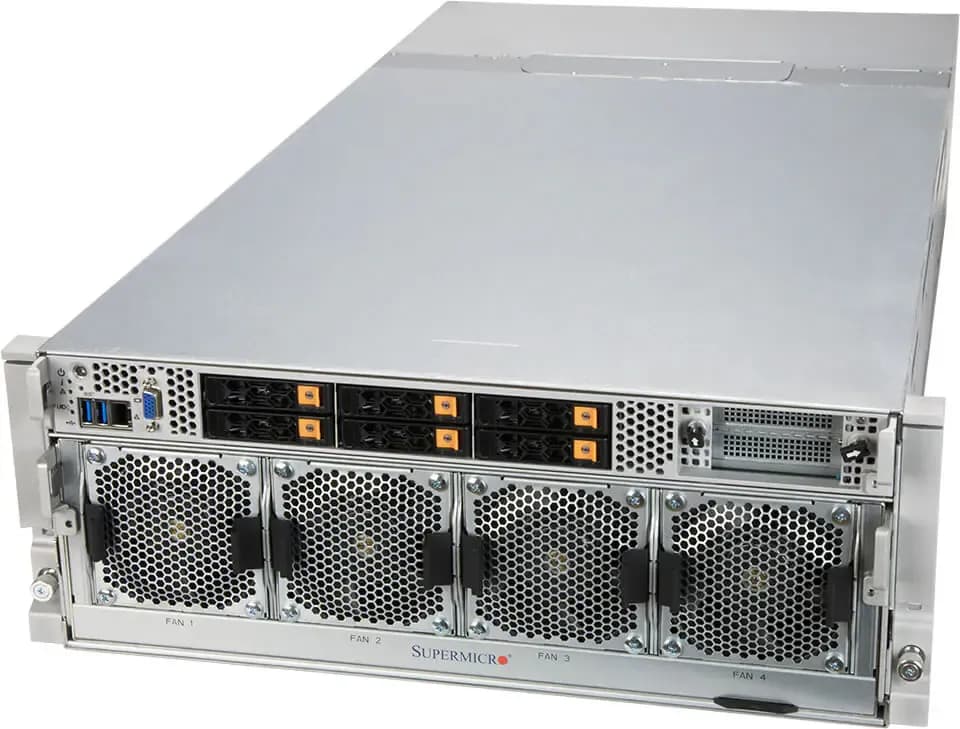

SuperServer SYS-420GP-TNAR+

Motherboard

Super X12DGO-6

Processor

CPU

Dual Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Core Count

Up to 40C/80T; Up to 60MB Cache per CPU

Note

Supports up to 270W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 8 onboard GPU(s)

Supported GPU

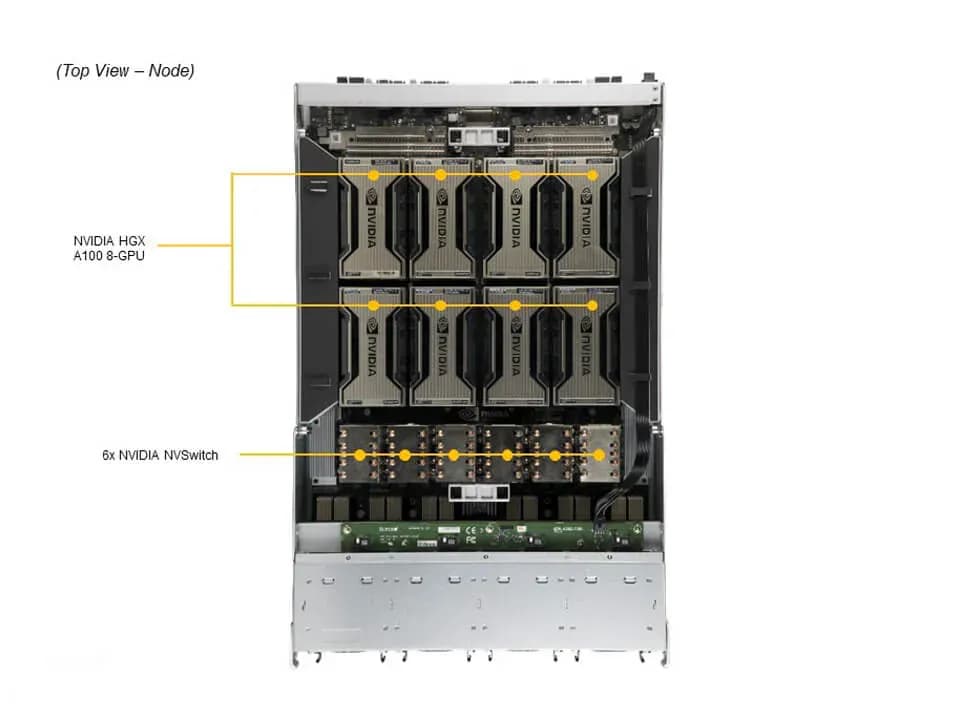

NVIDIA SXM: HGX A100 8-GPU (80GB)

View GPU Options

CPU-GPU Interconnect

PCIe 4.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect

NVIDIA® NVLink® with NVSwitch™

System Memory

Memory

Slot Count: 32 DIMM slots

Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Supports Intel® Optane™ persistent memory 200 series

View Memory Options

Memory Voltage

1.2V

On-Board Devices

SATA

SATA (6Gbps) ; RAID 0/1/5/10 support

Chipset

Intel® C621A

Network Connectivity

2 RJ45 10GbE with Intel® X550-AT2 (optional)

View AOC Options

Input / Output

Video

1 VGA port(s)

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

System Lockdown

Chassis

Form Factor

4U Rackmount

Model

CSE-438G

Dimensions and Weight

Height

6.9″ (174 mm)

Width

17.6″ (446 mm)

Depth

35.4″ (900 mm)

Package

29.5″ (H) x 27.4″ (W) x 44.9″ (D)

Weight

Gross Weight: 225 lbs (102.1 kg)

Net Weight: 166 lbs (75.3 kg)

Available Color

Black Front & Silver Body

Expansion Slots

PCI-Express (PCIe) Configuration

Default

10 PCIe 4.0 x16 LP slot(s)

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

Default: Total 6 bay(s)

6 front hot-swap 2.5″ NVMe/SAS/SATA drive bay(s)

View Drive Options

M.2

2 M.2 NVMe/SATA slot(s) (M-key)

View M.2 Options

System Cooling

Fans

4 heavy duty fans with optimal fan speed control

Power Supply

1x 3000W Redundant Titanium Level (96%) power supply

Dimension (WxHxL)

106.5 x 82.4 x 203.5 mm

AC Input

2880W: 200-207Vac / 50-60Hz

3000W: 207.1-240Vac / 50-60Hz

3000W: 240Vdc / 50-60Hz

+12V

Max: 91.66A / Min: 0A (200Vac-240Vac)

Max: 91.66A / Min: 0A (Vdc-240Vdc)

12V SB

Max: 4A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
