Key Applications

HPC

Cloud Gaming

MEC (Multi-Access Edge Computing)

Multi-Purpose CDN

High-availability Cache Cluster

Telco Edge Cloud

EDA (Electric Design Automation)

Mission Critical Web Applications

Key Features

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Single-Socket, 5th/4th Gen Intel® Xeon® Scalable processors up to 350W TDP

Intel® C741

16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600

Optional AIOM module or PCIe 5.0 x16

Integrated GrandTwin I/O Module with BMC, 2x USB, VGA and 2x 10GbE or 2x 25GbE

Two optional storage modules. Each module supports 2x NVMe or SAS/SATA drive bays

2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design

Built-in SAS3 Support via Broadcom 3808; IT Mode

Product SKUs

SuperServer SYS-211GT-HNC8F

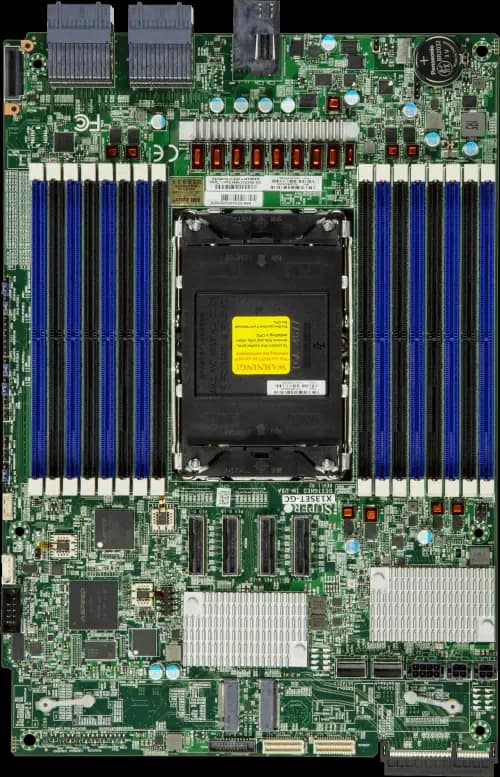

Motherboard

Super X13SET-GC

Processor (per Node)

CPU

Single Socket E (LGA-4677)

5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​

Core Count

Up to 64C/128T; Up to 320MB Cache

Note

Supports up to 350W TDP CPUs (Air Cooled)

System Memory (per Node)

Memory

Slot Count: 16 DIMM slots/2 Channels

Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

View Memory Options

On-Board Devices (per Node)

SAS

SAS (12Gbps) via Broadcom® 3808; (IT mode)

Chipset

Intel® C741

Network Connectivity

Via IO Module

View AIOM Options

View AOC Options

Input / Output (per Node)

LAN

1 RJ45 1 GbE Dedicated BMC LAN port(s)

USB

2 USB 3.0 port(s)

Video

1 VGA port(s)

System BIOS

BIOS Type

AMI 32MB Flash ROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

CPU

Monitors for CPU Cores, Chipset Voltages, Memory.

8+4 Phase-switching voltage regulator

Chassis

Form Factor

2U Rackmount

Model

CSE-GT214BF-R2K21BP2

Dimensions and Weight

Height

3.46″ (88 mm)

Width

17.67″ (449 mm)

Depth

28″ (711.2 mm)

Package

9.76″ (H) x 24.65″ (W) x 45.28″ (D)

Weight

Gross Weight: 88 lbs (39.9 kg)

Net Weight: 68 lbs (30.8 kg)

Available Color

Silver

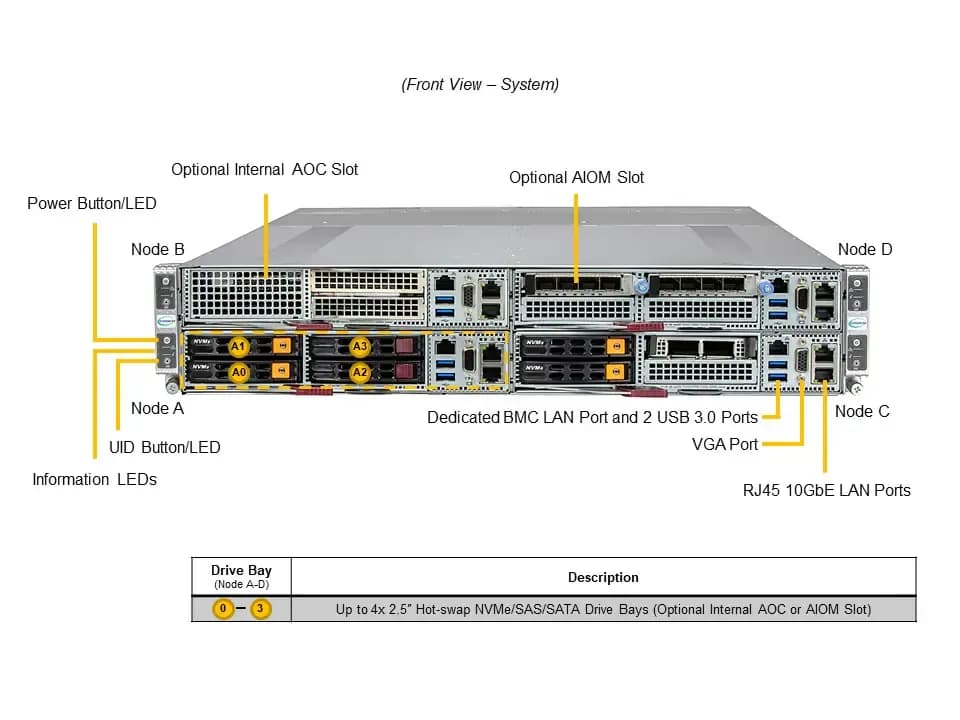

Front Panel

LED

HDD activity LED

Network activity LEDs

Power status LED

Universal Information (UID) LED

Buttons

Power On/Off button

UID button

Expansion Slots (per Node)

PCI-Express (PCIe) Configuration

Default

1 PCIe 5.0 x16 LP slot(s)

View AOC Options

Drive Bays / Storage (per Node)

Drive Bays Configuration

Default: Total 4 bay(s)

4 front hot-swap 2.5″ NVMe/SAS/SATA drive bay(s)

View Drive Options

M.2

2 M.2 NVMe/SATA slot(s) (M-key)

View M.2 Options

System Cooling

Fans

2x 16K RPM Heavy Duty 8cm Fan(s)

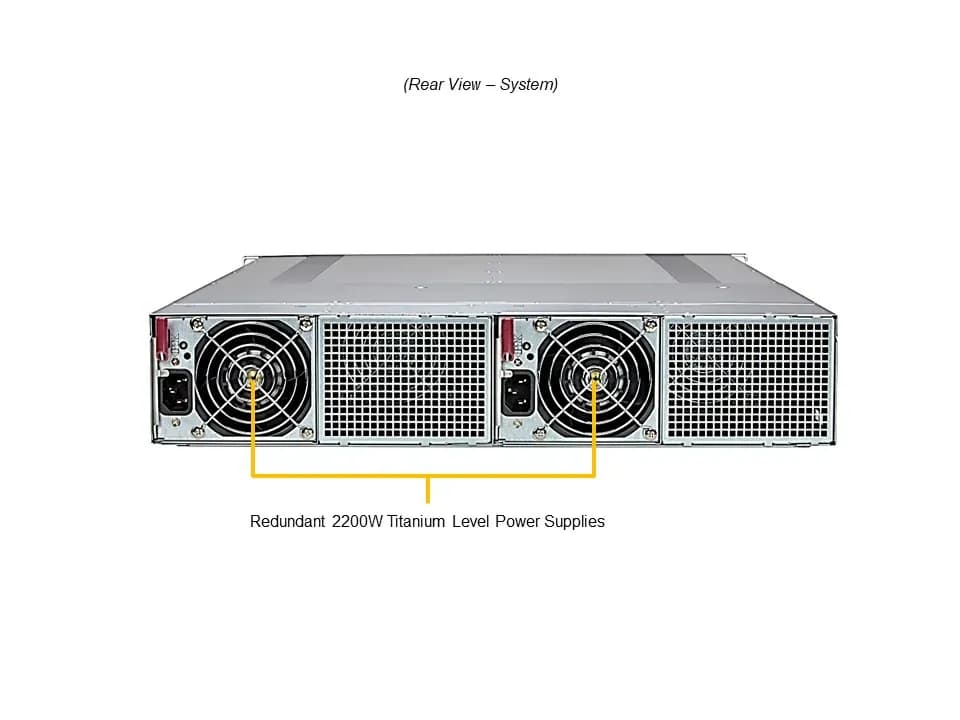

Power Supply

1x 2200W Redundant Titanium Level (96%) power supply

Dimension (WxHxL)

106.5 x 84 x 245.3 mm

AC Input

1200W: 100-127Vac / 50-60Hz

2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)

1800W: 200-220Vac / 50-60Hz

1980W: 220-230Vac / 50-60Hz

2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)

2090W: 230-240Vdc / 50-60Hz (for CQC only)

2090W: 230-240Vac / 50-60Hz (for TUV/CB)

+12V

Max: 100A / Min: 0A (100Vac-127Vac)

Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)

Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)

Max: 150A / Min: 0A (200Vac-220Vac)

Max: 165A / Min: 0A (220Vac-230Vac)

Max: 183.3A / Min: 0A (220Vac-240Vac)

Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)

Max: 174.17A (230Vac-240Vac)

12V SB

Max: 2A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

ROHS

RoHS Compliant

Environmental Spec.

Operating Temperature: 5°C ~ 40°C (41°F ~ 104°F)

Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)

Operating Relative Humidity: 8% to 80% (non-condensing)

Non-operating Relative Humidity: 8% to 90% (non-condensing)

Environmental / Recycling

Recycle

Return Server-End of Life Product
