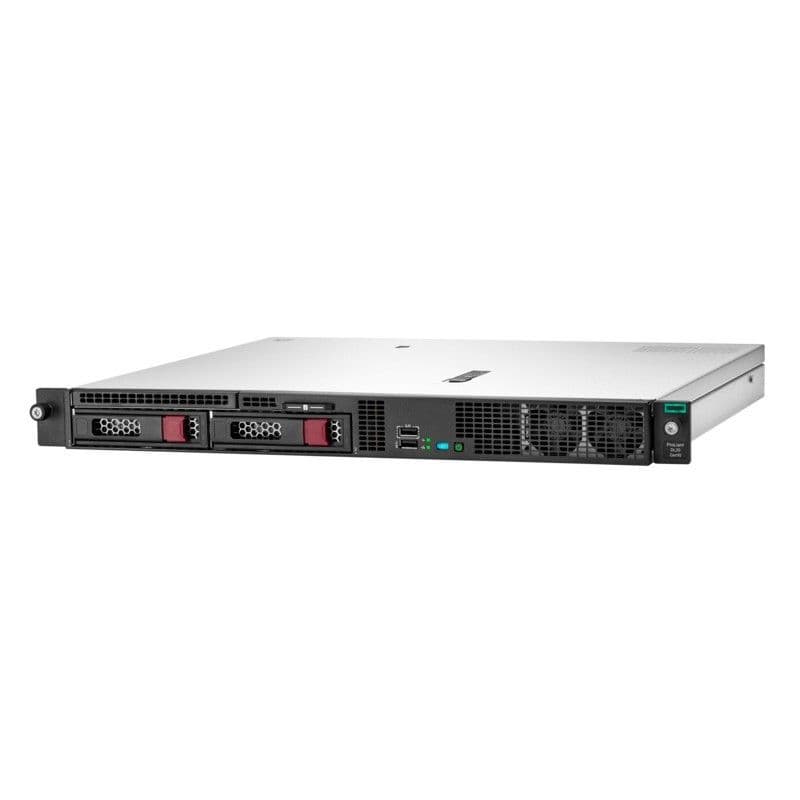

HPE ProLiant DL20 Gen10 E-2124 3.3GHz 4-core 1P 8GB-U 2LFF NHP 290W PS Entry Server

P08335-B21 Specification

P08335-B21 Specification

Model Name

HPE ProLiant DL20 Gen10 E-2124 3.3GHz 4-core 1P 8GB-U 2LFF NHP 290W PS Entry Server

Processor

Intel® Xeon® E-2124

Number of Processors

1

Memory

8GB (1x8GB UDIMM, 2666 MHz)

Network Controller

HPE embedded 1Gb 2-port 332i network Adapter

Storage Controller

Embedded 14-port S100i NOTE: SATA only

Hard Drive

None ship standard; includes 2 LFF hard drive blanks

Internal Storage

2 LFF HDD Bays (Non Hot Plug)

Optical Drive Bay

1; (Optional: DVD-ROM, DVD-RW)

Optical Drive

None

PCI-Express Slots

2 PCIe 3.0 slots

Power Supply

(1) 290W Non Hot Plug Power Supply

Fans

3 non hot plug, non-redundant

Management

iLO Management (standard), Intelligent Provisioning (standard),  iLO Essentials (optional),  iLO Scale-out (optional only for DL), iLO Advanced (optional)

Form Factor

Rack (1U), HPE Short Friction Rail Kit

Dimensions

(Height x Width x Depth)

LFF Drives:

4.32 x 43.46 x 38.22 cm

1.70 x 17.11 x 15.05 in

Altitude

Operating:

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating:

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
