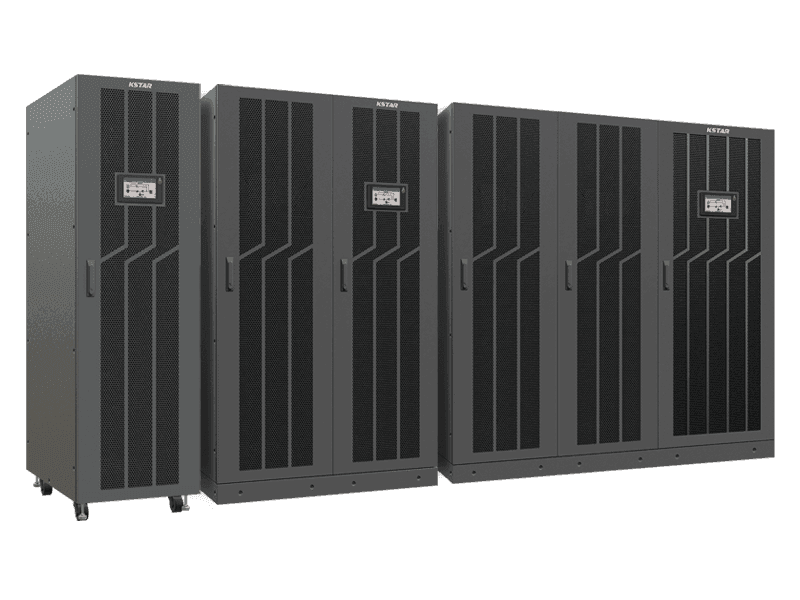

HPM3300E-T series UPS is developed as a high frequency large capacity tower UPS which can solve most of the power supply problems, such as blackout, over-voltage, voltage sudden drop, oscillating of decreasing extent, high voltage pulse, voltage fluctuation, surge, inrush current, harmonic distortion (THD), noise interference and frequency fluctuation. It has a strong load capacity and can be matched with full inductive load or capacitive load. The UPS can be used in various applications ranging from computer equipment, automatic equipment, large and medium-sized data centers, bank/security settlement centers, communication systems to industrial equipment.

General Features

●138-485 Vac wide input voltage range to minimize battery use

●High input power factor up to 0.99

●Three level topology design, efficiency is up to 96.5%

●Support parallel expanded operation: maximum is 8 units

●Smart sleeping mode for energy saving and prolong the life time of the system

●Support shared batteries for UPS in parallel

●Power saving with high input power factor up to 0.99

●VRLA & Lithium battery supportable

●Strong load capacity,1.0 power factor for 100% unbalanced load

●Can connect full inductive load or capacitive load

●Compatible with generator

●LBS function:2 independent UPS system can work in synchronization to enchances reliability

●Superior MTTR (Meantime to repair) & Short shutdown time in maintenance

●Touch-screen Super-large LCD display

●Resistant to high humidity, high heat, dust and salt spray

Technical Specification

Model

HPM3300E-200-T

HPM3300E-250-T

HPM3300E-300-T

HPM3300E-400-T

HPM3300E-500-T

HPM3300E-600-T

HPM3300E-800-T

HPM3300E-1000-T

HPM3300E-1200-T

Capacity (VA)

200k

250k

300k

400k

500k

600k

800k

1000k

1200k

INPUT

Nominal voltage

380/400/415Vac, (3Ph+N+PE)

Operating voltage range

138~305Vac for 40% load; 305~485Vac for 100% load

Operating frequency range

40Hz~70Hz

Power factor

≥0.99

Harmonic distortion (THDi)

≤3% (100% linear load)

Bypass voltage range

Max. voltage:220V: +25% (optional+10%, +15%, +20% ); 230V: +20% (optional +10%, +15% ); 240V: +15% (optional +10%)

Min. voltage: -45% (optional-10%, -15%, -20%, -30%)

Bypass frequency range

Frequency protection range: ±10%

Power Walk In

Support

Generator input

Support

OUTPUT

Rated voltage

380/400/415Vac, (3Ph+N+PE)

Power factor

1

Voltage regulation

±1%

Output

Line mode

Synchronize with input, when the input frequency ＞±10%（±1%/±2%/±3%/±4%/±5% optional), output 50/60 (±0.1Hz)

frequency

Bat. mode

(50/60±0.1%)Hz

Crest factor

3:1

Harmonic distortion (THDv)

≤2% with linear load; ≤4% with nonlinear load

Efficiency

up to 96.5%

BATTERY

Battery voltage

VRLA battery

360Vdc~600Vdc (30~50pcs continuously adjustable, 30pcs default, 36~50pcs no power

derating; 32~35pcs output power factor 0.9; 30/31pcs output power factor 0.8)

Lithium battery

512Vdc

Power module charge current

80A(Max.)

100A(Max.)

140A(Max.)

180A(Max.)

200A(Max.)

280A(Max.)

340A(Max.)

400A (Max.)

SYSTEM FEATURES

Transfer time

Utility to Battery : 0ms; Utility to Bypass: 0ms

Overload

Line mode

≤110%, 60min; ≤125%, 10min; ≤150%,1min; to bypass.＞150% Shut down Immediately.

Bypass mode

30℃: 135% overload for long term; 40℃: 125% overload for long term; >1000% overload for 100 ms

Overheat

Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately

Low battery voltage

Alarm and Switch off

Self-diagnostics

Upon Power On and Software Control

Backfeed protection

Support

EPO (optional)

Shut down UPS immediately (turn to bypass optional)

Battery

Advanced Battery Management

Noise suppression

Complies with EN62040-3

Audible & visual alarms

Line Failure, Battery Low, Overload, System Fault

Status LED & LCD display

Line Mode, Bypass Mode, Battery Low, Battery Fault, Overload & UPS Fault

Reading on the LCD display

Input, Output, Battery, Command, Setting, Maintenance

Communication interface

RS232, RS485, Parallel, LBS, BMS, Dry contact port, Relay card(optional), SNMP card(optional), Battery temperature sensor(optional)

ENVIRONMENTAL

Operating temperature

0℃～40℃

Storage temperature

-25℃～55℃

Humidity range

0～95% (non condensing)

Altitude

<1500m, derating required when >1500m

Noise level

<63dB

<65dB

<70dB

<70dB

<73dB

<74dB

PHYSICAL

Dimension W×D×H (mm)

S

600×850×2000

1200×850×2000

2000×850×2000

2200×850×2000

F

Net weight (kg)

406

440

460

548

959

1060

1422

1658

1880

STANDARDS

Safety

IEC/EN62040-1, IEC/EN62477-1

EMC

IEC/EN62040-2 (IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8)
