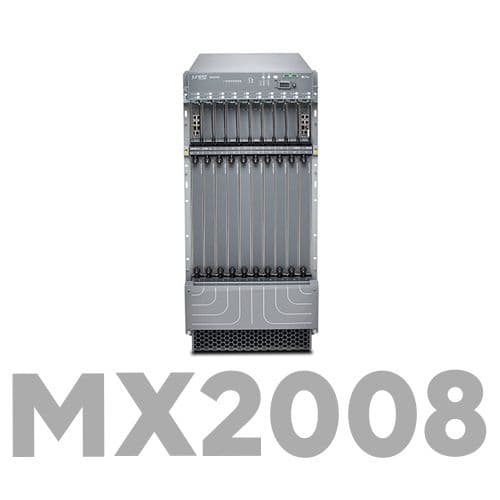

Provides 40 Tbps of system capacity and support for up to 400 100GbE, 160 200GbE, or 80 400GbE interfaces. Combines support for the carrier-grade Junos operating system with a fully redundant architecture. Addresses core, edge, and converged edge and core applications with its ultra-high density and performance. Delivers outstanding scale for long-term traffic growth as well as an upgrade path for existing MX Series.

Provides 40 Tbps of system capacity and support for up to 400 100GbE, 160 200GbE, or 80 400GbE interfaces.

Combines support for the carrier-grade Junos operating system with a fully redundant architecture.

Addresses core, edge, and converged edge and core applications with its ultra-high density and performance.

Delivers outstanding scale for long-term traffic growth as well as an upgrade path for existing MX Series.

Specifications

System capacity

40 Tbps

Switch fabric capacity per slot

4 Tbps

Dense Port Concentrators (DPCs) and/or Modular Port Concentrators (MPCs) per chassis

10 (MPC only)

Chassis per rack

2

Dimensions (W x H x D)

17.375 x 42 x 34.5 in (44.13 x 106.68 x 87.63 cm)

Maximum weight

915 lbs / 415.04 kg

Mounting

Four-post rack

Power options

AC/DC: -40 to -72 V DC

200-240 V AC

Operating temperature

32° to 115° F (0° to 46° C) at sea level

Humidity

5 to 90 percent noncondensing

Altitude

No performance degradation to 13,000 ft/4000 m
