Increase scale through 80 Gbps. Seamless integration with SDN controllers. Ability to incorporate services inline. At 2 U, the full-featured MX5 is an ideal choice for space- and power-constrained facilities.

Increase scale through 80 Gbps.

Seamless integration with SDN controllers.

Ability to incorporate services inline.

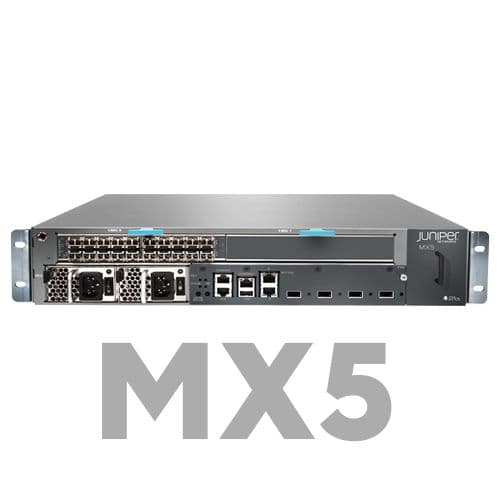

At 2 U, the full-featured MX5 is an ideal choice for space- and power-constrained facilities.

Specifications

System capacity

20 Gbps

Switch fabric capacity per slot

N/A

DPCs and/or MPCs per chassis

One MIC slot with 20 port Gigabit Ethernet MIC enabled; separately purchased upgrade licenses permit use of second MIC slot and four 10-Gigabit Ethernet (10GbE) interfaces.

Chassis per rack

24

Dimensions (W x H x D)

Chassis: 17.5 x 3.5 x 23.5 in (44.5 x 8.9 x 59.6 cm)

Maximum weight

30 lb/13.7 kg

Mounting

Front or center

Power options

AC/DC: -40 to -72 VDC

100-240 VAC

Operating temperature

32° to 115° F (0° to 46° C) at sea level

Humidity

5 to 90 percent non-condensing

Altitude

No performance degradation to 13,000 ft / 4,000 m
