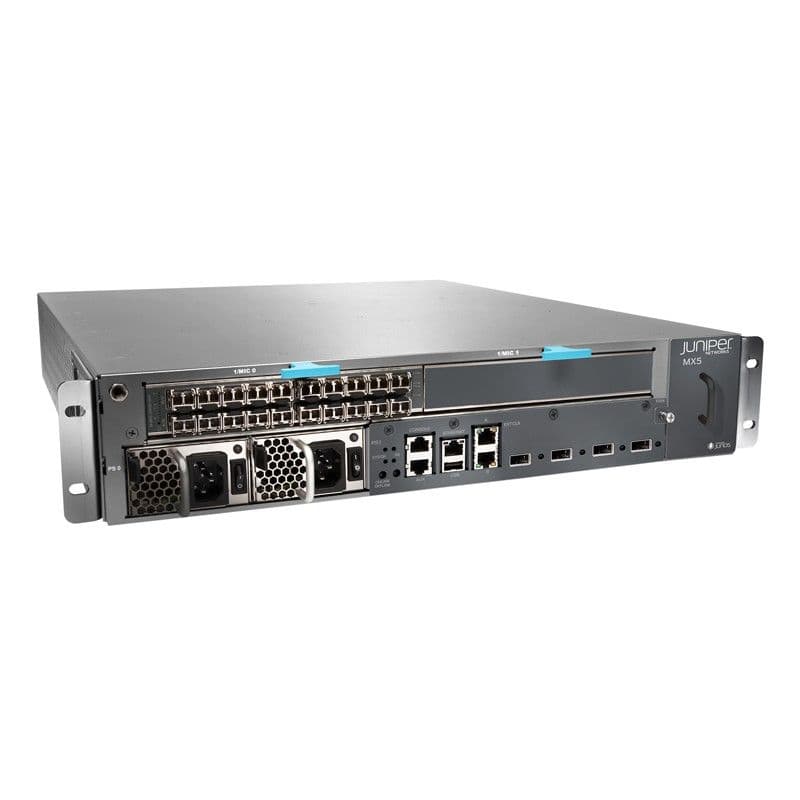

MX5 chassis with timing support—includes dual power supplies, MIC-3D-20GE-SFP, S-MX80-ADV-R, S-MX80-Q, and S-ACCT- JFLOW-IN-5G licenses. Power supply cable needs to be ordered separately.

MX5BASE-T Specification

MX5BASE-T Specification

Description

Juniper MX5 chassis with timing support—includes dual power supplies, MIC-3D-20GE-SFP, S-MX80-ADV-R, S-MX80-Q, and S-ACCTJFLOW-IN-5G licenses. Power supply cable needs to be ordered separately.

System capacity

20 Gbps

Switch fabric capacity per slot

N/A

DPCs and/or MPCs per chassis

One MIC slot with 20 port Gigabit Ethernet MIC enabled; separately purchased upgrade licenses permit use of second MIC slot and four 10-Gigabit Ethernet (10GbE) interfaces.

Chassis per rack

24

Default memory

8 MB boot flash; 4 GB on NAND flash storage; 2 GB of DDR2 RAM

Number of cores

1 core

Dimensions (W x H x D)

Chassis: 17.5 x 3.5 x 23.5 in (44.5 x 8.9 x 59.6 cm)

Mounting

Front or center

Power options

100-240 VAC

Typical power draw (AC)

365W

Operating temperature

32° to 115° F (0° to 46° C) at sea level

Humidity

5 to 90 percent non-condensing

Altitude

No performance degradation to 13,000 ft / 4,000 m

Air flow

Side to side [forced air]

Operating temperature

32° to 115° F (0° to 46° C) at sea level
