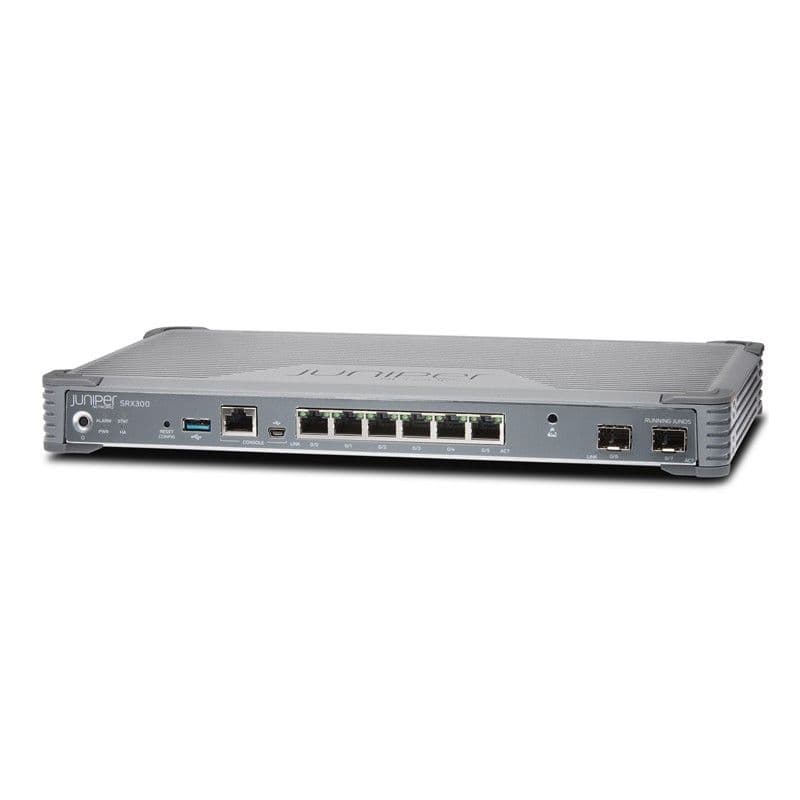

SRX300 Services Gateway includes hardware (8GE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK not included

SRX300-SYS-JB Specification

SRX300-SYS-JB Specification

Description

SRX300 Services Gateway includes hardware (8GE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK not included

Junos OS software version tested

Junos OS 15.1X49

Firewall performance (max)

1 Gbps

IPS performance

100 Mbps

AES256+SHA-1 / 3DES+SHA-1 VPN performance

250 Mbps

Maximum concurrent sessions

64,000

New sessions/second (sustained, TCP, 3-way)

5000

Maximum security policies

1000

Maximum security intelligence data feed entries in firewall rules database

N/A

Total onboard ports

8x1GbE

Onboard RJ-45 ports

6x1GbE

Onboard small form-factor pluggable (SFP) transceiver ports

2x1GbE

MACsec-capable ports

2x1GbE

Out-of-band (OOB) management ports

0

Mini PIM (WAN) slots

0

Console (RJ-45 + miniUSB)

1

USB 3.0 ports (type A)

1

Optional PoE+ ports

N/A

System memory (RAM)

4 GB

Storage (flash)

8 GB

SSD slots

0

Form factor

Desktop

Size (WxHxD)

12.63 x 1.37 x 7.52 in. (32.08 x 3.47 x 19.10 cm)

Redundant PSU

No

Power supply

AC (external)

Average power consumption

24.9 W

Average heat dissipation

85 BTU/h

Maximum current consumption

0.346 A

Airflow/cooling

Fanless

Operational temperature

-4° to 140° F (-20° to 60° C)

Nonoperational temperature

4° to 158° F (-20° to 70° C)

Operating humidity

10% to 90% noncondensing

Nonoperating humidity

5% to 95% noncondensing
