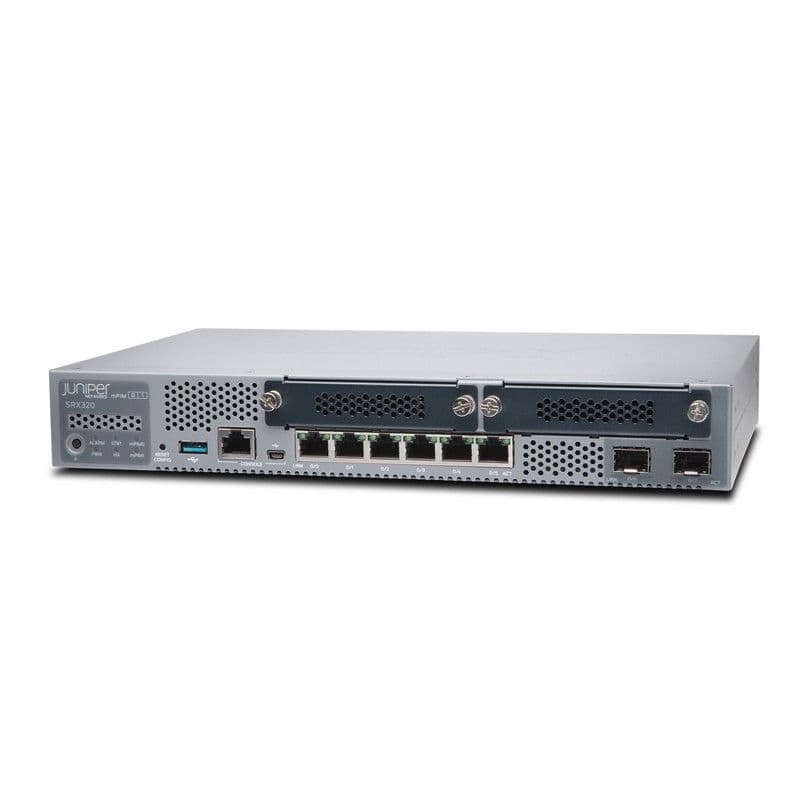

SRX320 Services Gateway includes hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK not included

SRX320-SYS-JB Specification

SRX320-SYS-JB Specification

Description

SRX320 Services Gateway includes hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK not included

Junos OS software version tested

Junos OS 15.1X49

Firewall performance (max)

1 Gbps

IPS performance

100 Mbps

AES256+SHA-1 / 3DES+SHA-1 VPN performance

250 Mbps

Maximum concurrent sessions

64,000

New sessions/second (sustained, TCP, 3-way)

5000

Maximum security policies

1000

Maximum security intelligence data feed entries in firewall rules database

N/A

Total onboard ports

8x1GbE

Onboard RJ-45 ports

6x1GbE

Onboard small form-factor pluggable (SFP) transceiver ports

2x1GbE

MACsec-capable ports

2x1GbE

Out-of-band (OOB) management ports

0

Mini PIM (WAN) slots

2

Console (RJ-45 + miniUSB)

1

USB 3.0 ports (type A)

1

Optional PoE+ ports

6

System memory (RAM)

4 GB

Storage (flash)

8 GB

SSD slots

0

Form factor

Desktop

Size (WxHxD)

11.81 x 1.73 x 7.52 in. (29.99 x 4.39 x 19.10 cm)

Redundant PSU

No

Power supply

AC (external)

Maximum PoE power

180 W

Average power consumption

46 W/221 W

Average heat dissipation

157 BTU/h/755 BTU/h

Maximum current consumption

0.634 A/2.755 A

Airflow/cooling

Front to back

Operational temperature

32° to 104° F (0° to 40° C)

Nonoperational temperature

4° to 158° F (-20° to 70° C)

Operating humidity

10% to 90% noncondensing

Nonoperating humidity

5% to 95% noncondensing
