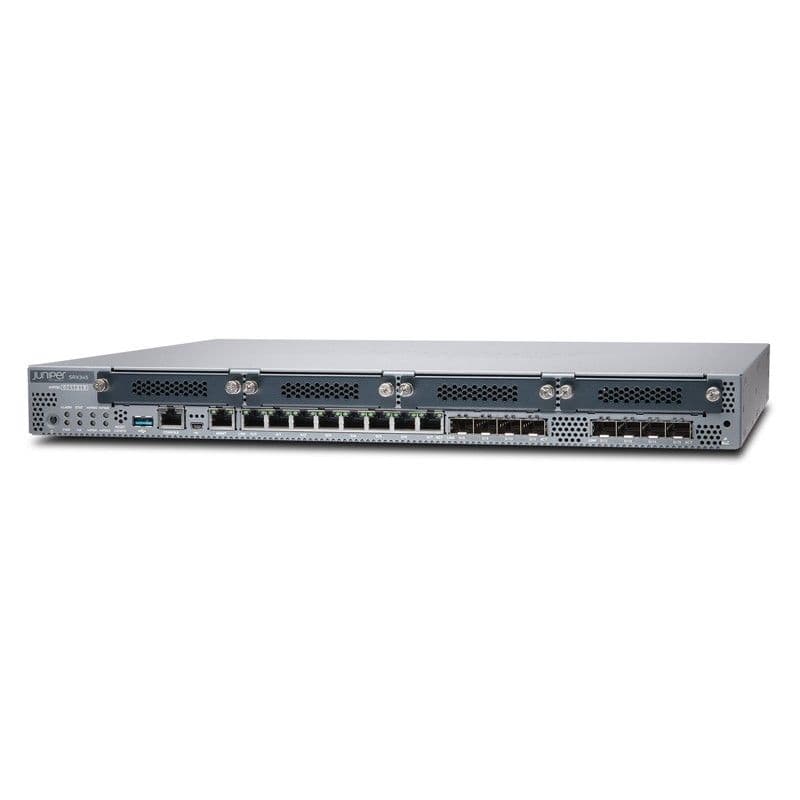

SRX345 (Hardware Only, require SRX345-JSB or SRX345-JSE to complete the System) with 16GE (w 8x SFP), 4G RAM, 8G Flash and 4x MPIM slots. Includes internal power supply, cable and RMK

SRX345 Specification

SRX345 Specification

Description

SRX345 (Hardware Only, require SRX345-JSB or SRX345-JSE to complete the System) with 16GE (w 8x SFP), 4G RAM, 8G Flash and 4x MPIM slots. Includes internal power supply, cable and RMK

Junos OS software version tested

Junos OS 15.1X49

Firewall performance (max)

5 Gbps

IPS performance

500 Mbps

AES256+SHA-1 / 3DES+SHA-1 VPN performance

800 Mbps

Maximum concurrent sessions

375,000

New sessions/second (sustained, TCP, 3-way)

20,000

Maximum security policies

4000

Maximum security intelligence data feed entries in firewall rules database

N/A

Total onboard ports

16x1GbE

Onboard RJ-45 ports

8x1GbE

Onboard small form-factor pluggable (SFP) transceiver ports

8x1GbE

MACsec-capable ports

16x1GbE

Out-of-band (OOB) management ports

1x1GbE

Mini PIM (WAN) slots

4

Console (RJ-45 + miniUSB)

1

USB 3.0 ports (type A)

1

Optional PoE+ ports

0

System memory (RAM)

4 GB

Storage (flash)

8 GB

SSD slots

1

Form factor

1U

Size (WxHxD)

17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm) / 17.36 x 1.72 x 18.7 in. (44.09 x 4.36 x 47.5 cm)

Redundant PSU

Yes

Power supply

AC (internal) / DC (internal)

Maximum PoE power

N/A

Average power consumption

122 W

Average heat dissipation

420 BTU/h

Maximum current consumption

1.496 A / 6A @ -48 VDC12

Acoustic noise level

45.5 dBA

Airflow/cooling

Front to back

Operational temperature

-22° to 131° F (-30° to 55° C)

Nonoperational temperature

4° to 158° F (-20° to 70° C)

Operating humidity

10% to 90% noncondensing

Nonoperating humidity

5% to 95% noncondensing
