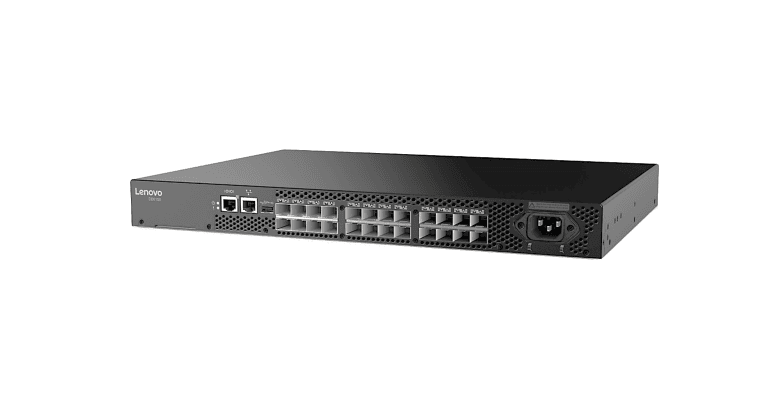

Models The following table lists the ThinkSystem DB610S FC SAN Switch models. Part number Machine Type-Model Feature code 6559F1A 6559-HC4 B4QB 6559F4A 6559-HC7 BCA4 6559F2A 6559-HC5 B4QC

Models

The following table lists the ThinkSystem DB610S FC SAN Switch models.

Part number

Machine Type-Model

Feature code

6559F1A

6559-HC4

B4QB

6559F4A

6559-HC7

BCA4

6559F2A

6559-HC5

B4QC

System specifications

The following table lists the ThinkSystem DB610S system specifications.

Table 1. System specifications

Component

Specification

Machine type

6559

Form factor

Standalone or 1U rack mount

Ports

24x SFP+ ports:

Model HC4: 24 ports activated and 24x 16 Gb FC SWL SFP+ transceivers included.

Model HC7: 8 ports activated and 8x 32 Gb FC SWL SFP+ transceivers included.

Model HC5: 8 ports activated and 8x 16 Gb FC SWL SFP+ transceivers included.

Up to two optional 8-port activation license packs or bundles (8-port license pack and 8x 16 Gb or 8x 32 Gb FC SWL SFP+ transceivers) for Models HC5, and HC7.

Media types

32 Gb FC SFP+ transceivers: short wavelength (SWL), long wavelength (LWL).

16 Gb FC SFP+ transceivers: SWL, LWL, extended long wavelength (ELWL).

Port speeds

32 Gb FC SFP+ transceivers: 32/16/8 Gbps auto-sensing.

16 Gb FC SFP+ transceivers: 16/8/4 Gbps auto-sensing.

FC port types

Full Fabric mode: F_Port, M_Port (Mirror Port), E_Port, D_Port (Diagnostic Port).

Access Gateway mode: F_Port and NPIV-enabled N_Port.

Data traffic types

Unicast (Class 2 and Class 3), multicast (Class 3 only), broadcast (Class 3 only).

Classes of service

Class 2, Class 3, Class F (inter-switch frames).

Standard features

Full Fabric mode, Access Gateway, Advanced Zoning, Fabric Services, Adaptive Networking, Advanced Diagnostic Tools.

Optional features

Enterprise Bundle (ISL Trunking, Fabric Vision, Extended Fabric).

Performance

Non-blocking architecture with wire-speed forwarding of traffic:

4GFC: 4.25 Gbit/sec line speed, full duplex

8GFC: 8.5 Gbit/sec line speed, full duplex

16GFC: 14.025 Gbit/sec line speed, full duplex

32GFC: 28.05 Gbit/sec line speed, full duplex

Aggregated throughput: 768 Gbps

Up to 0.9 µs local switching latency

Scalability

Maximum number of switches in the fabric: 239

Maximum frame size: 2,112-byte payload

Maximum number of frame buffers per switch: 2,000

Maximum number of ports per ISL trunk: 8x SFP+ (ISL Trunking license is included in the Enterprise Bundle)

Cooling

Four fixed fans with N+1 cooling redundancy. Non-port to port side airflow.

Power supply

One fixed 150 W AC (100 – 240 V) power supply (IEC 320-C14 connector).

Hot-swap parts

SFP+ transceivers.

Management ports

One 10/100/1000 Mb Ethernet port (UTP, RJ-45); one RS-232 port (RJ-45); one USB port (for additional firmware/log/configuration files storage).

Management interfaces

EZSwitch Setup; Web-based GUI (Web Tools); Command Line Interface (CLI); SMI-S; SNMP; REST API. Optional Brocade SANnav Management Portal and SANnav Global View.

Security features

Secure Socket Layer (SSL); Secure Shell (SSH); Secure Copy (SCP); Secure FTP (SFTP); user level security, Role-based Access Control (RBAC); LDAP, RADIUS, and TACACS+ authentication; access control lists (ACLs)

Hardware warranty

One-year customer-replaceable unit limited warranty with 9×5 next business day parts delivered.

Service and support

Optional service upgrades are available through Lenovo Services: 9×5 next business day onsite response, 24×7 2-hour or 4-hour onsite response, 24×7 6-hour or 24-hour committed service repair, up to 5 years of warranty coverage, 1-year or 2-year post-warranty extensions, and Basic Hardware Installation Services.

Firmware entitlement

One-year (Models HC4, HC5, and HC7) firmware entitlement and support license is included. Firmware entitlement extension licenses for Models HC4, HC5, and HC7 are included in the warranty service upgrades for Models HC4, HC5, and HC7.

Dimensions

Height: 43 mm (1.7 in.); width: 429 mm (16.9 in.); depth: 307 mm (12.1 in.)

Weight

Empty: 4.2 kg (9.3 lb); Fully configured: 5.8 kg (12.7 lb).
