Models

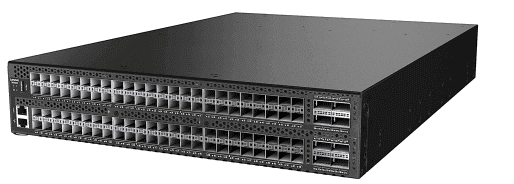

The following table lists the ThinkSystem DB630S FC SAN Switch models.

Part number

Machine Type/Model

Feature code

7D1SA001WW

7D1SCTO1WW

B6DD

7D1SA004WW

7D1SCTO5WW

BCH6

7D1SA005WW

7D1SCTO6WW

BCH7

System specifications

The following table lists the ThinkSystem DB630S system specifications.

Table 1. System specifications

Component

Specification

Machine type

7D1S

Form factor

Standalone or 2U rack mount

Ports

96x SFP+ ports:

Model CTO1: 48 ports activated and no transceivers included.

Model CTO5: 48 ports activated and 48x 32 Gb FC SWL SFP+ transceivers included; up to two optional 24-port activation licenses or bundles (24-port licenses and 24x 32 Gb FC SWL SFP+ transceivers).

Model CTO6: 96 ports activated and 96x 32 Gb FC SWL SFP+ transceivers included.

8x QSFP+ ports (require an optional activation license or bundle [32-port license pack and 8x 128 Gb FC SWL SFP+ V2 transceivers]).

Media types

128 Gb (4x 32 Gb) FC QSFP+: short wavelength (SWL), long wavelength (LWL).

4x 16 Gb FC QSFP+: SWL.

32 Gb FC SFP+: SWL, LWL.

16 Gb FC SFP+: SWL, LWL, extended long wavelength (ELWL).

10 Gb FC SFP+: SWL, LWL.

Port speeds

128 Gb (4x 32 Gb) FC SWL QSFP+: 128 Gbps,  4x 32 Gbps, or 4x 16 Gbps.

128 Gb (4x 32 Gb) FC LWL QSFP+: 128 Gbps or 4x 32 Gbps fixed.

4x 16 Gb FC QSFP+: 4x 16/8/4 Gbps auto-sensing.

32 Gb FC SFP+: 32/16/8 Gbps auto-sensing.

16 Gb FC SFP+: 16/8/4 Gbps auto-sensing.

10 Gb FC SFP+: 10 Gbps fixed.

Note: With Fabric OS 9.0 and later, the 4 Gbps port speed is supported only on the F_Port and N_Port port types.

FC port types

F_Port, E_Port, EX_Port (Requires an optional Integrated Routing License), M_Port (Mirror Port), D_Port (Diagnostic Port).

Data traffic types

Unicast (Class 2 and Class 3), multicast (Class 3 only), broadcast (Class 3 only).

Classes of service

Class 2, Class 3, Class F (inter-switch frames).

Standard features

Full Fabric mode, Advanced Zoning, Fabric Services, 10 Gb FC, Adaptive Networking, Advanced Diagnostic Tools, Virtual Fabrics, In-flight Compression, In-flight Encryption.

Optional features

Enterprise Bundle (ISL Trunking, Fabric Vision, Extended Fabric) and Integrated Routing.

Note: Model CTO6 comes with the Enterprise Bundle license included.

Performance

Non-blocking architecture with wire-speed forwarding of traffic:

4GFC: 4.25 Gbit/sec line speed, full duplex.

8GFC: 8.5 Gbit/sec line speed, full duplex.

10GFC: 10.51875 Gbit/sec line speed, full duplex.

16GFC: 14.025 Gbit/sec line speed, full duplex.

32GFC: 28.05 Gbit/sec line speed, full duplex.

128GFCp: 4x 28.05 Gbit/sec line speed, full duplex.

Aggregated throughput: 4 Tbps.

Less than 780 ns port-to-port local switching latency (including FEC) (1 µs per node with compression or encryption).

Scalability

Maximum number of switches in the fabric: 239.

Maximum frame size: 2112-byte payload.

Maximum number of frame buffers per switch: 15 360.

Maximum number of ports per ISL trunk: 8x SFP+ or 2x QSFP+ (Up to 256 Gbps; ISL Trunking license is included in the Enterprise Bundle).

Cooling

Three hot-swap system fan assembly units (two fans in each unit) with N+1 cooling redundancy. Non-port to port side airflow.

Power supply

Two redundant hot-swap 1500 W AC (100 – 240 V) power supplies (IEC 320-C14 connector).

Hot-swap parts

SFP+/QSFP+ transceivers, fan assembly units, and power supplies.

Management ports

One 10/100/1000 Mb Ethernet port (UTP, RJ-45); one RS-232 port (RJ-45); one USB port (for additional firmware/log/configuration files storage).

Management interfaces

EZSwitchSetup; Web-based GUI (Web Tools); Command Line Interface (CLI); SMI-S; SNMP; REST API. Optional Brocade SANnav Management Portal and SANnav Global View.

Security features

Secure Socket Layer (SSL); Secure Shell (SSH); Secure Copy (SCP); Secure FTP (SFTP); user level security, Role-based Access Control (RBAC); LDAP, RADIUS, and TACACS+ authentication; access control lists (ACLs)

Warranty and support

One-year customer-replaceable unit limited warranty with 9×5 next business day parts delivered. Optional warranty upgrades are available through Lenovo Services: 9×5 next business day onsite response, 24×7 2-hour or 4-hour onsite response, 24×7 6-hour or 24-hour committed service repair (available in select countries), up to 5 years of warranty coverage, 1-year or 2-year post-warranty extensions.

Firmware entitlement

One-year firmware entitlement and support license is included. Firmware entitlement extension licenses are included in the warranty upgrades.

Dimensions

Height: 87 mm (3.4 in.); width: 440 mm (17.3 in.); depth: 610 mm (24.0 in.)

Weight

Empty: 19.05 kg (42.0 lb.); Fully configured: 21.3 kg (47.0 lb.).
