DE2000H/DE4000H/DE6000H models offer advanced enterprise-class data protection, both locally and over long distance, including: Snapshot / Volume copy Asynchronous mirroring Synchronous mirroring (DE4000H and DE6000H only)

DE2000H/DE4000H/DE6000H models offer advanced enterprise-class data protection, both locally and over long distance, including:

Snapshot / Volume copy

Asynchronous mirroring

Synchronous mirroring (DE4000H and DE6000H only)

Tech Specs

ATTRIBUTE

SPECIFICATION

DE6000H

DE4000H

DE2000H

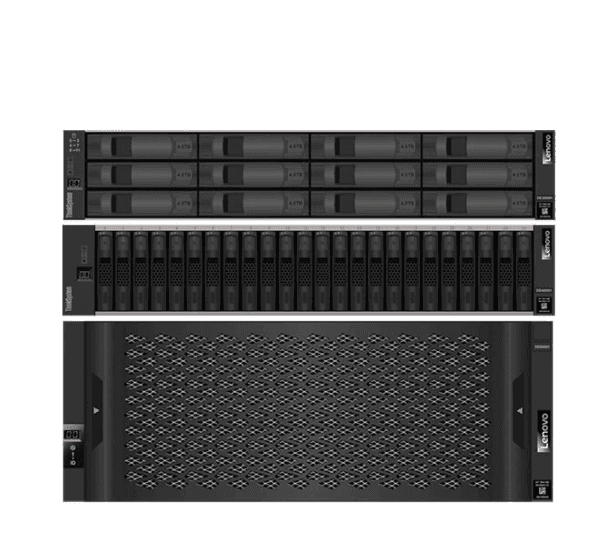

Form Factor

4U, 60 drives

2U, 24 drives

2U, 24 drives

2U, 12 drives

4U, 60 drives

2U, 24 drives

2U, 12 drives

Max Raw Capacity

Support up to 5.76PB

Support up to 2.3PB

Support up to 1.47PB

Maximum Drives

Support up to 480 HDDs / 120 SSDs

Support up to 192 HDDs / 120 SSDs

Support up to 96 HDDs/SSDs

Maximum Expansion

2U24: up to 7 expansions

4U60: up to 3 expansions

2U12 / 2U24: up to 7 expansions

4U60: up to 3 expansions

2U12 / 2U24: up to 3 expansions

System Memory

32GB/128GB

16GB

16GB

Base I/O Port (Per System)

4 x 10Gb iSCSI (optical)

4 x 16Gb FC

4 x 10Gb iSCSI (optical)

4 x 16Gb FC

4 x 10Gb iSCSI (optical)

4 x 16Gb FC

Optional I/O Port (Per System)

8 x 16GB/32GB FC

8 x 10GB/25GB iSCSI optical

8 x 12GB SAS

8 x 16GB/32GB FC

8 x 10GB/25GB iSCSI optical

8 x 12GB SAS

4 x 10GB iSCSI Base-T

4 x 12GB SAS

Optional Software Feature

Drive Encryption, Snapshot upgrade, asynchronous mirroring, synchronous mirroring (DE6000H and DE4000H only)

System Maximums

Hosts/partitions: 512

Volumes: 2,048

Snapshot copies: 2,048

Mirrors: 128

Hosts: 256

Volumes: 512

Snapshot copies: 512

Mirrors: 32

Hosts: 256

Volumes: 512

Snapshot copies: 512

Mirrors: 32
