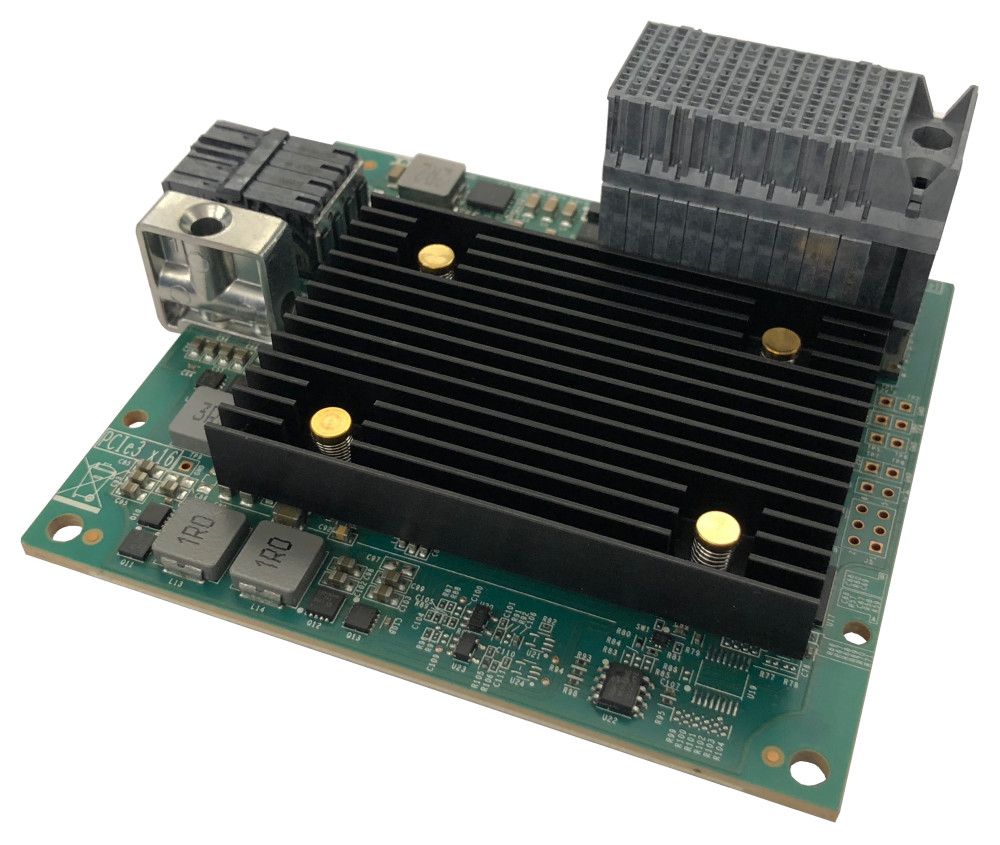

The ThinkSystem QLogic QL45214, QL45212 and QL45262 network adapters for Lenovo Flex System are based on eighth-generation Ethernet technology from Cavium and feature Universal Remote Direct Memory Access (RDMA) to offer concurrent support for RoCE, RoCE v2, and iWARP. The adapters are for customers looking for end-to-end 50 Gb and 25 Gb Ethernet speeds in their Flex System environment as well as those who want to maintain their existing 10Gb networking infrastructure while preparing for future upgrades to 25Gb or 50 Gb network speeds.

Specifications

The QLogic 25 Gb and 50 Gb adapters have the following technical specifications:

Cavium FastLinQ 45000 ASIC

PCIe 3.0 x16 host interface (standard Flex System compute node I/O adapter connection)

Two internal 50GBase-KR SERDES interfaces (each interface is 2 lanes of 25 Gb/s) to the chassis midplane

QL45214: Four 25Gb connections

QL45212 and QL45262: Two 50 Gb connections (each connection is two 25 Gb lanes combined)

All connections are internal to the Flex chassis; no transceivers or cables are required

Supports Message Signal Interrupt (MSI-X)

Support for PXE boot, iSCSI boot and Wake-on-LAN (WOL)

Networking Features

Jumbo frames (up to 9600-Byte)

802.3x flow control

Link Aggregation (IEEE 802.1AX-2008)

Virtual LANs-802.1q VLAN tagging

Configurable Flow Acceleration

Congestion Avoidance

IEEE 1588 and Time Sync

Forward Error Correction Clause 74, support for 25 Gbps and 50 Gbps

Performance

Data Plane Development Kit (DPDK) support

Maximum 60 Million packets per second

Low latency

50Gbps line rate per-port in 50GbE mode (50 GbE adapter)

25Gbps line rate per-port in 25GbE mode

10Gbps line rate per-port in 10GbE mode

Stateless Offload Features

IP, TCP, and user datagram protocol (UDP) checksum offloads

TCP segmentation offload (TSO)

Large send offload (LSO)

Giant send offload (GSO)

Large receive offload (LRO) (Linux)

Receive segment coalescing (RSC) (Windows)

Receive side scaling (RSS)

Transmit side scaling (TSS)

Interrupt coalescing

Virtualization

VMware NetQueue support

Microsoft Hyper-V VMQ support (up to 208 dynamic queues)

Linux Multiqueue support

PCI SIG SR-IOV compliant with support for 192 Virtual Functions

Virtual NIC (vNIC) / Network Partitioning (NPAR) with support for up to 16 physical functions

2-port adapters support 8 vNICs per port

4-port adapter supports 4 vNICs per port

Unified Fabric Protocol (UFP) (16 physical functions)

VXLAN-aware stateless offloads

NVGRE-aware stateless offloads

Geneve-aware stateless offloads

IP-in-IP-aware stateless offloads

GRE-aware stateless offloads

Stateless Transport Tunneling

Edge Virtual Bridging (EVB)

Per Virtual Function (VF) statistics

VF Receive-Side Scaling (RSS)/Transmit-Side Scaling (TSS)

RDMA over Converged Ethernet (RoCE)

RoCEv1

RoCEv2

iSCSI Extensions for RDMA (iSER)

Internet Wide Area RDMA Protocol (iWARP)

Storage over RDMA: iSER, SMB Direct, and NVMe over Fabrics

NFSoRDMA

Tunneling Offloads:

Virtual Extensible LAN (VXLAN)

Generic Network Virtualization Encapsulation (GENEVE)

Network Virtualization using Generic Routing Encapsulation (NVGRE)

Linux Generic Routing Encapsulation (GRE)

Data Center Bridging (DCB)

Priority-based flow control (PFC; IEEE 802.1Qbb)

Enhanced transmission selection (ETS; IEEE 802.1Qaz)

Quantized Congestion Notification (QCN; IEEE 802.1Qau)

Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz)

Storage offloads (QL45262 adapter only)

FCoE Hardware Offload

iSCSI Hardware Offload

Manageability

QLogic Control Suite integrated network adapter management utility (CLI) for Linux and Windows

QConvergeConsole integrated network management utility (GUI) for Linux and Windows

QConvergeConsole Plug-ins for vSphere (GUI) and ESXCLI plug-in for VMware

QConvergeConsole PowerKit (Windows PowerShell) cmdlets for Linux and Windows

UEFI-based device configuration pages

Native OS management tools for networking

Full support for Lenovo OneCLI, ASU and firmware updates; XClarity Administrator support planned for 3Q/2018

SNIA HBA API v2 and SMI-S APIs

Planned support for PLDM for Redfish Device Enablement standard (DMTF DSP0218)

Planned enhancements to MCTP for increased security when using PCIe VDM (DMTF DSP0238)

Power Saving

ACPI compliant power management

PCI Express eCLKREQ support

PCI Express unused lane powered down

Ultra low-power mode

Power Management (PM) Offload
