Key Applications Virtualization Enterprise Server Data Center Optimized Application and data serving Model analysis Compute Intensive Applications Key Features Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors;CPU TDP supports Up to 270W TDP;3 UPI up to 11.2 GT/s Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz ;- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only) 4 PCIe 4.0 x16 Low Profile (LP); 2 PCIe 4.0 x8 Low Profile (LP) Dual Gigabit LAN with Intel® i350 Ethernet Controller 3 heavy duty Hot-swappable 13.5K RPM Middle Cooling Fans with optimal fan speed control;1 air shroud 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc 1 rear VGA, 1 Type A port, 2 COM Ports (1 front; 1 rear) and 6 USB ports (2 front USB 2.0 and 4 rear USB 3.0)

Key Applications

Virtualization

Enterprise Server

Data Center Optimized

Application and data serving

Model analysis

Compute Intensive Applications

Key Features

Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors;CPU TDP supports Up to 270W TDP;3 UPI up to 11.2 GT/s

Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz ;- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)

4 PCIe 4.0 x16 Low Profile (LP);

2 PCIe 4.0 x8 Low Profile (LP)

Dual Gigabit LAN with Intel® i350 Ethernet Controller

3 heavy duty Hot-swappable 13.5K RPM Middle Cooling Fans with optimal fan speed control;1 air shroud

1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc

1 rear VGA, 1 Type A port, 2 COM Ports (1 front; 1 rear) and 6 USB ports (2 front USB 2.0 and 4 rear USB 3.0)

Product SKUs

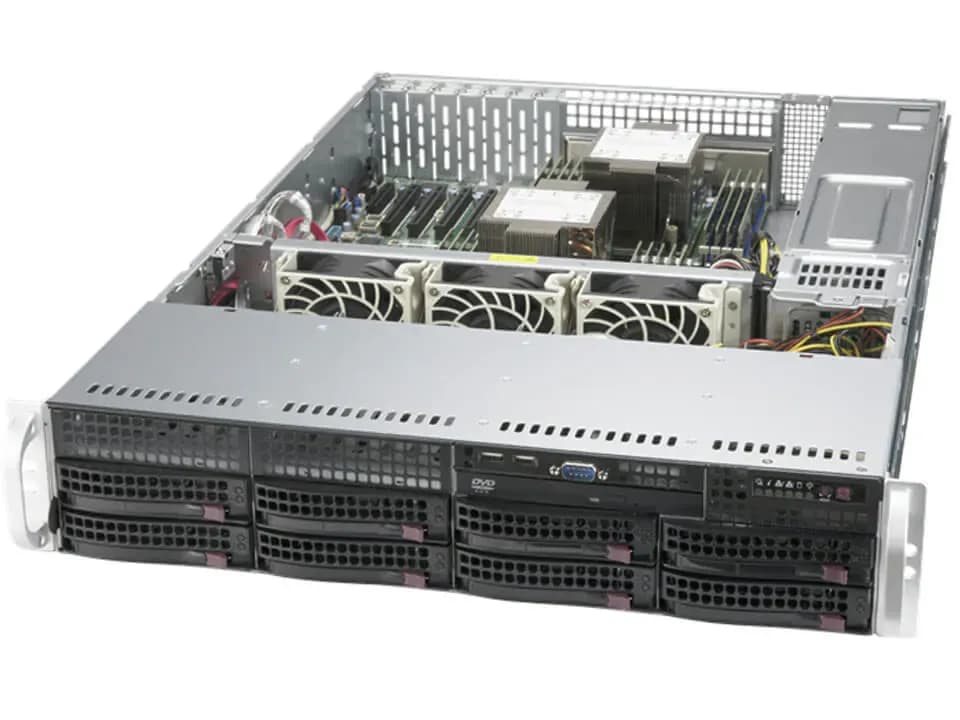

SuperServer SYS-620P-TR

Motherboard

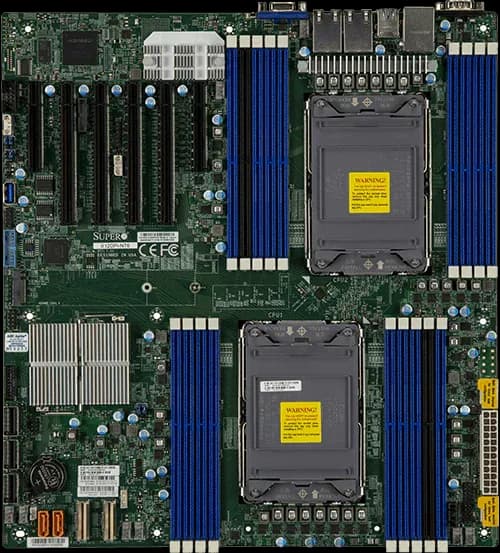

Super X12DPi-N6

Processor

CPU

Dual Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Core Count

Up to 36C/72T; Up to 60MB Cache per CPU

Note

Supports up to 270W TDP CPUs (Air Cooled)

System Memory

Memory

Slot Count: 16 DIMM slots

Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Supports Intel® Optane™ persistent memory 200 series

View Memory Options

On-Board Devices

Chipset

Intel® C621A

Network Connectivity

2 RJ45 1GbE

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated BMC LAN port(s)

USB

2 USB 2.0 port(s) (front)

4 USB 3.0 port(s) (rear)

Video

1 VGA port(s)

DOM

2 SuperDOM (Disk on Module) port(s)

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

ACPI/APM Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-825BTS-R1K23LPP1

Dimensions and Weight

Height

3.5″ (89 mm)

Width

17.2″ (437 mm)

Depth

25.5″ (647 mm)

Package

11.4″ (H) x 26.7″ (W) x 34.5″ (D)

Weight

Gross Weight: 69 lbs (31.2 kg)

Net Weight: 36.38 lbs (16.5 kg)

Available Color

Black

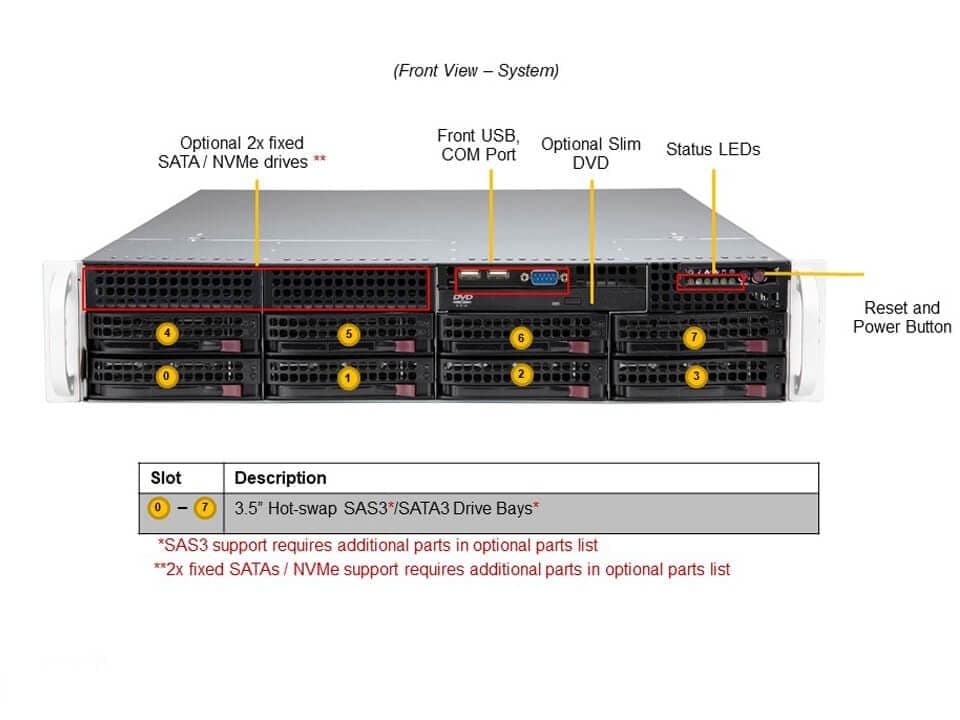

Front Panel

LED

HDD activity

Network activity

Power status

System information (overheat/UID)

Buttons

Power On/Off

System Reset

Expansion Slots

PCI-Express (PCIe) Configuration

Default

2 PCIe 4.0 x8 LP slot(s)

4 PCIe 4.0 x16 LP slot(s)

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

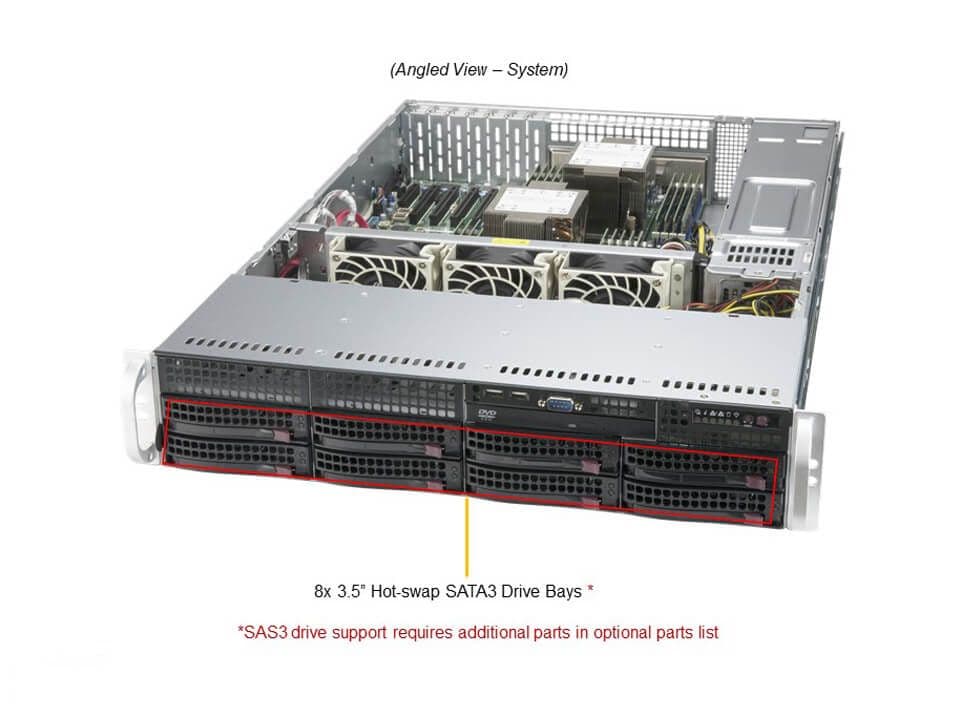

Default: Total 8 bay(s)

8 front hot-swap 3.5″ SAS*/SATA drive bay(s)

Option A: Total 10 bay(s)

8 front hot-swap 3.5″ SAS*/SATA drive bay(s)

2 front fixed 3.5″ NVMe*/SATA* drive bay(s)

(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

View Drive Options

M.2

1 M.2 NVMe slot(s) (M-key)

View M.2 Options

Peripheral Bays

1 slim DVD bay(s) (optional)

System Cooling

Fans

3 heavy duty fans with optimal fan speed control

Power Supply

1x 1200W Redundant Titanium Level (96%) power supply

Dimension (WxHxL)

76 x 40 x 336 mm

AC Input

1000W: 100-127Vac / 50-60Hz

1200W: 200-240Vac / 50-60Hz

1200W: 200-240Vdc / 50-60Hz (for CCC only)

+12V

Max: 83A / Min: 0A (100Vac-127Vac)

Max: 100A / Min: 0A (200Vdc-240Vdc)

Max: 100A / Min: 0A (200Vac-240Vac)

5V SB

Max: 4A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

ROHS

RoHS Compliant

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (Non-Condensing)

Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
