Key Applications

Virtualization

Software-defined Storage

High Performance Computing

Cloud Computing

Enterprise Server

Key Features

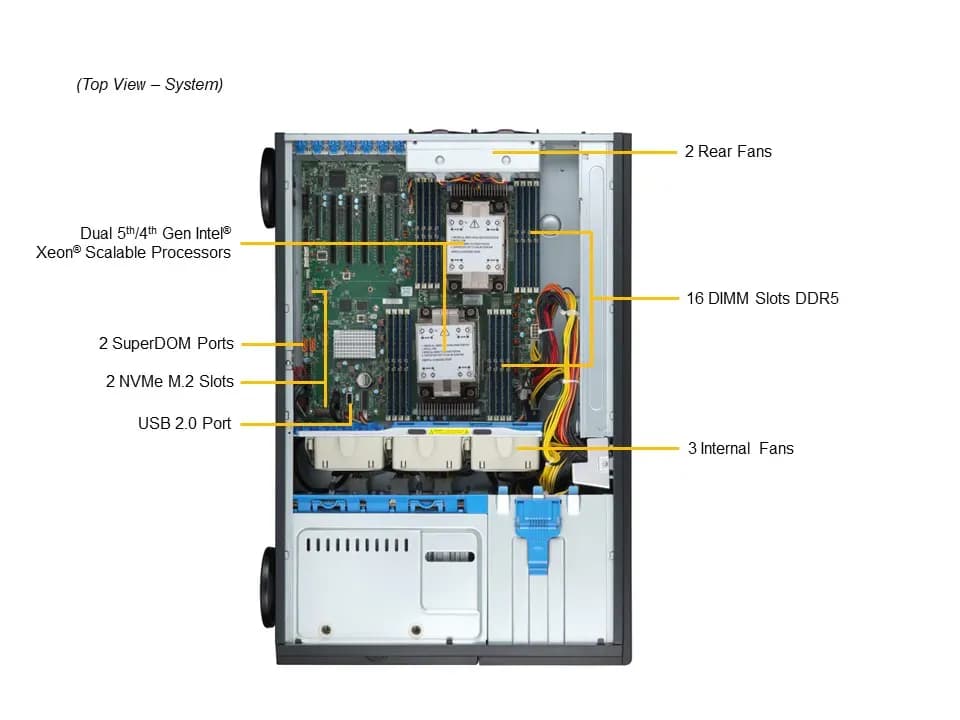

Dual Intel® Xeon® 6 6700 series processors with E-cores

32 DIMM slots supporting up to 2TB of memory

3 PCIe 5.0 x16 slots with support for Network/Storage/GPU/Accelerator cards

Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)

8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card

Product SKUs

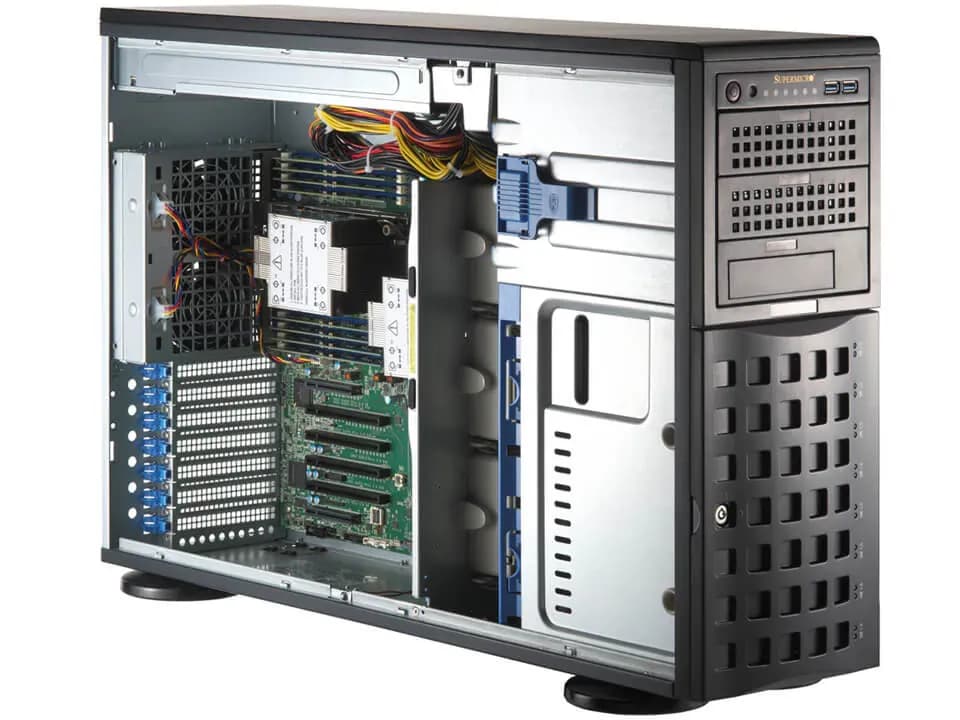

SuperServer SYS-741P-TRT

Motherboard

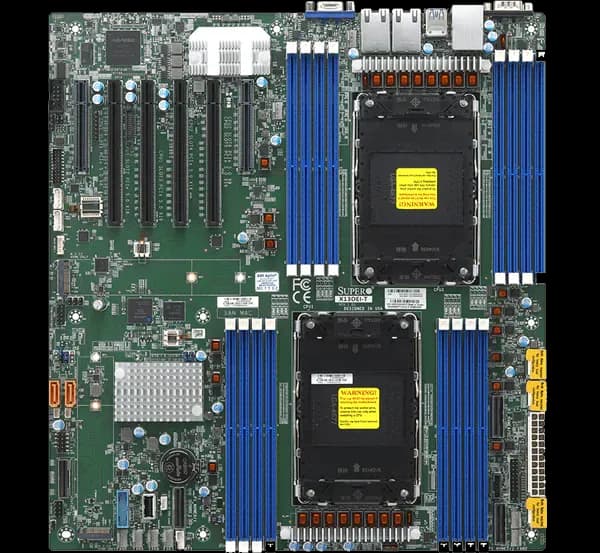

Super X13DEI-T

Processor

CPU

Dual Socket E (LGA-4677)

5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Note

Supports up to 300W TDP CPUs (Air Cooled)

System Memory

Memory

Slot Count: 16 DIMM slots

Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

View Memory Options

On-Board Devices

SATA

SATA (6Gbps)

Chipset

Intel® C741

Network Connectivity

2 RJ45 10GbE

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated BMC LAN port(s)

USB

2 USB 3.0 port(s) (front)

4 USB 3.0 port(s) (rear)

Video

1 VGA port(s)

Serial

1 COM port(s) (Rear)

DOM

2 SuperDOM (Disk on Module) port(s)

TPM

1 TPM Onboard/port 80

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

ACPI/APM Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

Tower/4U

Model

CSE-745BTS-R1K23BP

Dimensions and Weight

Height

17.8″ (452 mm)

Width

7″ (178 mm)

Depth

25.5″ (647 mm)

Package

24.6″ (H) x 14″ (W) x 31.3″ (D)

Weight

Gross Weight: 73.5 lbs (33.9 kg)

Net Weight: 56 lbs (25.9 kg)

Available Color

Black

Front Panel

LED

HDD activity

Network activity

Power status

System information (overheat/UID)

Buttons

Power On/Off

System Reset

Expansion Slots

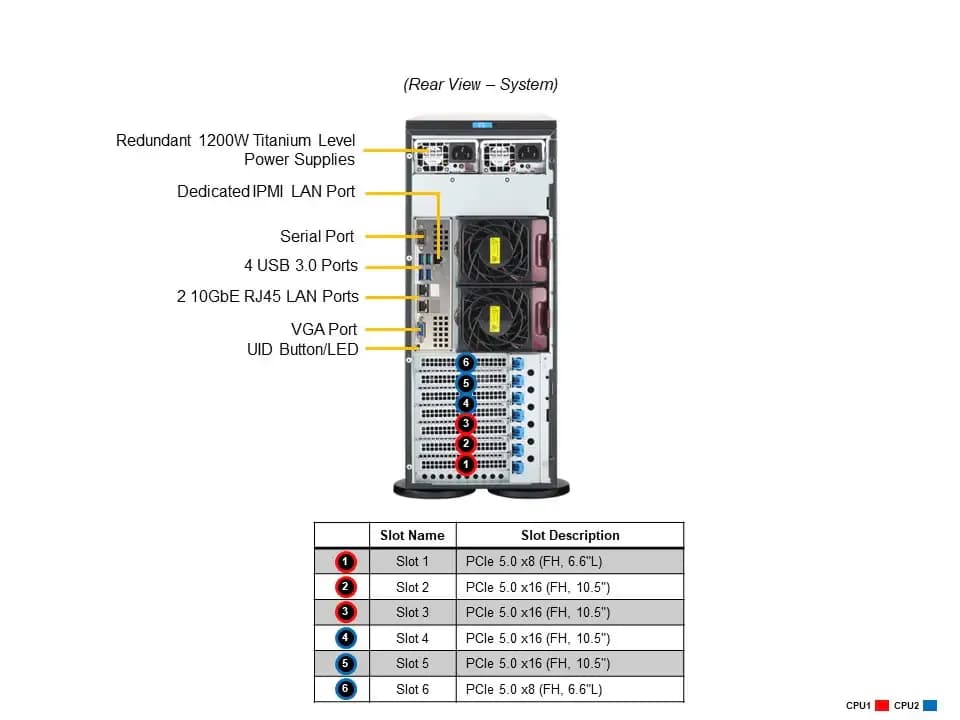

PCI-Express (PCIe) Configuration

Default

2 PCIe 5.0 x8 FHFL slot(s)

4 PCIe 5.0 x16 FHFL slot(s)

View AOC Options

M.2

2 M.2 PCIe 4.0 x2 NVMe slot(s) (M-key)

Drive Bays / Storage

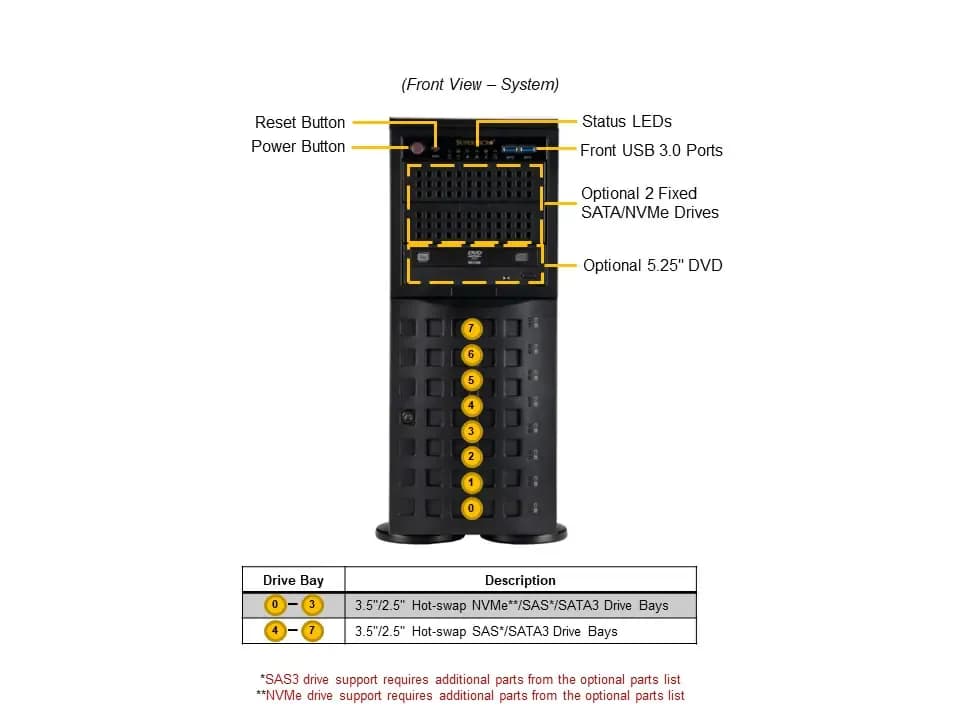

Drive Bays Configuration

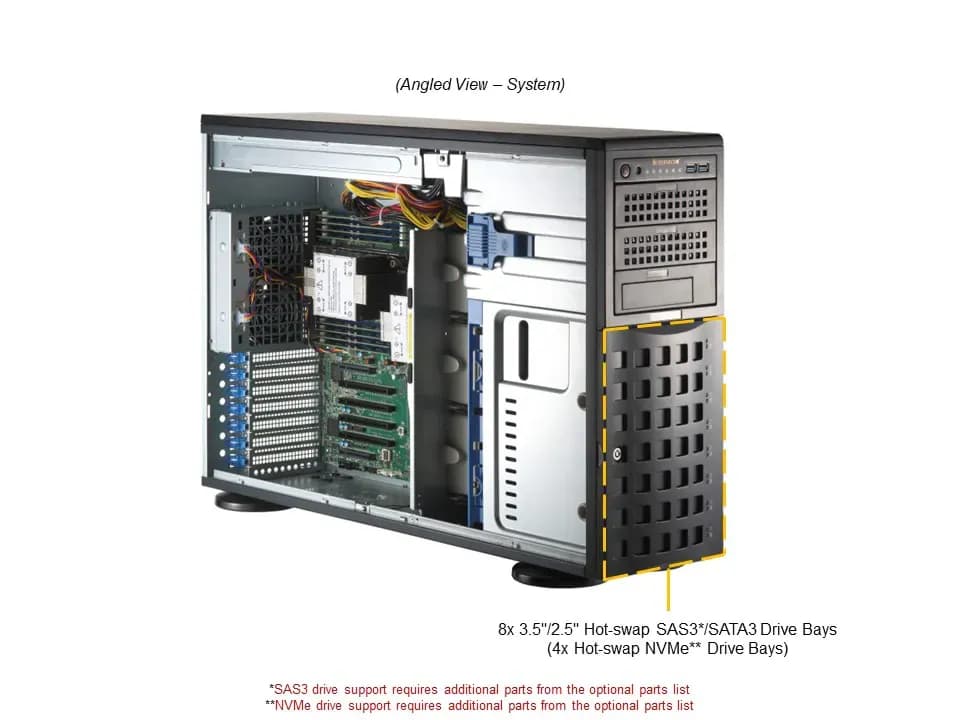

Default: Total 8 bay(s)

4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bay(s)

4 front hot-swap 3.5″ SAS*/SATA drive bay(s)

Option A: Total 8 bay(s)

4 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bay(s)

4 front hot-swap 2.5″ SAS*/SATA drive bay(s)

(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

View Drive Options

M.2

2 M.2 NVMe slot(s) (M-key)

View M.2 Options

Peripheral Bays

3 5.25″ DVD bay(s) (optional)

System Cooling

Fans

3 middle Fan(s)

2 rear Fan(s)

Power Supply

1x 1200W Redundant Titanium Level (96%) power supply

Dimension (WxHxL)

76 x 40 x 336 mm

AC Input

1000W: 100-127Vac / 50-60Hz

1200W: 200-240Vac / 50-60Hz

1200W: 200-240Vdc / 50-60Hz (for CCC only)

+12V

Max: 83A / Min: 0A (100Vac-127Vac)

Max: 100A / Min: 0A (200Vac-240Vac)

5V SB

Max: 4A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

ROHS

RoHS Compliant

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 80% (non-condensing)

Non-operating Relative Humidity: 8% to 90% (non-condensing)
